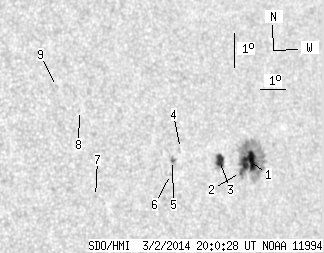

SDO HMI 2014-03-02 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.00 | 96.55 | 18.57 | 66.45 | -7.38 | 152.66 | 44.24 | 266.86 | 0.6952 | 557.0 | 267.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.95 | 79.30 | 12.42 | 54.95 | -7.35 | 153.08 | 44.66 | 266.88 | 0.7006 | 923.7 | 295.2 | |
| 1.29 | -1.00 | 0.89 | -1.00 | -7.70 | 152.75 | 44.33 | 266.39 | 0.6962 | 800.6 | 999999 | |
| 7.16 | 11.30 | 4.86 | 7.66 | -7.42 | 151.84 | 43.42 | 266.86 | 0.6849 | 832.1 | 617.2 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -7.20 | 150.22 | 41.80 | 267.30 | 0.6644 | -451.0 | -437.4 | |
| 0.60 | 2.50 | 0.40 | 1.65 | -7.58 | 149.94 | 41.52 | 266.74 | 0.6605 | -674.7 | -525.0 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -8.00 | 149.91 | 41.49 | 266.11 | 0.6599 | -658.0 | -559.1 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -8.88 | 147.07 | 38.65 | 264.81 | 0.6219 | 635.0 | 541.4 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -6.39 | 146.19 | 37.78 | 268.93 | 0.6112 | -533.0 | -421.0 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -5.74 | 145.28 | 36.86 | 270.10 | 0.5991 | -592.0 | -517.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
