SDO HMI 2014-03-02 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.64 | 232.85 | 25.30 | 163.50 | -1.34 | 152.69 | 44.82 | 275.40 | 0.7095 | -304.0 | -198.4 | |
|
previous
or next observation for the same group /

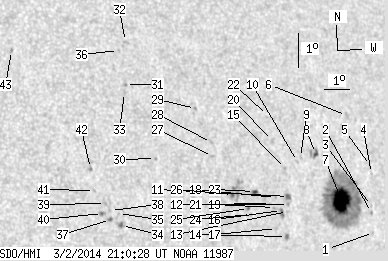

back to the solar disc SDO HMI 2014-03-02 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.38 | -2.28 | 155.43 | 47.56 | 273.54 | 0.7412 | 579.0 | 507.5 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -1.69 | 155.32 | 47.45 | 274.35 | 0.7409 | 248.0 | 287.4 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -1.48 | 155.31 | 47.45 | 274.63 | 0.7412 | 377.0 | 344.4 | |
| 0.00 | 0.52 | 0.00 | 0.38 | -0.52 | 155.30 | 47.43 | 275.91 | 0.7427 | -287.0 | -212.7 | |
| 0.00 | 0.60 | 0.00 | 0.44 | -0.29 | 155.25 | 47.39 | 276.23 | 0.7426 | 408.0 | 313.9 | |
| 0.00 | 2.76 | 0.00 | 2.01 | 1.12 | 154.22 | 46.35 | 278.36 | 0.7336 | -438.0 | -424.1 | |
| 28.13 | 159.20 | 20.18 | 114.26 | -1.45 | 154.01 | 46.14 | 274.93 | 0.7258 | -967.5 | -280.5 | |
| 1.64 | 6.39 | 1.16 | 4.50 | -0.14 | 152.88 | 45.02 | 276.98 | 0.7149 | -645.4 | -575.6 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -0.32 | 152.25 | 44.39 | 276.89 | 0.7069 | -353.0 | -377.2 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -0.45 | 152.13 | 44.26 | 276.74 | 0.7051 | -634.0 | -548.2 | |
| 1.38 | 3.11 | 0.95 | 2.14 | -1.53 | 151.77 | 43.90 | 275.30 | 0.6985 | -835.1 | -622.9 | |
| 0.00 | 1.04 | 0.00 | 0.71 | -1.77 | 151.78 | 43.91 | 274.96 | 0.6982 | -675.0 | -546.5 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -1.98 | 151.74 | 43.87 | 274.67 | 0.6973 | -531.0 | -434.5 | |
| 0.52 | 2.16 | 0.36 | 1.48 | -2.73 | 151.73 | 43.86 | 273.60 | 0.6959 | -667.0 | -526.9 | |
| 0.00 | 0.95 | 0.00 | 0.65 | -0.70 | 151.63 | 43.77 | 276.50 | 0.6985 | -683.0 | -580.4 | |
| 0.52 | 3.19 | 0.36 | 2.19 | -1.97 | 151.49 | 43.63 | 274.73 | 0.6943 | -831.2 | -705.9 | |
| 0.00 | 1.04 | 0.00 | 0.71 | -2.52 | 151.31 | 43.44 | 273.97 | 0.6909 | -634.0 | -562.7 | |
| 0.00 | 0.95 | 0.00 | 0.65 | -1.60 | 151.24 | 43.37 | 275.31 | 0.6917 | -622.0 | -548.1 | |
| 0.00 | 1.21 | 0.00 | 0.82 | -1.91 | 151.20 | 43.34 | 274.88 | 0.6908 | -729.0 | -606.3 | |
| 0.00 | 2.33 | 0.00 | 1.60 | 0.09 | 151.10 | 43.23 | 277.76 | 0.6936 | -579.0 | -461.4 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -1.80 | 151.04 | 43.17 | 275.07 | 0.6889 | -705.0 | -564.6 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 0.82 | 150.90 | 43.03 | 278.86 | 0.6929 | -406.0 | -355.0 | |
| 1.55 | 2.76 | 1.05 | 1.86 | -1.50 | 150.38 | 42.51 | 275.66 | 0.6812 | -786.7 | -658.6 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -2.19 | 150.28 | 42.41 | 274.66 | 0.6785 | -580.0 | -475.6 | |
| 0.35 | 1.04 | 0.23 | 0.70 | -2.03 | 150.15 | 42.28 | 274.94 | 0.6772 | -688.2 | -636.9 | |
| 0.95 | 12.86 | 0.63 | 8.58 | -1.66 | 149.50 | 41.63 | 275.62 | 0.6696 | 711.8 | 54.6 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -0.59 | 148.69 | 40.82 | 277.42 | 0.6615 | 647.0 | 497.3 | |
| 0.00 | 1.04 | 0.00 | 0.68 | -0.18 | 148.65 | 40.78 | 278.05 | 0.6620 | 562.0 | 424.2 | |
| 0.00 | 1.47 | 0.00 | 0.96 | 0.79 | 148.03 | 40.16 | 279.68 | 0.6565 | 626.0 | 528.4 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -0.83 | 146.48 | 38.62 | 277.67 | 0.6320 | 594.0 | 520.8 | |
| 0.00 | 1.47 | 0.00 | 0.93 | 1.30 | 145.36 | 37.49 | 281.38 | 0.6230 | 712.0 | 599.0 | |
| 0.00 | 1.47 | 0.00 | 0.93 | 2.60 | 145.40 | 37.53 | 283.38 | 0.6278 | 572.0 | 478.6 | |
| 0.00 | 1.29 | 0.00 | 0.82 | 1.06 | 145.32 | 37.45 | 281.02 | 0.6217 | 549.0 | 505.5 | |
| 0.60 | 3.11 | 0.38 | 1.94 | -2.93 | 145.25 | 37.38 | 274.65 | 0.6106 | 663.9 | 591.6 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -2.58 | 145.12 | 37.26 | 275.25 | 0.6096 | 519.0 | 512.0 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 2.31 | 145.12 | 37.26 | 283.04 | 0.6232 | 535.0 | 501.6 | |
| 0.00 | 2.07 | 0.00 | 1.29 | -2.78 | 144.83 | 36.96 | 274.99 | 0.6051 | 779.0 | 690.5 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -2.51 | 144.82 | 36.95 | 275.43 | 0.6056 | 677.0 | 630.0 | |
| 0.00 | 1.38 | 0.00 | 0.86 | -2.32 | 144.63 | 36.76 | 275.80 | 0.6034 | 701.0 | 591.2 | |
| 0.00 | 2.24 | 0.00 | 1.39 | -2.62 | 144.53 | 36.66 | 275.32 | 0.6013 | 854.0 | 753.5 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -1.96 | 144.21 | 36.35 | 276.50 | 0.5984 | 681.0 | 594.4 | |
| 0.00 | 1.64 | 0.00 | 1.01 | -1.31 | 144.05 | 36.19 | 277.62 | 0.5977 | 765.0 | 652.2 | |
| 0.00 | 1.55 | 0.00 | 0.93 | 2.02 | 141.21 | 33.34 | 284.32 | 0.5691 | 638.0 | 583.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
