SDO HMI 2014-03-02 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.77 | 93.62 | 17.20 | 65.01 | -7.33 | 152.68 | 44.81 | 266.89 | 0.7023 | 485.2 | 252.6 | |
|
previous
or next observation for the same group /

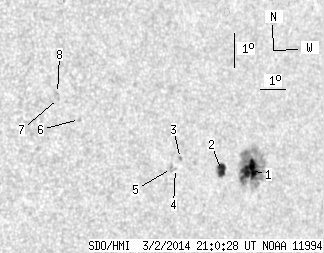

back to the solar disc SDO HMI 2014-03-02 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.52 | 77.06 | 12.24 | 53.92 | -7.35 | 153.13 | 45.26 | 266.83 | 0.7080 | 887.8 | 323.1 | |
| 7.25 | 9.58 | 4.96 | 6.56 | -7.46 | 151.92 | 44.05 | 266.77 | 0.6929 | 808.8 | 591.1 | |
| 0.00 | 1.12 | 0.00 | 0.75 | -7.24 | 150.20 | 42.34 | 267.20 | 0.6712 | -498.0 | -427.5 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -7.56 | 150.04 | 42.17 | 266.74 | 0.6689 | -508.0 | -438.0 | |
| 0.00 | 2.33 | 0.00 | 1.54 | -7.57 | 149.87 | 42.01 | 266.73 | 0.6668 | -729.0 | -566.1 | |
| 0.00 | 1.29 | 0.00 | 0.81 | -6.41 | 146.14 | 38.28 | 268.85 | 0.6180 | -566.0 | -493.5 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -5.85 | 145.30 | 37.43 | 269.86 | 0.6070 | -656.0 | -549.6 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -5.70 | 145.25 | 37.39 | 270.11 | 0.6064 | -666.0 | -602.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
