SDO HMI 2014-03-02 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.46 | 225.77 | 21.95 | 159.83 | -1.38 | 152.60 | 45.28 | 275.24 | 0.7149 | -276.9 | -181.7 | |
|
previous
or next observation for the same group /

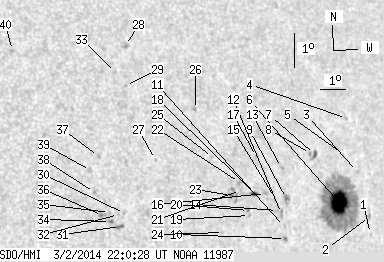

back to the solar disc SDO HMI 2014-03-02 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.71 | -2.26 | 155.41 | 48.10 | 273.46 | 0.7474 | 523.0 | 451.4 | |
| 0.00 | 1.55 | 0.00 | 1.15 | -1.76 | 155.35 | 48.03 | 274.14 | 0.7475 | 158.0 | 181.7 | |
| 0.00 | 1.04 | 0.00 | 0.76 | -0.46 | 154.79 | 47.48 | 275.98 | 0.7433 | 120.0 | 101.3 | |
| 0.00 | 1.47 | 0.00 | 1.08 | 1.08 | 154.32 | 47.01 | 278.15 | 0.7411 | -599.0 | -506.4 | |
| 0.00 | 0.43 | 0.00 | 0.32 | -0.01 | 154.18 | 46.86 | 276.72 | 0.7371 | -296.0 | -289.0 | |
| 26.23 | 155.86 | 19.01 | 113.01 | -1.46 | 154.02 | 46.70 | 274.80 | 0.7325 | -916.1 | -285.7 | |
| 1.47 | 3.80 | 1.05 | 2.71 | -0.12 | 152.93 | 45.61 | 276.87 | 0.7221 | -538.6 | -524.1 | |
| 0.00 | 1.38 | 0.00 | 0.98 | -0.11 | 152.75 | 45.44 | 276.93 | 0.7201 | -738.0 | -609.7 | |
| 0.69 | 4.66 | 0.48 | 3.25 | -1.54 | 151.76 | 44.45 | 275.16 | 0.7052 | -822.2 | -628.3 | |
| 0.00 | 1.47 | 0.00 | 1.02 | -2.74 | 151.76 | 44.44 | 273.47 | 0.7031 | -664.0 | -593.5 | |
| 0.00 | 0.95 | 0.00 | 0.66 | -2.39 | 151.70 | 44.39 | 273.99 | 0.7030 | -465.0 | -453.8 | |
| 0.00 | 2.68 | 0.00 | 1.85 | -2.01 | 151.57 | 44.25 | 274.55 | 0.7019 | -755.0 | -691.5 | |
| 0.00 | 1.38 | 0.00 | 0.96 | -0.64 | 151.54 | 44.22 | 276.49 | 0.7042 | -488.0 | -447.1 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -1.94 | 151.40 | 44.08 | 274.69 | 0.7000 | -680.0 | -633.2 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -1.59 | 151.30 | 43.99 | 275.20 | 0.6995 | -673.0 | -594.7 | |
| 0.00 | 1.98 | 0.00 | 1.36 | -1.47 | 150.89 | 43.57 | 275.46 | 0.6945 | -353.0 | -232.1 | |
| 0.00 | 1.04 | 0.00 | 0.71 | -0.40 | 150.50 | 43.19 | 277.08 | 0.6920 | -727.0 | -580.2 | |
| 1.55 | 3.11 | 1.06 | 2.12 | -1.51 | 150.44 | 43.12 | 275.50 | 0.6888 | -739.7 | -638.1 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -2.18 | 150.25 | 42.94 | 274.57 | 0.6852 | -519.0 | -455.4 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -2.04 | 150.21 | 42.89 | 274.79 | 0.6849 | -648.0 | -597.6 | |
| 0.00 | 1.21 | 0.00 | 0.82 | -1.47 | 149.87 | 42.55 | 275.69 | 0.6817 | -267.0 | -211.6 | |
| 0.00 | 2.24 | 0.00 | 1.51 | -1.23 | 149.82 | 42.51 | 276.05 | 0.6816 | -348.0 | -428.0 | |
| 0.52 | 8.03 | 0.35 | 5.39 | -1.65 | 149.51 | 42.19 | 275.51 | 0.6768 | 770.2 | 422.7 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -2.78 | 149.22 | 41.91 | 273.91 | 0.6711 | -565.0 | -500.6 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -0.58 | 148.73 | 41.42 | 277.28 | 0.6692 | 632.0 | 557.0 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 0.81 | 148.06 | 40.75 | 279.52 | 0.6641 | 562.0 | 449.0 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -0.82 | 146.51 | 39.19 | 277.53 | 0.6396 | 521.0 | 507.9 | |
| 0.00 | 3.28 | 0.00 | 2.10 | 2.52 | 145.41 | 38.09 | 283.03 | 0.6349 | 676.0 | 535.1 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 1.31 | 145.37 | 38.06 | 281.19 | 0.6305 | 682.0 | 632.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -2.52 | 145.36 | 38.04 | 275.15 | 0.6205 | 599.0 | 467.1 | |
| 0.00 | 3.19 | 0.00 | 2.01 | -2.92 | 145.22 | 37.91 | 274.55 | 0.6178 | 689.0 | 552.1 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -2.57 | 145.13 | 37.82 | 275.13 | 0.6173 | 513.0 | 506.1 | |
| 0.00 | 1.29 | 0.00 | 0.82 | 1.67 | 145.00 | 37.69 | 281.89 | 0.6268 | 643.0 | 568.6 | |
| 0.00 | 2.33 | 0.00 | 1.46 | -2.80 | 144.84 | 37.53 | 274.83 | 0.6128 | 753.0 | 676.4 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -2.54 | 144.79 | 37.48 | 275.27 | 0.6127 | 609.0 | 550.9 | |
| 0.00 | 3.11 | 0.00 | 1.94 | -2.65 | 144.54 | 37.22 | 275.15 | 0.6090 | 871.0 | 712.3 | |
| 0.00 | 1.55 | 0.00 | 0.97 | -0.90 | 144.35 | 37.03 | 278.04 | 0.6105 | 649.0 | 521.8 | |
| 0.00 | 1.55 | 0.00 | 0.97 | -1.98 | 144.22 | 36.90 | 276.32 | 0.6060 | 720.0 | 563.7 | |
| 0.00 | 2.50 | 0.00 | 1.55 | -1.34 | 144.06 | 36.74 | 277.42 | 0.6053 | 719.0 | 564.8 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 2.06 | 141.23 | 33.91 | 284.11 | 0.5771 | 766.0 | 645.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
