SDO HMI 2014-03-02 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.76 | 54.98 | 1.51 | 29.51 | 8.47 | 117.68 | 10.36 | 328.60 | 0.3807 | -204.9 | -188.1 | |
|
previous
or next observation for the same group /

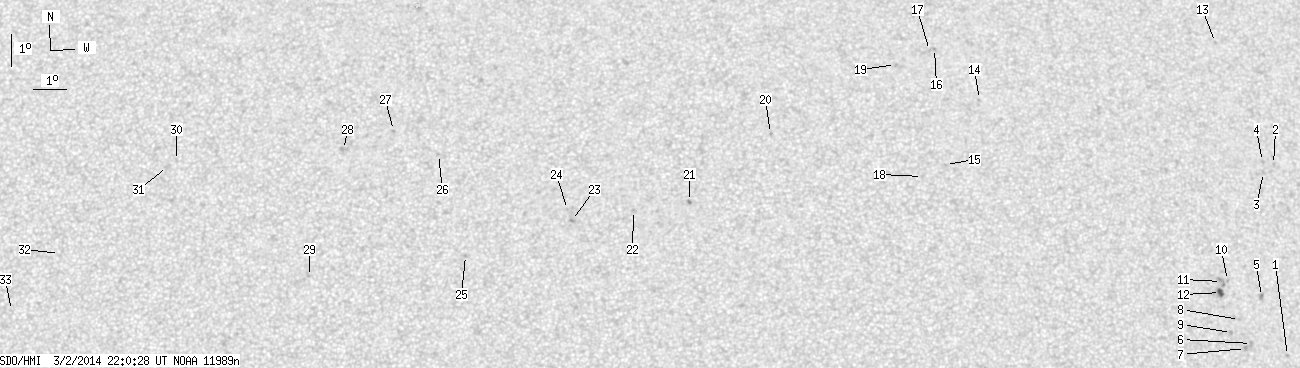

back to the solar disc SDO HMI 2014-03-02 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.66 | 4.45 | 130.24 | 22.93 | 296.38 | 0.4354 | -769.0 | -646.1 | |
| 0.00 | 1.47 | 0.00 | 0.83 | 10.30 | 130.12 | 22.80 | 307.42 | 0.4821 | -628.0 | -527.8 | |
| 0.00 | 1.98 | 0.00 | 1.12 | 10.03 | 129.77 | 22.46 | 307.40 | 0.4754 | -682.0 | -541.4 | |
| 0.00 | 1.55 | 0.00 | 0.88 | 10.38 | 129.76 | 22.45 | 307.98 | 0.4785 | -736.0 | -591.6 | |
| 0.00 | 2.42 | 0.00 | 1.33 | 6.20 | 129.47 | 22.16 | 300.77 | 0.4383 | -733.0 | -624.3 | |
| 0.00 | 2.07 | 0.00 | 1.13 | 4.75 | 129.09 | 21.78 | 298.28 | 0.4216 | -777.0 | -700.2 | |
| 0.00 | 2.24 | 0.00 | 1.22 | 4.59 | 128.90 | 21.58 | 298.17 | 0.4177 | -911.0 | -742.3 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 5.47 | 128.74 | 21.42 | 300.17 | 0.4223 | -772.0 | -621.0 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 5.06 | 128.46 | 21.15 | 299.65 | 0.4153 | -912.0 | -782.4 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 6.64 | 128.40 | 21.09 | 302.95 | 0.4276 | -745.0 | -595.4 | |
| 0.00 | 3.97 | 0.00 | 2.17 | 6.60 | 128.21 | 20.89 | 303.12 | 0.4247 | -887.0 | -782.2 | |
| 2.76 | 4.23 | 1.51 | 2.31 | 6.26 | 128.16 | 20.84 | 302.50 | 0.4212 | -1040.6 | -903.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 14.06 | 128.55 | 21.23 | 315.30 | 0.5015 | -539.0 | -434.4 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 11.96 | 120.84 | 13.53 | 324.89 | 0.3997 | -694.0 | -613.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 9.90 | 119.69 | 12.38 | 324.11 | 0.3618 | -845.0 | -525.5 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 13.54 | 119.52 | 12.21 | 329.72 | 0.4094 | -703.0 | -604.4 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 13.47 | 119.36 | 12.05 | 329.96 | 0.4072 | -794.0 | -633.0 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 9.51 | 118.97 | 11.66 | 325.10 | 0.3498 | 0.0 | -17.0 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 13.00 | 118.28 | 10.96 | 331.67 | 0.3922 | -739.0 | -674.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 10.75 | 114.36 | 7.04 | 338.64 | 0.3322 | 642.0 | 525.0 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 8.61 | 111.87 | 4.55 | 343.96 | 0.2851 | 895.0 | 731.5 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 8.32 | 110.18 | 2.86 | 349.56 | 0.2739 | 815.0 | 648.4 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 8.01 | 108.31 | 1.00 | 356.25 | 0.2648 | 893.0 | 735.4 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 8.35 | 108.20 | 0.88 | 356.76 | 0.2704 | 792.0 | 648.2 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 6.94 | 105.14 | -2.18 | 8.75 | 0.2490 | 790.0 | 604.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 10.07 | 104.31 | -3.01 | 9.85 | 0.3031 | 716.0 | 554.5 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 10.83 | 102.94 | -4.38 | 13.60 | 0.3202 | 768.0 | 638.9 | |
| 0.00 | 4.49 | 0.00 | 2.34 | 10.25 | 101.43 | -5.88 | 18.59 | 0.3179 | 643.0 | 569.4 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 6.35 | 100.46 | -6.85 | 26.86 | 0.2637 | 636.0 | 486.6 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 10.02 | 96.34 | -10.97 | 32.49 | 0.3506 | -45.0 | -25.9 | |
| 0.00 | 3.45 | 0.00 | 1.82 | 9.84 | 96.07 | -11.25 | 33.41 | 0.3505 | 1.0 | 1.8 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 7.25 | 92.83 | -14.49 | 45.22 | 0.3512 | 7.0 | -0.6 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 5.56 | 91.39 | -15.93 | 51.56 | 0.3502 | 18.0 | 13.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
