SDO HMI 2014-03-02 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.52 | 15.52 | 0.31 | 9.11 | -11.77 | 74.37 | -32.40 | 100.65 | 0.5356 | -34.0 | -283.3 | |
|
previous
or next observation for the same group /

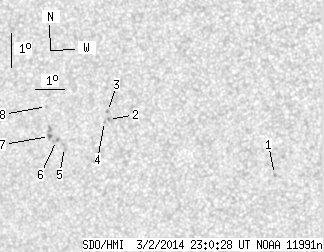

back to the solar disc SDO HMI 2014-03-02 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.48 | -13.35 | 81.07 | -25.70 | 105.69 | 0.4401 | 731.0 | 576.7 | |
| 0.00 | 1.55 | 0.00 | 0.90 | -11.37 | 75.55 | -31.21 | 100.04 | 0.5180 | 810.0 | 712.6 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -11.13 | 75.55 | -31.22 | 99.57 | 0.5178 | 810.0 | 711.1 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -11.42 | 75.40 | -31.36 | 100.11 | 0.5202 | 614.0 | 526.5 | |
| 0.00 | 2.93 | 0.00 | 1.73 | -12.10 | 73.88 | -32.89 | 101.13 | 0.5432 | -745.0 | -641.9 | |
| 0.00 | 1.99 | 0.00 | 1.17 | -11.87 | 73.62 | -33.15 | 100.67 | 0.5466 | -846.0 | -773.4 | |
| 0.52 | 5.52 | 0.31 | 3.27 | -11.74 | 73.38 | -33.38 | 100.38 | 0.5498 | -831.0 | -601.9 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -10.84 | 73.39 | -33.37 | 98.75 | 0.5487 | -568.0 | -510.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
