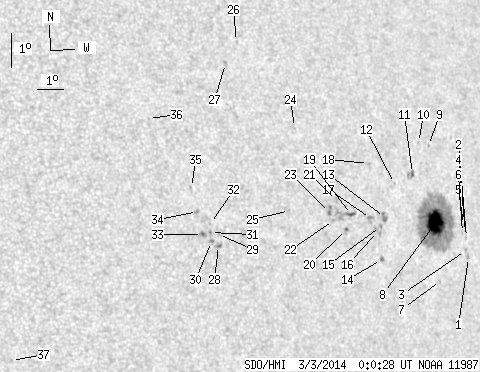

SDO HMI 2014-03-03 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.98 | 222.53 | 24.20 | 161.25 | -1.47 | 152.84 | 46.62 | 274.82 | 0.7309 | -219.9 | -206.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 1.25 | -2.39 | 155.55 | 49.34 | 273.08 | 0.7613 | 574.0 | 459.1 | |
| 0.00 | 0.60 | 0.00 | 0.46 | -1.80 | 155.44 | 49.22 | 273.87 | 0.7609 | 295.0 | 278.6 | |
| 0.00 | 1.21 | 0.00 | 0.92 | -2.19 | 155.41 | 49.19 | 273.36 | 0.7600 | 368.0 | 350.7 | |
| 0.00 | 0.86 | 0.00 | 0.66 | -1.63 | 155.38 | 49.17 | 274.11 | 0.7606 | 231.0 | 194.8 | |
| 0.00 | 0.60 | 0.00 | 0.46 | -1.43 | 155.29 | 49.07 | 274.39 | 0.7598 | 263.0 | 239.7 | |
| 0.00 | 0.95 | 0.00 | 0.72 | -1.67 | 155.25 | 49.03 | 274.08 | 0.7590 | -258.0 | -181.3 | |
| 0.00 | 0.78 | 0.00 | 0.58 | -3.19 | 154.33 | 48.11 | 272.23 | 0.7462 | 177.0 | 178.0 | |
| 28.40 | 151.84 | 21.02 | 112.44 | -1.48 | 154.03 | 47.81 | 274.55 | 0.7454 | -784.9 | -269.3 | |
| 0.00 | 0.86 | 0.00 | 0.64 | 0.79 | 153.71 | 47.49 | 277.65 | 0.7461 | -443.0 | -372.5 | |
| 0.00 | 1.04 | 0.00 | 0.76 | 0.84 | 153.27 | 47.05 | 277.82 | 0.7411 | -420.0 | -321.5 | |
| 0.95 | 5.18 | 0.69 | 3.77 | -0.11 | 153.00 | 46.78 | 276.61 | 0.7360 | -529.9 | -527.0 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -0.48 | 152.22 | 46.01 | 276.29 | 0.7261 | -441.0 | -448.2 | |
| 0.00 | 4.40 | 0.00 | 3.13 | -1.54 | 151.81 | 45.59 | 274.93 | 0.7191 | -801.0 | -649.4 | |
| 0.52 | 1.90 | 0.37 | 1.34 | -2.80 | 151.73 | 45.51 | 273.20 | 0.7160 | -563.2 | -485.2 | |
| 0.00 | 1.64 | 0.00 | 1.16 | -1.82 | 151.65 | 45.43 | 274.57 | 0.7167 | -711.0 | -702.9 | |
| 0.00 | 3.80 | 0.00 | 2.68 | -1.98 | 151.52 | 45.31 | 274.37 | 0.7149 | -658.0 | -589.2 | |
| 0.00 | 3.80 | 0.00 | 2.67 | -1.62 | 151.22 | 45.00 | 274.94 | 0.7118 | -791.0 | -676.7 | |
| 0.00 | 1.12 | 0.00 | 0.79 | 0.02 | 151.11 | 44.90 | 277.24 | 0.7139 | -390.0 | -415.0 | |
| 1.55 | 11.91 | 1.08 | 8.21 | -1.57 | 150.42 | 44.20 | 275.18 | 0.7022 | -660.8 | -273.3 | |
| 0.52 | 2.33 | 0.36 | 1.61 | -2.04 | 150.23 | 44.01 | 274.56 | 0.6989 | -501.8 | -451.6 | |
| 0.00 | 2.07 | 0.00 | 1.42 | -1.21 | 149.79 | 43.58 | 275.84 | 0.6951 | -242.0 | -208.8 | |
| 0.00 | 0.95 | 0.00 | 0.65 | -1.82 | 149.68 | 43.47 | 274.99 | 0.6926 | 449.0 | 357.9 | |
| 0.52 | 4.06 | 0.35 | 2.77 | -1.59 | 149.51 | 43.30 | 275.35 | 0.6909 | 671.7 | 448.5 | |
| 0.00 | 0.95 | 0.00 | 0.64 | 0.83 | 148.08 | 41.87 | 279.22 | 0.6784 | 404.0 | 353.5 | |
| 0.00 | 0.52 | 0.00 | 0.34 | -1.67 | 147.90 | 41.68 | 275.61 | 0.6702 | 531.0 | 445.7 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 3.24 | 145.88 | 39.66 | 283.50 | 0.6577 | 306.0 | 293.7 | |
| 0.00 | 2.16 | 0.00 | 1.40 | 2.54 | 145.42 | 39.21 | 282.64 | 0.6495 | 600.0 | 484.1 | |
| 0.00 | 2.59 | 0.00 | 1.65 | -2.94 | 145.16 | 38.94 | 274.30 | 0.6318 | 565.0 | 533.7 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -2.61 | 145.15 | 38.93 | 274.82 | 0.6323 | 515.0 | 455.5 | |
| 0.00 | 1.99 | 0.00 | 1.26 | -2.84 | 144.89 | 38.67 | 274.51 | 0.6283 | 790.0 | 665.4 | |
| 0.00 | 1.38 | 0.00 | 0.88 | -2.57 | 144.84 | 38.62 | 274.94 | 0.6282 | 656.0 | 546.0 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -2.31 | 144.83 | 38.62 | 275.37 | 0.6286 | 566.0 | 497.7 | |
| 0.52 | 2.76 | 0.33 | 1.75 | -2.66 | 144.54 | 38.32 | 274.88 | 0.6240 | 814.0 | 679.5 | |
| 0.00 | 1.81 | 0.00 | 1.14 | -1.99 | 144.33 | 38.11 | 276.00 | 0.6225 | 633.0 | 564.4 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -1.29 | 144.09 | 37.87 | 277.18 | 0.6209 | 651.0 | 513.4 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 0.66 | 142.48 | 36.26 | 280.83 | 0.6044 | 351.0 | 334.9 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -6.89 | 137.81 | 31.59 | 268.64 | 0.5223 | 475.0 | 445.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
