SDO HMI 2014-03-03 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 242.07 | 1037.18 | 130.57 | 558.44 | -24.98 | 91.27 | -14.94 | 143.50 | 0.3887 | -127.6 | 3.9 | |
|
previous
or next observation for the same group /

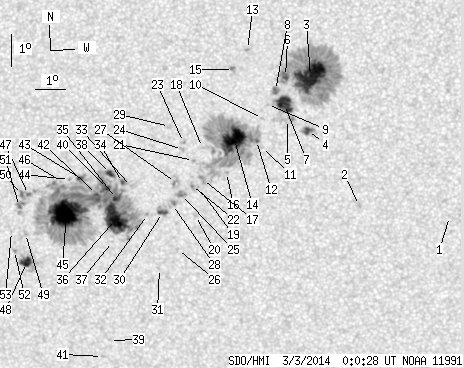

back to the solar disc SDO HMI 2014-03-03 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.59 | -26.89 | 100.31 | -5.91 | 164.75 | 0.3505 | 12.0 | -3.2 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -26.49 | 97.31 | -8.90 | 157.29 | 0.3603 | 723.0 | 574.8 | |
| 50.24 | 244.38 | 26.18 | 127.28 | -22.41 | 96.01 | -10.21 | 148.13 | 0.3116 | 1241.7 | 479.7 | |
| 3.37 | 7.94 | 1.77 | 4.18 | -24.11 | 95.78 | -10.44 | 150.47 | 0.3371 | 919.9 | 693.3 | |
| 0.00 | 6.04 | 0.00 | 3.18 | -23.75 | 95.14 | -11.07 | 148.46 | 0.3374 | 586.0 | 446.9 | |
| 3.19 | -3.00 | 1.67 | -3.00 | -22.43 | 95.19 | -11.02 | 146.20 | 0.3191 | 1054.1 | 999999 | |
| 16.75 | 27.45 | 8.79 | 14.41 | -23.29 | 95.09 | -11.13 | 147.52 | 0.3316 | 1031.2 | 539.6 | |
| 1.64 | 4.92 | 0.86 | 2.58 | -22.85 | 94.83 | -11.39 | 146.15 | 0.3281 | 837.6 | 774.8 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -23.27 | 94.53 | -11.69 | 146.25 | 0.3364 | 698.0 | 551.4 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -23.70 | 94.32 | -11.89 | 146.56 | 0.3440 | 675.0 | 499.3 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -24.60 | 94.20 | -12.01 | 147.82 | 0.3569 | -709.0 | -441.1 | |
| 0.69 | 193.62 | 0.37 | 102.92 | -24.38 | 94.06 | -12.16 | 147.16 | 0.3553 | -875.2 | 280.6 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -21.57 | 94.02 | -12.19 | 141.84 | 0.3193 | 856.0 | 680.3 | |
| 30.82 | -12.00 | 16.36 | -12.00 | -24.33 | 93.33 | -12.89 | 145.58 | 0.3612 | 1239.0 | 999999 | |
| 0.00 | 3.19 | 0.00 | 1.68 | -22.17 | 93.51 | -12.71 | 141.96 | 0.3320 | 943.0 | 842.3 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -25.35 | 92.95 | -13.27 | 146.53 | 0.3778 | -155.0 | -230.8 | |
| 0.00 | 4.58 | 0.00 | 2.46 | -25.54 | 92.11 | -14.10 | 145.29 | 0.3878 | -800.0 | -746.0 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -24.55 | 92.23 | -13.99 | 143.84 | 0.3742 | 243.0 | 223.5 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -25.79 | 91.94 | -14.27 | 145.38 | 0.3924 | -716.0 | -561.9 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -26.67 | 91.73 | -14.49 | 146.37 | 0.4053 | -687.0 | -558.1 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -24.94 | 91.88 | -14.34 | 143.87 | 0.3824 | 538.0 | 418.8 | |
| 0.00 | 2.85 | 0.00 | 1.53 | -25.72 | 91.71 | -14.50 | 144.86 | 0.3936 | -976.0 | -814.6 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -24.37 | 91.61 | -14.61 | 142.39 | 0.3780 | 808.0 | 645.6 | |
| 0.00 | 2.42 | 0.00 | 1.29 | -24.59 | 91.55 | -14.67 | 142.66 | 0.3812 | 853.0 | 530.9 | |
| 0.00 | 6.13 | 0.00 | 3.31 | -25.99 | 91.34 | -14.88 | 144.63 | 0.4004 | -1041.0 | -904.1 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -27.72 | 90.96 | -15.25 | 146.63 | 0.4253 | -667.0 | -430.6 | |
| 0.00 | 6.39 | 0.00 | 3.44 | -25.61 | 91.18 | -15.03 | 143.75 | 0.3972 | 525.0 | 291.8 | |
| 0.00 | 4.75 | 0.00 | 2.57 | -26.30 | 90.99 | -15.23 | 144.52 | 0.4074 | -786.0 | -754.5 | |
| 0.00 | 2.93 | 0.00 | 1.57 | -23.86 | 91.20 | -15.02 | 140.74 | 0.3760 | 127.0 | 208.3 | |
| 3.19 | 8.20 | 1.74 | 4.46 | -26.54 | 90.61 | -15.60 | 144.27 | 0.4138 | -922.8 | -809.4 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -28.30 | 90.24 | -15.97 | 146.32 | 0.4387 | -563.0 | -463.2 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -26.58 | 90.09 | -16.13 | 143.48 | 0.4193 | -813.0 | -534.5 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -25.68 | 89.67 | -16.55 | 141.35 | 0.4128 | -737.0 | -517.0 | |
| 1.47 | 3.63 | 0.80 | 1.97 | -25.55 | 89.38 | -16.84 | 140.66 | 0.4141 | -1064.6 | -872.3 | |
| 5.27 | 455.27 | 2.87 | 250.65 | -26.04 | 89.09 | -17.12 | 141.05 | 0.4225 | -1168.3 | -347.0 | |
| 41.09 | -35.00 | 22.54 | -35.00 | -26.70 | 88.96 | -17.26 | 141.91 | 0.4314 | -1172.6 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -27.39 | 88.74 | -17.47 | 142.66 | 0.4414 | -426.0 | -334.6 | |
| 3.71 | -35.00 | 2.02 | -35.00 | -25.25 | 89.01 | -17.21 | 139.58 | 0.4145 | 799.3 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -30.54 | 88.07 | -18.15 | 146.21 | 0.4843 | -787.0 | -646.8 | |
| 1.73 | -35.00 | 0.94 | -35.00 | -25.72 | 88.83 | -17.38 | 140.11 | 0.4215 | 699.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -31.05 | 87.71 | -18.50 | 146.40 | 0.4933 | -698.0 | -575.6 | |
| 1.47 | -35.00 | 0.80 | -35.00 | -25.89 | 88.42 | -17.79 | 139.79 | 0.4275 | 710.7 | 999999 | |
| 2.33 | -35.00 | 1.28 | -35.00 | -25.37 | 87.95 | -18.26 | 138.21 | 0.4267 | -935.6 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -25.39 | 87.57 | -18.65 | 137.69 | 0.4309 | -758.0 | -649.4 | |
| 64.05 | -35.00 | 35.39 | -35.00 | -26.45 | 87.29 | -18.93 | 139.07 | 0.4452 | -1272.4 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -25.44 | 87.28 | -18.93 | 137.37 | 0.4345 | 145.0 | 90.2 | |
| 0.78 | -35.00 | 0.43 | -35.00 | -25.80 | 86.07 | -20.15 | 136.35 | 0.4512 | -935.0 | 999999 | |
| 7.86 | 18.13 | 4.42 | 10.21 | -27.93 | 85.59 | -20.63 | 139.18 | 0.4781 | -840.0 | -497.9 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -27.02 | 85.73 | -20.48 | 137.93 | 0.4672 | 783.0 | 622.5 | |
| 1.21 | -35.00 | 0.67 | -35.00 | -25.79 | 85.82 | -20.39 | 136.01 | 0.4537 | -792.1 | 999999 | |
| 1.21 | 7.60 | 0.67 | 4.23 | -26.16 | 85.68 | -20.53 | 136.46 | 0.4589 | -822.1 | -597.9 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -27.53 | 85.24 | -20.98 | 138.13 | 0.4776 | -877.0 | -744.7 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -26.93 | 85.25 | -20.97 | 137.18 | 0.4713 | -446.0 | -341.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
