SDO HMI 2014-03-03 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.48 | 103.24 | 16.87 | 73.77 | -7.24 | 152.62 | 46.41 | 266.93 | 0.7216 | 422.0 | 191.6 | |
|
previous
or next observation for the same group /

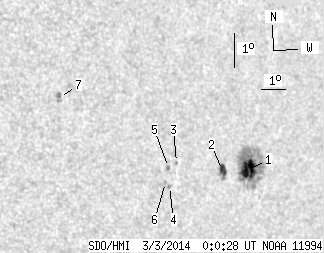

back to the solar disc SDO HMI 2014-03-03 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.73 | 84.34 | 13.51 | 60.90 | -7.27 | 153.21 | 47.00 | 266.83 | 0.7289 | 749.5 | 269.9 | |
| 4.75 | 8.80 | 3.36 | 6.22 | -7.40 | 152.10 | 45.88 | 266.73 | 0.7154 | 703.8 | 578.6 | |
| 0.00 | 1.04 | 0.00 | 0.71 | -7.33 | 150.14 | 43.92 | 266.97 | 0.6913 | -465.0 | -399.2 | |
| 0.00 | 1.38 | 0.00 | 0.94 | -8.06 | 149.94 | 43.72 | 265.91 | 0.6884 | -641.0 | -567.2 | |
| 0.00 | 1.81 | 0.00 | 1.23 | -7.51 | 149.82 | 43.61 | 266.73 | 0.6873 | -820.0 | -592.1 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -7.96 | 149.76 | 43.54 | 266.07 | 0.6862 | -677.0 | -508.9 | |
| 0.00 | 5.01 | 0.00 | 3.18 | -5.79 | 145.29 | 39.08 | 269.76 | 0.6294 | -659.0 | -535.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
