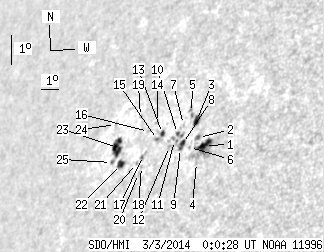

SDO HMI 2014-03-03 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.55 | 88.57 | 29.94 | 85.28 | 12.93 | 50.37 | -55.85 | 70.15 | 0.8591 | 13.7 | -109.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.34 | 24.43 | 6.66 | 22.17 | 12.61 | 52.54 | -53.67 | 69.79 | 0.8400 | -776.5 | -450.7 | |
| 0.60 | 2.59 | 0.56 | 2.38 | 12.90 | 52.14 | -54.08 | 69.60 | 0.8443 | -536.7 | -504.7 | |
| 3.54 | 5.70 | 3.29 | 5.29 | 13.46 | 51.85 | -54.37 | 69.06 | 0.8484 | -578.7 | -372.6 | |
| 0.00 | 1.21 | 0.00 | 1.10 | 12.10 | 52.28 | -53.94 | 70.45 | 0.8409 | -203.0 | -173.1 | |
| 0.00 | 3.97 | 0.00 | 3.74 | 13.76 | 51.49 | -54.73 | 68.86 | 0.8523 | -417.0 | -304.8 | |
| 0.00 | 0.78 | 0.00 | 0.72 | 12.63 | 51.75 | -54.46 | 70.04 | 0.8469 | -307.0 | -287.1 | |
| 0.00 | 1.12 | 0.00 | 1.06 | 13.41 | 51.18 | -55.04 | 69.35 | 0.8540 | -377.0 | -255.8 | |
| 1.90 | 5.09 | 1.78 | 4.77 | 12.80 | 51.33 | -54.89 | 69.99 | 0.8511 | -453.6 | -338.9 | |
| 0.60 | -8.00 | 0.57 | -8.00 | 12.65 | 51.27 | -54.95 | 70.18 | 0.8512 | -416.6 | 999999 | |
| 0.69 | 3.80 | 0.66 | 3.59 | 13.15 | 50.94 | -55.27 | 69.72 | 0.8553 | -275.6 | -329.1 | |
| 0.00 | 2.33 | 0.00 | 2.21 | 12.95 | 50.85 | -55.37 | 69.98 | 0.8555 | -59.0 | -158.9 | |
| 0.00 | 1.29 | 0.00 | 1.24 | 12.78 | 50.63 | -55.58 | 70.24 | 0.8569 | 209.0 | 208.9 | |
| 1.38 | 2.68 | 1.34 | 2.60 | 13.25 | 50.09 | -56.13 | 69.90 | 0.8626 | -336.6 | -226.2 | |
| 0.00 | 0.78 | 0.00 | 0.77 | 13.64 | 49.67 | -56.54 | 69.60 | 0.8671 | -124.0 | -66.1 | |
| 0.00 | 2.16 | 0.00 | 2.11 | 13.08 | 49.87 | -56.34 | 70.15 | 0.8640 | 351.0 | 329.6 | |
| 0.00 | 0.95 | 0.00 | 0.95 | 13.40 | 49.25 | -56.96 | 70.00 | 0.8698 | 251.0 | 216.4 | |
| 0.00 | 2.93 | 0.00 | 2.91 | 12.65 | 49.24 | -56.98 | 70.83 | 0.8681 | 519.0 | 500.7 | |
| 0.00 | 1.12 | 0.00 | 1.11 | 12.31 | 49.24 | -56.97 | 71.21 | 0.8673 | 630.0 | 592.1 | |
| 0.00 | 1.29 | 0.00 | 1.32 | 13.95 | 48.59 | -57.63 | 69.61 | 0.8764 | 563.0 | 457.4 | |
| 0.00 | 1.04 | 0.00 | 1.02 | 12.10 | 49.14 | -57.07 | 71.47 | 0.8676 | 535.0 | 443.6 | |
| 0.00 | 1.29 | 0.00 | 1.29 | 12.44 | 48.92 | -57.30 | 71.17 | 0.8702 | 389.0 | 334.5 | |
| 3.71 | 4.92 | 3.81 | 5.05 | 12.51 | 47.97 | -58.24 | 71.38 | 0.8780 | 587.5 | 419.4 | |
| 10.36 | 13.90 | 10.82 | 14.52 | 13.09 | 47.58 | -58.63 | 70.86 | 0.8823 | 441.8 | 244.8 | |
| 0.00 | 1.47 | 0.00 | 1.56 | 13.86 | 47.16 | -59.06 | 70.16 | 0.8873 | 228.0 | 226.2 | |
| 0.43 | 1.73 | 0.45 | 1.80 | 12.64 | 47.39 | -58.82 | 71.41 | 0.8827 | 329.4 | 261.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
