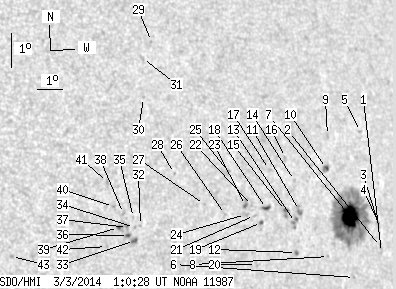

SDO HMI 2014-03-03 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.98 | 221.83 | 24.23 | 161.91 | -1.49 | 152.68 | 47.02 | 274.72 | 0.7353 | -113.5 | -194.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.60 | -2.43 | 155.51 | 49.85 | 272.94 | 0.7670 | 564.0 | 419.8 | |
| 0.00 | 1.99 | 0.00 | 1.53 | -2.25 | 155.46 | 49.79 | 273.18 | 0.7666 | 458.0 | 446.2 | |
| 0.00 | 0.78 | 0.00 | 0.60 | -1.69 | 155.39 | 49.73 | 273.92 | 0.7667 | 455.0 | 350.0 | |
| 0.00 | 1.30 | 0.00 | 0.99 | -1.55 | 155.34 | 49.68 | 274.12 | 0.7664 | 320.0 | 250.7 | |
| 0.00 | 1.12 | 0.00 | 0.86 | 1.10 | 154.51 | 48.85 | 277.72 | 0.7620 | -504.0 | -459.3 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -3.29 | 154.33 | 48.66 | 272.01 | 0.7524 | 267.0 | 229.7 | |
| 25.47 | 149.62 | 19.06 | 111.94 | -1.49 | 154.06 | 48.40 | 274.43 | 0.7521 | -742.8 | -276.5 | |
| 0.00 | 0.52 | 0.00 | 0.38 | -2.77 | 153.13 | 47.47 | 272.89 | 0.7393 | 375.0 | 321.7 | |
| 0.00 | 1.55 | 0.00 | 1.15 | 0.84 | 153.03 | 47.37 | 277.74 | 0.7447 | -439.0 | -415.3 | |
| 1.47 | 3.97 | 1.08 | 2.92 | -0.15 | 152.98 | 47.31 | 276.43 | 0.7421 | -602.7 | -537.9 | |
| 0.00 | 4.75 | 0.00 | 3.41 | -1.52 | 151.82 | 46.15 | 274.84 | 0.7259 | -799.0 | -592.5 | |
| 0.00 | 1.90 | 0.00 | 1.36 | -2.78 | 151.74 | 46.07 | 273.13 | 0.7228 | -571.0 | -454.4 | |
| 0.00 | 4.49 | 0.00 | 3.21 | -1.89 | 151.66 | 45.99 | 274.37 | 0.7233 | -666.0 | -631.0 | |
| 0.00 | 1.04 | 0.00 | 0.74 | -0.64 | 151.59 | 45.92 | 276.09 | 0.7248 | -500.0 | -360.5 | |
| 0.78 | 4.58 | 0.55 | 3.25 | -1.57 | 151.22 | 45.56 | 274.89 | 0.7186 | -760.9 | -671.5 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 0.01 | 151.20 | 45.54 | 277.08 | 0.7215 | -556.0 | -423.4 | |
| 0.00 | 1.38 | 0.00 | 0.97 | -0.41 | 150.53 | 44.86 | 276.66 | 0.7125 | -630.0 | -562.2 | |
| 1.64 | 3.89 | 1.15 | 2.72 | -1.58 | 150.42 | 44.75 | 275.05 | 0.7089 | -746.2 | -579.5 | |
| 0.69 | 1.73 | 0.48 | 1.20 | -2.02 | 150.22 | 44.55 | 274.48 | 0.7056 | -546.8 | -429.5 | |
| 0.00 | 2.42 | 0.00 | 1.68 | -3.29 | 150.07 | 44.40 | 272.71 | 0.7016 | -512.0 | -429.2 | |
| 0.00 | 0.78 | 0.00 | 0.54 | -1.84 | 149.92 | 44.26 | 274.80 | 0.7023 | -195.0 | -138.2 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -1.55 | 149.83 | 44.17 | 275.23 | 0.7017 | 114.0 | 83.3 | |
| 0.60 | 3.45 | 0.42 | 2.38 | -1.57 | 149.54 | 43.88 | 275.26 | 0.6981 | 634.4 | 418.8 | |
| 0.00 | 2.50 | 0.00 | 1.73 | -1.84 | 149.55 | 43.88 | 274.87 | 0.6977 | 346.0 | 307.3 | |
| 0.00 | 1.12 | 0.00 | 0.77 | -0.61 | 148.83 | 43.16 | 276.79 | 0.6912 | 519.0 | 387.9 | |
| 0.00 | 0.78 | 0.00 | 0.53 | -1.91 | 148.73 | 43.06 | 274.95 | 0.6873 | 514.0 | 415.6 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -1.68 | 147.87 | 42.20 | 275.47 | 0.6769 | 569.0 | 486.4 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -0.86 | 146.66 | 40.99 | 276.99 | 0.6631 | 451.0 | 434.8 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 3.04 | 145.83 | 40.16 | 283.02 | 0.6634 | 668.0 | 535.4 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 1.32 | 145.46 | 39.79 | 280.61 | 0.6533 | 493.0 | 447.0 | |
| 0.00 | 2.59 | 0.00 | 1.70 | 2.50 | 145.45 | 39.79 | 282.36 | 0.6568 | 530.0 | 419.6 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -2.52 | 145.37 | 39.70 | 274.78 | 0.6427 | 523.0 | 433.2 | |
| 0.86 | 1.21 | 0.55 | 0.78 | -2.98 | 145.15 | 39.49 | 274.11 | 0.6390 | 552.4 | 491.3 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -2.60 | 145.14 | 39.47 | 274.71 | 0.6395 | 454.0 | 463.3 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -2.30 | 145.09 | 39.42 | 275.18 | 0.6394 | 479.0 | 407.5 | |
| 0.78 | 1.81 | 0.50 | 1.16 | -2.85 | 144.92 | 39.25 | 274.36 | 0.6361 | 726.4 | 669.8 | |
| 0.00 | 2.07 | 0.00 | 1.33 | -2.62 | 144.87 | 39.20 | 274.74 | 0.6359 | 595.0 | 524.2 | |
| 0.00 | 1.73 | 0.00 | 1.10 | -2.21 | 144.70 | 39.04 | 275.41 | 0.6345 | 596.0 | 507.8 | |
| 0.69 | 2.94 | 0.44 | 1.87 | -2.64 | 144.52 | 38.86 | 274.78 | 0.6312 | 717.4 | 635.3 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -2.03 | 144.31 | 38.65 | 275.79 | 0.6296 | 713.0 | 650.2 | |
| 0.00 | 2.07 | 0.00 | 1.32 | -1.34 | 144.07 | 38.40 | 276.95 | 0.6279 | 725.0 | 473.2 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -3.25 | 144.09 | 38.42 | 273.92 | 0.6242 | 481.0 | 475.4 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -3.81 | 140.58 | 34.91 | 273.75 | 0.5745 | 667.0 | 554.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
