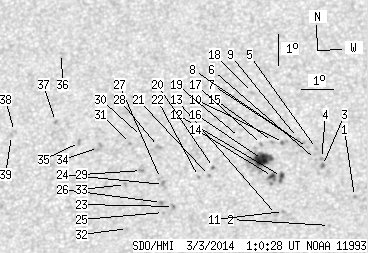

SDO HMI 2014-03-03 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.51 | 110.89 | 10.55 | 60.13 | 16.35 | 101.85 | -3.82 | 8.92 | 0.4086 | -116.4 | -68.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.74 | 15.23 | 105.81 | 0.14 | 359.65 | 0.3841 | -813.0 | -696.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 14.30 | 105.04 | -0.63 | 1.66 | 0.3691 | -818.0 | -636.5 | |
| 0.43 | 1.90 | 0.23 | 1.03 | 16.24 | 104.82 | -0.85 | 2.04 | 0.4005 | -999.8 | -801.0 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 16.46 | 104.79 | -0.88 | 2.10 | 0.4041 | -867.0 | -692.2 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 16.79 | 104.63 | -1.04 | 2.43 | 0.4094 | -805.0 | -596.2 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 16.43 | 104.60 | -1.07 | 2.54 | 0.4037 | -707.0 | -550.9 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 16.82 | 104.35 | -1.32 | 3.08 | 0.4102 | -724.0 | -573.4 | |
| 0.00 | 2.50 | 0.00 | 1.36 | 16.95 | 104.16 | -1.50 | 3.50 | 0.4125 | -682.0 | -637.5 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 17.15 | 104.04 | -1.63 | 3.76 | 0.4157 | -552.0 | -548.8 | |
| 0.00 | 2.85 | 0.00 | 1.55 | 16.99 | 103.60 | -2.06 | 4.79 | 0.4137 | -699.0 | -555.8 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 14.76 | 103.62 | -2.04 | 5.26 | 0.3779 | -869.0 | -661.1 | |
| 2.16 | 15.28 | 1.16 | 8.23 | 15.89 | 103.55 | -2.11 | 5.16 | 0.3961 | -926.7 | -729.3 | |
| 0.00 | 2.50 | 0.00 | 1.34 | 14.66 | 103.41 | -2.26 | 5.83 | 0.3767 | -859.0 | -631.1 | |
| 1.81 | -12.00 | 0.98 | -12.00 | 15.89 | 103.27 | -2.39 | 5.83 | 0.3966 | -940.6 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 17.02 | 103.26 | -2.40 | 5.58 | 0.4147 | -609.0 | -548.4 | |
| 15.11 | 35.83 | 8.18 | 19.40 | 16.44 | 102.96 | -2.71 | 6.44 | 0.4059 | -941.4 | -371.1 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 16.93 | 102.92 | -2.75 | 6.39 | 0.4138 | -688.0 | -542.9 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 18.64 | 102.61 | -3.05 | 6.60 | 0.4412 | -708.0 | -489.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 17.16 | 102.23 | -3.43 | 7.89 | 0.4188 | 480.0 | 368.7 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 16.20 | 101.44 | -4.22 | 10.09 | 0.4055 | 837.0 | 697.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 15.94 | 101.32 | -4.34 | 10.49 | 0.4018 | 819.0 | 659.0 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 15.91 | 100.98 | -4.68 | 11.30 | 0.4024 | 886.0 | 718.2 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 14.95 | 100.23 | -5.43 | 13.63 | 0.3899 | 907.0 | 790.2 | |
| 0.00 | 3.02 | 0.00 | 1.63 | 15.67 | 99.90 | -5.76 | 13.97 | 0.4023 | 835.0 | 751.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 14.76 | 99.93 | -5.74 | 14.49 | 0.3882 | 789.0 | 665.1 | |
| 0.00 | 1.99 | 0.00 | 1.07 | 15.09 | 99.86 | -5.81 | 14.44 | 0.3935 | 903.0 | 765.7 | |
| 0.00 | 1.99 | 0.00 | 1.08 | 15.86 | 99.81 | -5.86 | 14.07 | 0.4057 | 627.0 | 496.0 | |
| 0.00 | 3.02 | 0.00 | 1.65 | 16.90 | 99.71 | -5.95 | 13.66 | 0.4221 | 743.0 | 626.1 | |
| 0.00 | 1.99 | 0.00 | 1.08 | 16.13 | 99.21 | -6.46 | 15.26 | 0.4123 | 946.0 | 682.0 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 17.24 | 99.17 | -6.50 | 14.64 | 0.4294 | 579.0 | 465.3 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 17.01 | 98.83 | -6.83 | 15.51 | 0.4273 | 780.0 | 585.8 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 14.27 | 98.83 | -6.84 | 17.50 | 0.3854 | 665.0 | 586.0 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 15.68 | 98.72 | -6.94 | 16.67 | 0.4076 | 828.0 | 682.8 | |
| 0.00 | 5.18 | 0.00 | 2.84 | 16.90 | 97.84 | -7.83 | 17.72 | 0.4301 | 761.0 | 655.0 | |
| 0.00 | 2.33 | 0.00 | 1.28 | 17.08 | 97.23 | -8.43 | 18.85 | 0.4357 | 804.0 | 639.4 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 20.03 | 96.51 | -9.16 | 18.12 | 0.4827 | 693.0 | 563.2 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 17.78 | 96.44 | -9.22 | 19.91 | 0.4502 | 778.0 | 634.4 | |
| 0.00 | 1.73 | 0.00 | 0.96 | 17.48 | 95.16 | -10.51 | 22.67 | 0.4531 | 604.0 | 516.1 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 17.36 | 95.07 | -10.59 | 22.96 | 0.4518 | 646.0 | 466.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
