SDO HMI 2014-03-03 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.99 | 44.13 | 1.12 | 24.28 | 8.98 | 121.76 | 17.74 | 316.17 | 0.4330 | -457.1 | -410.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 04:00:28 UT

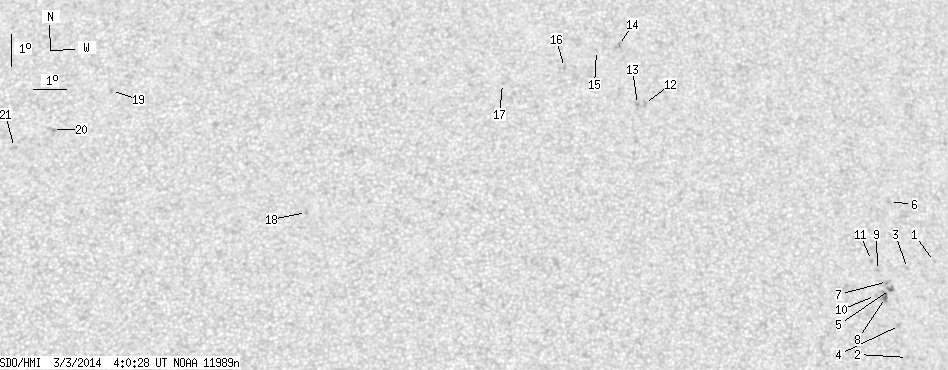

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.54 | 7.42 | 130.13 | 26.11 | 298.85 | 0.5003 | -527.0 | -447.5 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 4.44 | 129.08 | 25.06 | 294.30 | 0.4653 | -624.0 | -538.5 | |
| 0.00 | 1.38 | 0.00 | 0.78 | 7.16 | 129.22 | 25.20 | 299.28 | 0.4863 | -584.0 | -531.5 | |
| 0.00 | 2.07 | 0.00 | 1.16 | 5.40 | 128.86 | 24.84 | 296.36 | 0.4687 | -818.0 | -670.1 | |
| 0.69 | 3.46 | 0.39 | 1.94 | 6.48 | 128.62 | 24.60 | 298.65 | 0.4732 | -874.0 | -745.3 | |
| 0.00 | 1.81 | 0.00 | 1.03 | 9.19 | 128.76 | 24.74 | 303.32 | 0.4964 | -659.0 | -494.6 | |
| 0.00 | 2.50 | 0.00 | 1.41 | 6.72 | 128.53 | 24.51 | 299.18 | 0.4739 | -803.0 | -684.8 | |
| 1.30 | 6.65 | 0.73 | 3.72 | 6.23 | 128.44 | 24.42 | 298.36 | 0.4689 | -1001.5 | -820.5 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 7.04 | 128.22 | 24.20 | 300.10 | 0.4722 | -731.0 | -626.8 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 6.27 | 128.11 | 24.09 | 298.78 | 0.4648 | -604.0 | -532.8 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 7.34 | 128.04 | 24.02 | 300.84 | 0.4721 | -825.0 | -709.2 | |
| 0.00 | 2.42 | 0.00 | 1.33 | 11.90 | 121.02 | 17.00 | 318.44 | 0.4329 | -799.0 | -677.9 | |
| 0.00 | 1.55 | 0.00 | 0.85 | 11.86 | 120.79 | 16.77 | 318.75 | 0.4301 | -895.0 | -684.4 | |
| 0.00 | 3.97 | 0.00 | 2.20 | 13.71 | 120.32 | 16.29 | 322.30 | 0.4476 | -757.0 | -608.7 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 13.52 | 119.60 | 15.58 | 323.28 | 0.4386 | -740.0 | -588.9 | |
| 0.00 | 1.90 | 0.00 | 1.04 | 12.95 | 118.55 | 14.53 | 324.38 | 0.4216 | -834.0 | -655.0 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 12.38 | 116.58 | 12.56 | 327.47 | 0.3967 | -661.0 | -502.8 | |
| 0.00 | 1.47 | 0.00 | 0.76 | 8.24 | 110.44 | 6.42 | 337.44 | 0.2895 | 915.0 | 705.9 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 12.00 | 104.58 | 0.56 | 358.34 | 0.3312 | 785.0 | 603.3 | |
| 0.00 | 2.76 | 0.00 | 1.44 | 10.78 | 102.79 | -1.23 | 3.90 | 0.3115 | 763.0 | 565.4 | |
| 0.00 | 2.68 | 0.00 | 1.39 | 10.22 | 101.65 | -2.38 | 7.74 | 0.3042 | 689.0 | 624.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
