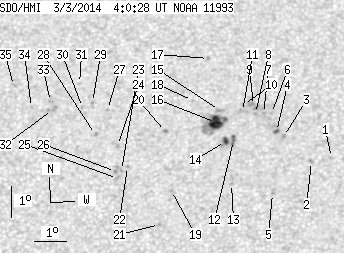

SDO HMI 2014-03-03 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.73 | 92.16 | 7.43 | 49.88 | 16.34 | 102.32 | -1.71 | 4.02 | 0.4043 | -92.4 | -153.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.74 | 15.34 | 106.54 | 2.51 | 353.72 | 0.3880 | 717.0 | 529.1 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 15.21 | 105.92 | 1.90 | 355.22 | 0.3850 | -863.0 | -702.2 | |
| 0.00 | 1.99 | 0.00 | 1.07 | 16.02 | 105.06 | 1.04 | 357.48 | 0.3971 | -865.0 | -720.1 | |
| 0.69 | 2.16 | 0.37 | 1.17 | 16.18 | 104.85 | 0.82 | 358.02 | 0.3995 | -1006.0 | -857.5 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 14.18 | 104.71 | 0.69 | 358.17 | 0.3672 | -753.0 | -611.8 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 16.76 | 104.69 | 0.67 | 358.42 | 0.4088 | -750.0 | -658.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 16.76 | 104.44 | 0.42 | 359.01 | 0.4087 | -810.0 | -748.2 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 16.76 | 104.20 | 0.17 | 359.59 | 0.4087 | -861.0 | -742.5 | |
| 0.00 | 4.66 | 0.00 | 2.53 | 17.03 | 104.13 | 0.11 | 359.74 | 0.4128 | -546.0 | -648.4 | |
| 0.00 | 1.73 | 0.00 | 0.94 | 17.06 | 103.82 | -0.20 | 0.46 | 0.4134 | -563.0 | -441.2 | |
| 0.00 | 4.23 | 0.00 | 2.30 | 16.83 | 103.79 | -0.23 | 0.54 | 0.4097 | -775.0 | -591.7 | |
| 0.00 | 3.54 | 0.00 | 1.91 | 15.89 | 103.51 | -0.51 | 1.24 | 0.3947 | -949.0 | -818.1 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 14.51 | 103.46 | -0.57 | 1.48 | 0.3723 | -787.0 | -589.5 | |
| 1.81 | 4.49 | 0.98 | 2.42 | 15.86 | 103.27 | -0.76 | 1.85 | 0.3943 | -1034.5 | -797.6 | |
| 0.00 | 2.76 | 0.00 | 1.50 | 16.86 | 103.08 | -0.94 | 2.21 | 0.4106 | -682.0 | -479.4 | |
| 11.23 | 30.58 | 6.08 | 16.54 | 16.47 | 102.96 | -1.07 | 2.54 | 0.4044 | -1010.0 | -490.3 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 18.57 | 102.73 | -1.30 | 2.82 | 0.4379 | -652.0 | -498.5 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 17.19 | 102.24 | -1.79 | 4.12 | 0.4166 | 651.0 | 429.0 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 14.29 | 101.61 | -2.41 | 6.33 | 0.3709 | 804.0 | 595.1 | |
| 0.00 | 1.55 | 0.00 | 0.84 | 16.19 | 101.41 | -2.61 | 6.29 | 0.4018 | 900.0 | 761.6 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 13.21 | 101.26 | -2.76 | 7.66 | 0.3541 | 766.0 | 533.6 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 15.07 | 100.25 | -3.77 | 9.50 | 0.3864 | 786.0 | 681.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 14.94 | 100.07 | -3.96 | 10.01 | 0.3849 | 837.0 | 698.8 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 15.75 | 99.93 | -4.09 | 9.98 | 0.3981 | 808.0 | 767.2 | |
| 0.00 | 2.16 | 0.00 | 1.16 | 14.69 | 99.95 | -4.07 | 10.43 | 0.3812 | 798.0 | 701.0 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 14.91 | 99.88 | -4.14 | 10.48 | 0.3850 | 884.0 | 725.3 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 16.92 | 99.59 | -4.43 | 10.24 | 0.4175 | 743.0 | 552.0 | |
| 0.00 | 1.55 | 0.00 | 0.84 | 16.12 | 99.24 | -4.78 | 11.43 | 0.4059 | 871.0 | 609.9 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 17.16 | 99.12 | -4.90 | 11.19 | 0.4225 | 792.0 | 525.5 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 17.00 | 98.81 | -5.21 | 11.95 | 0.4210 | 843.0 | 717.9 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 17.79 | 98.70 | -5.33 | 11.81 | 0.4336 | 568.0 | 429.3 | |
| 0.00 | 4.41 | 0.00 | 2.41 | 16.95 | 97.88 | -6.15 | 14.05 | 0.4236 | 766.0 | 759.5 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 17.21 | 97.81 | -6.22 | 14.05 | 0.4279 | 720.0 | 658.1 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 17.02 | 97.22 | -6.80 | 15.44 | 0.4274 | 730.0 | 610.5 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 17.75 | 96.63 | -7.40 | 16.22 | 0.4410 | 671.0 | 575.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
