SDO HMI 2014-03-03 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 244.41 | 1105.02 | 130.34 | 588.24 | -25.11 | 90.94 | -11.99 | 149.58 | 0.3644 | -95.4 | 0.8 | |
|
previous
or next observation for the same group /

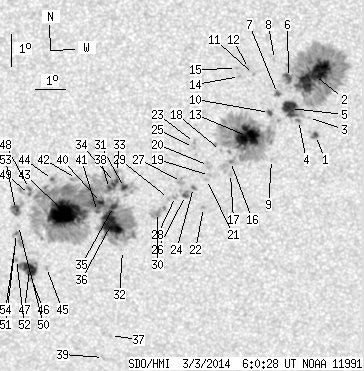

back to the solar disc SDO HMI 2014-03-03 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.16 | 4.15 | 1.13 | 2.16 | -24.27 | 95.80 | -7.13 | 158.93 | 0.3161 | 943.9 | 686.5 | |
| 46.74 | 282.95 | 24.16 | 146.34 | -22.41 | 95.87 | -7.06 | 156.60 | 0.2874 | 1300.6 | 480.1 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -23.70 | 95.60 | -7.33 | 157.67 | 0.3087 | -57.0 | -108.9 | |
| 0.60 | -2.00 | 0.32 | -2.00 | -23.79 | 95.27 | -7.66 | 156.90 | 0.3122 | 769.6 | 999999 | |
| 15.90 | -2.00 | 8.27 | -2.00 | -23.42 | 95.03 | -7.90 | 155.73 | 0.3081 | 1084.0 | 999999 | |
| 4.15 | -2.00 | 2.15 | -2.00 | -22.46 | 95.02 | -7.91 | 154.25 | 0.2939 | 1046.7 | 999999 | |
| 1.47 | 3.11 | 0.76 | 1.62 | -22.94 | 94.64 | -8.29 | 153.96 | 0.3039 | 1007.0 | 815.0 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -21.90 | 94.60 | -8.33 | 152.14 | 0.2888 | 554.0 | 544.5 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -24.99 | 94.30 | -8.63 | 156.04 | 0.3364 | -828.0 | -607.1 | |
| 1.64 | 203.72 | 0.86 | 106.93 | -23.53 | 94.34 | -8.59 | 154.07 | 0.3147 | 871.9 | 295.4 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -22.34 | 93.89 | -9.04 | 150.99 | 0.3009 | 868.0 | 731.6 | |
| 0.00 | 2.76 | 0.00 | 1.43 | -22.16 | 93.74 | -9.19 | 150.27 | 0.2995 | 852.0 | 656.6 | |
| 33.26 | -10.00 | 17.45 | -10.00 | -24.26 | 93.56 | -9.37 | 153.22 | 0.3309 | 1287.6 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -22.40 | 93.43 | -9.50 | 149.89 | 0.3054 | 784.0 | 648.5 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -22.15 | 93.35 | -9.58 | 149.24 | 0.3026 | 953.0 | 738.2 | |
| 0.35 | -10.00 | 0.18 | -10.00 | -25.02 | 92.94 | -9.99 | 152.88 | 0.3466 | 773.5 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -25.40 | 92.90 | -10.03 | 153.35 | 0.3521 | -161.0 | -210.0 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -24.67 | 92.63 | -10.30 | 151.68 | 0.3439 | 564.0 | 394.6 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -25.44 | 92.20 | -10.73 | 151.86 | 0.3581 | -790.0 | -657.0 | |
| 0.00 | 4.92 | 0.00 | 2.61 | -25.13 | 92.19 | -10.74 | 151.38 | 0.3537 | 390.0 | 257.7 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -25.57 | 92.09 | -10.85 | 151.79 | 0.3607 | -794.0 | -648.0 | |
| 0.00 | 1.56 | 0.00 | 0.83 | -26.44 | 91.90 | -11.03 | 152.63 | 0.3743 | -845.0 | -609.9 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -24.40 | 91.79 | -11.14 | 149.38 | 0.3469 | 954.0 | 817.1 | |
| 0.78 | 10.54 | 0.41 | 5.62 | -25.81 | 91.63 | -11.30 | 151.17 | 0.3676 | -970.3 | -789.9 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -24.56 | 91.74 | -11.19 | 149.52 | 0.3494 | 800.0 | 701.5 | |
| 1.73 | -24.00 | 0.92 | -24.00 | -26.05 | 91.33 | -11.60 | 150.91 | 0.3732 | -950.5 | 999999 | |
| 0.00 | 4.84 | 0.00 | 2.58 | -25.61 | 91.24 | -11.69 | 150.08 | 0.3679 | -81.0 | 43.5 | |
| 0.00 | 2.85 | 0.00 | 1.52 | -26.07 | 90.99 | -11.94 | 150.26 | 0.3762 | -580.0 | -578.6 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -26.13 | 90.75 | -12.18 | 149.86 | 0.3789 | -760.0 | -610.1 | |
| 0.00 | 11.84 | 0.00 | 6.36 | -26.56 | 90.33 | -12.60 | 149.67 | 0.3881 | -972.0 | -771.4 | |
| 3.11 | 486.24 | 1.67 | 263.61 | -25.75 | 89.30 | -13.63 | 146.49 | 0.3861 | -1158.1 | -321.5 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -27.73 | 88.98 | -13.95 | 148.87 | 0.4145 | -385.0 | -321.0 | |
| 0.60 | -31.00 | 0.32 | -31.00 | -25.27 | 89.08 | -13.85 | 145.32 | 0.3820 | 819.3 | 999999 | |
| 4.49 | -31.00 | 2.41 | -31.00 | -25.58 | 89.01 | -13.92 | 145.69 | 0.3866 | 698.4 | 999999 | |
| 3.37 | -31.00 | 1.82 | -31.00 | -26.33 | 88.85 | -14.08 | 146.58 | 0.3976 | -1260.5 | 999999 | |
| 29.20 | -31.00 | 15.81 | -31.00 | -26.86 | 88.72 | -14.21 | 147.15 | 0.4055 | -1297.1 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -30.43 | 88.17 | -14.76 | 151.07 | 0.4560 | -510.0 | -463.2 | |
| 2.85 | -31.00 | 1.53 | -31.00 | -25.76 | 88.79 | -14.14 | 145.57 | 0.3909 | 784.3 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.21 | -31.14 | 87.81 | -15.12 | 151.35 | 0.4678 | -642.0 | -541.3 | |
| 2.76 | -31.00 | 1.49 | -31.00 | -26.19 | 88.46 | -14.47 | 145.67 | 0.3993 | 643.8 | 999999 | |
| 1.12 | -31.00 | 0.61 | -31.00 | -26.47 | 88.29 | -14.64 | 145.80 | 0.4044 | -1103.2 | 999999 | |
| 0.00 | 5.18 | 0.00 | 2.79 | -25.41 | 87.71 | -15.22 | 143.10 | 0.3967 | -302.0 | -93.3 | |
| 67.13 | -31.00 | 36.51 | -31.00 | -26.50 | 87.18 | -15.75 | 143.97 | 0.4148 | -1351.9 | 999999 | |
| 0.78 | -31.00 | 0.42 | -31.00 | -25.42 | 86.89 | -16.04 | 141.72 | 0.4047 | -800.3 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -28.18 | 86.26 | -16.67 | 145.07 | 0.4434 | -894.0 | -747.9 | |
| 0.43 | 1.47 | 0.24 | 0.82 | -28.51 | 85.68 | -17.25 | 144.68 | 0.4526 | -588.4 | -490.8 | |
| 12.27 | 22.98 | 6.79 | 12.72 | -28.22 | 85.66 | -17.27 | 144.22 | 0.4494 | -1005.7 | -514.9 | |
| 1.12 | 7.26 | 0.61 | 3.95 | -25.67 | 86.06 | -16.87 | 140.83 | 0.4159 | -1052.1 | -745.2 | |
| 0.52 | -48.00 | 0.28 | -48.00 | -25.86 | 86.03 | -16.90 | 141.10 | 0.4183 | -962.0 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -26.82 | 85.50 | -17.43 | 141.84 | 0.4345 | 726.0 | 528.2 | |
| 0.52 | 9.33 | 0.29 | 5.14 | -27.07 | 85.39 | -17.54 | 142.07 | 0.4384 | 950.0 | 209.0 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -27.89 | 85.25 | -17.68 | 143.13 | 0.4492 | -755.0 | -643.5 | |
| 5.36 | 12.70 | 2.93 | 6.95 | -26.31 | 85.48 | -17.45 | 140.99 | 0.4290 | -923.9 | -661.0 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -27.54 | 85.24 | -17.69 | 142.58 | 0.4453 | 661.0 | 507.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
