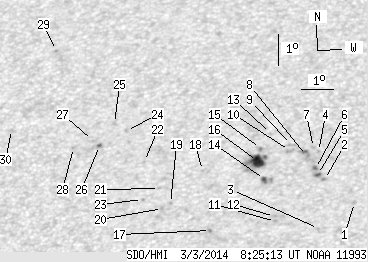

SDO HMI 2014-03-03 08:25:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.91 | 79.66 | 7.53 | 43.12 | 16.45 | 102.75 | 1.14 | 357.24 | 0.4053 | -220.5 | -339.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 08:25:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.93 | 15.22 | 105.99 | 4.38 | 349.08 | 0.3904 | -679.0 | -535.0 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 15.96 | 105.08 | 3.46 | 351.60 | 0.3996 | -775.0 | -669.8 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 14.38 | 104.86 | 3.25 | 351.51 | 0.3739 | -659.0 | -527.4 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 16.87 | 104.91 | 3.29 | 352.32 | 0.4136 | -685.0 | -545.1 | |
| 0.78 | 4.15 | 0.42 | 2.24 | 16.12 | 104.86 | 3.25 | 352.17 | 0.4017 | -1059.4 | -816.7 | |
| 0.43 | -5.00 | 0.23 | -5.00 | 16.31 | 104.80 | 3.19 | 352.38 | 0.4046 | -939.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 16.99 | 104.75 | 3.14 | 352.72 | 0.4153 | -574.0 | -420.1 | |
| 0.00 | 8.21 | 0.00 | 4.46 | 16.73 | 104.53 | 2.92 | 353.15 | 0.4108 | -843.0 | -746.5 | |
| 0.00 | 2.33 | 0.00 | 1.27 | 17.09 | 104.07 | 2.46 | 354.31 | 0.4156 | -618.0 | -529.3 | |
| 0.00 | 3.20 | 0.00 | 1.74 | 16.89 | 104.01 | 2.39 | 354.42 | 0.4124 | -950.0 | -749.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 14.60 | 103.55 | 1.93 | 354.98 | 0.3749 | -786.0 | -706.5 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 14.76 | 103.52 | 1.90 | 355.09 | 0.3774 | -597.0 | -644.6 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 17.45 | 103.42 | 1.81 | 355.87 | 0.4204 | -505.0 | -353.6 | |
| 1.56 | 6.57 | 0.84 | 3.54 | 15.95 | 103.22 | 1.61 | 356.08 | 0.3963 | -1008.4 | -808.4 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 16.96 | 103.11 | 1.49 | 356.52 | 0.4123 | -642.0 | -567.1 | |
| 10.54 | 26.61 | 5.71 | 14.40 | 16.53 | 103.01 | 1.40 | 356.68 | 0.4054 | -1048.9 | -503.6 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 14.31 | 101.55 | -0.06 | 0.17 | 0.3688 | 795.0 | 741.6 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 16.24 | 101.30 | -0.31 | 0.75 | 0.4001 | 694.0 | 609.8 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 15.18 | 100.32 | -1.29 | 3.27 | 0.3835 | 673.0 | 580.6 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 15.02 | 100.07 | -1.54 | 3.92 | 0.3812 | 814.0 | 703.1 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 15.66 | 99.98 | -1.64 | 4.04 | 0.3917 | 566.0 | 539.5 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 16.54 | 99.50 | -2.11 | 5.00 | 0.4063 | 666.0 | 480.7 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 15.31 | 99.45 | -2.16 | 5.41 | 0.3867 | 634.0 | 530.7 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 17.56 | 98.93 | -2.68 | 6.07 | 0.4233 | 694.0 | 546.5 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 17.79 | 98.55 | -3.06 | 6.85 | 0.4277 | 598.0 | 497.8 | |
| 0.60 | 1.73 | 0.33 | 0.94 | 17.07 | 98.10 | -3.51 | 8.11 | 0.4173 | 956.4 | 806.1 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 17.24 | 97.88 | -3.74 | 8.55 | 0.4204 | 738.0 | 640.2 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 17.01 | 97.29 | -4.32 | 9.96 | 0.4185 | 546.0 | 344.8 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 20.23 | 96.67 | -4.94 | 9.95 | 0.4698 | 751.0 | 606.1 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 17.63 | 95.33 | -6.28 | 13.95 | 0.4344 | 532.0 | 418.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
