SDO HMI 2014-03-03 10:00:28 UT

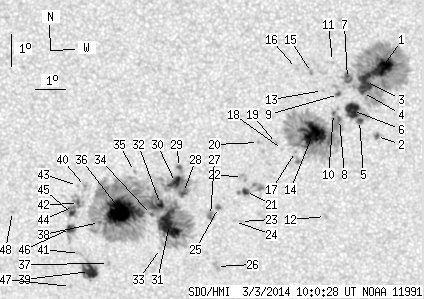

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 244.14 | 1078.14 | 129.45 | 570.67 | -25.17 | 90.79 | -9.96 | 154.30 | 0.3502 | -60.8 | -8.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.15 | 232.58 | 11.91 | 119.74 | -22.20 | 96.02 | -4.72 | 163.59 | 0.2709 | 1412.0 | 488.9 | |
| 1.30 | 2.76 | 0.67 | 1.44 | -24.33 | 95.75 | -5.00 | 164.92 | 0.3064 | 939.9 | 787.4 | |
| 15.12 | -1.00 | 7.80 | -1.00 | -22.62 | 95.46 | -5.28 | 162.27 | 0.2805 | 1163.5 | 999999 | |
| 0.69 | -1.00 | 0.36 | -1.00 | -22.96 | 95.35 | -5.40 | 162.32 | 0.2864 | 870.6 | 999999 | |
| 2.33 | 31.45 | 1.21 | 16.31 | -23.83 | 95.21 | -5.53 | 162.88 | 0.3008 | 791.1 | 486.3 | |
| 15.03 | -5.00 | 7.79 | -5.00 | -23.52 | 95.00 | -5.74 | 161.91 | 0.2969 | 1114.5 | 999999 | |
| 3.97 | -1.00 | 2.05 | -1.00 | -22.52 | 94.88 | -5.86 | 160.36 | 0.2820 | 1076.9 | 999999 | |
| 0.86 | 196.47 | 0.45 | 102.50 | -23.79 | 94.56 | -6.18 | 160.97 | 0.3035 | 719.8 | 281.3 | |
| 1.30 | 5.87 | 0.67 | 3.04 | -23.01 | 94.57 | -6.18 | 160.04 | 0.2914 | 1010.5 | 779.4 | |
| 0.60 | -8.00 | 0.31 | -8.00 | -23.60 | 94.38 | -6.37 | 160.21 | 0.3016 | 999.6 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -22.00 | 94.42 | -6.32 | 158.22 | 0.2764 | 602.0 | 459.8 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -26.81 | 93.93 | -6.81 | 162.51 | 0.3538 | 739.0 | 547.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -22.88 | 94.05 | -6.69 | 158.36 | 0.2924 | 794.0 | 601.1 | |
| 38.53 | -8.00 | 20.10 | -8.00 | -24.24 | 93.65 | -7.09 | 159.01 | 0.3157 | 1212.7 | 999999 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -22.32 | 93.73 | -7.02 | 156.60 | 0.2859 | 1033.0 | 770.6 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -22.19 | 93.25 | -7.50 | 155.01 | 0.2872 | 733.0 | 621.0 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -24.76 | 93.06 | -7.68 | 158.12 | 0.3271 | 568.0 | 523.6 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -24.69 | 92.64 | -8.11 | 156.95 | 0.3287 | 609.0 | 506.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -24.50 | 92.45 | -8.29 | 156.24 | 0.3271 | 859.0 | 708.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -24.46 | 91.86 | -8.88 | 154.71 | 0.3305 | 846.0 | 742.3 | |
| 2.94 | 14.60 | 1.56 | 7.73 | -25.98 | 91.31 | -9.43 | 155.48 | 0.3565 | -957.6 | -409.4 | |
| 0.00 | 5.27 | 0.00 | 2.79 | -25.54 | 91.25 | -9.50 | 154.75 | 0.3506 | 283.0 | 214.7 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -26.92 | 91.06 | -9.68 | 156.11 | 0.3719 | -727.0 | -661.4 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -26.92 | 90.86 | -9.89 | 155.67 | 0.3731 | -520.0 | -442.4 | |
| 1.04 | 2.59 | 0.55 | 1.38 | -26.46 | 90.36 | -10.38 | 154.03 | 0.3701 | -999.2 | -807.1 | |
| 0.00 | 4.32 | 0.00 | 2.33 | -28.33 | 90.11 | -10.63 | 155.82 | 0.3984 | -868.0 | -695.3 | |
| 0.00 | 4.58 | 0.00 | 2.45 | -26.71 | 90.07 | -10.68 | 153.73 | 0.3756 | -1045.0 | -837.7 | |
| 3.37 | 491.68 | 1.80 | 264.38 | -25.96 | 89.23 | -11.52 | 150.97 | 0.3715 | -1108.4 | -322.5 | |
| 1.12 | -28.00 | 0.60 | -28.00 | -25.18 | 89.17 | -11.57 | 149.68 | 0.3612 | 842.6 | 999999 | |
| 8.90 | -28.00 | 4.74 | -28.00 | -25.64 | 88.99 | -11.75 | 150.01 | 0.3690 | 792.7 | 999999 | |
| 34.13 | -28.00 | 18.34 | -28.00 | -26.96 | 88.65 | -12.10 | 151.22 | 0.3897 | -1242.8 | 999999 | |
| 3.63 | -28.00 | 1.94 | -28.00 | -26.32 | 88.41 | -12.33 | 149.85 | 0.3829 | 732.5 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -27.71 | 88.25 | -12.49 | 151.49 | 0.4029 | 204.0 | 181.4 | |
| 0.86 | -28.00 | 0.46 | -28.00 | -26.63 | 88.07 | -12.67 | 149.64 | 0.3897 | -1128.7 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -25.26 | 87.65 | -13.10 | 146.75 | 0.3753 | 860.0 | 584.5 | |
| 61.60 | -28.00 | 33.21 | -28.00 | -26.54 | 87.09 | -13.65 | 147.68 | 0.3967 | -1349.7 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.09 | -28.13 | 86.40 | -14.34 | 148.76 | 0.4231 | -908.0 | -682.1 | |
| 0.52 | -28.00 | 0.28 | -28.00 | -26.83 | 86.27 | -14.48 | 146.65 | 0.4076 | -622.8 | 999999 | |
| 13.82 | 24.02 | 7.58 | 13.18 | -28.37 | 85.70 | -15.04 | 147.93 | 0.4319 | -1024.6 | -601.0 | |
| 0.00 | 3.20 | 0.00 | 1.72 | -25.68 | 85.94 | -14.81 | 144.28 | 0.3962 | -1022.0 | -774.4 | |
| 0.00 | 2.85 | 0.00 | 1.56 | -27.79 | 85.44 | -15.30 | 146.67 | 0.4268 | 7.0 | 97.7 | |
| 1.81 | 22.89 | 0.98 | 12.41 | -26.21 | 85.63 | -15.12 | 144.59 | 0.4055 | -1134.8 | -730.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -25.64 | 85.67 | -15.08 | 143.74 | 0.3982 | -759.0 | -649.8 | |
| 0.35 | -42.00 | 0.19 | -42.00 | -26.30 | 85.44 | -15.30 | 144.41 | 0.4083 | -1107.5 | 999999 | |
| 2.16 | -42.00 | 1.17 | -42.00 | -26.51 | 85.34 | -15.40 | 144.59 | 0.4119 | -957.4 | 999999 | |
| 5.01 | 11.92 | 2.73 | 6.50 | -26.99 | 85.24 | -15.50 | 145.15 | 0.4186 | 868.5 | 432.6 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -28.83 | 84.97 | -15.78 | 147.38 | 0.4438 | -786.0 | -589.2 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -26.38 | 83.32 | -17.42 | 141.17 | 0.4296 | -675.0 | -563.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
