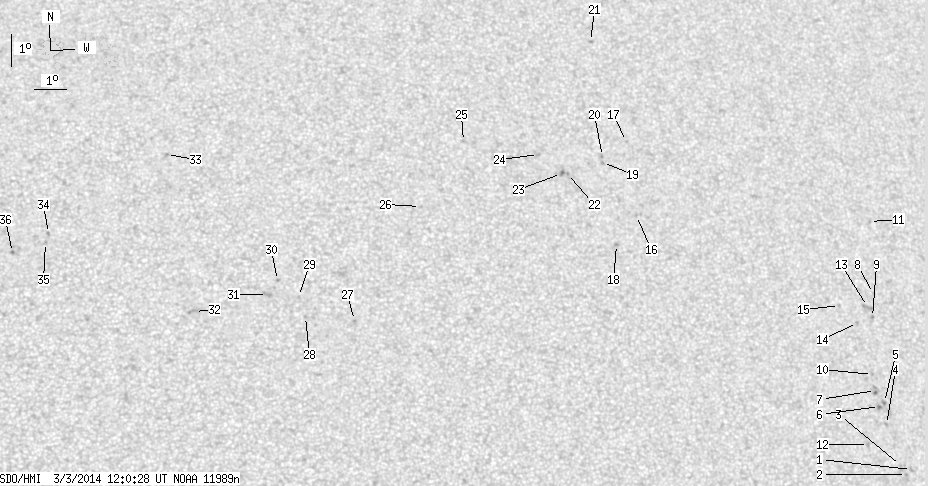

SDO HMI 2014-03-03 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 59.43 | 0.00 | 33.26 | 9.42 | 119.67 | 20.03 | 313.29 | 0.4550 | -285.5 | -215.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.25 | 0.00 | 1.32 | 4.40 | 129.86 | 30.21 | 290.19 | 0.5367 | -729.0 | -560.9 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 4.23 | 129.68 | 30.03 | 290.02 | 0.5334 | -739.0 | -639.4 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 4.50 | 129.49 | 29.84 | 290.61 | 0.5321 | -772.0 | -591.6 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 5.72 | 129.07 | 29.42 | 293.03 | 0.5333 | -764.0 | -590.1 | |
| 0.00 | 2.25 | 0.00 | 1.32 | 6.38 | 129.04 | 29.40 | 294.20 | 0.5369 | -894.0 | -678.8 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 6.25 | 128.86 | 29.21 | 294.11 | 0.5337 | -998.0 | -910.1 | |
| 0.00 | 3.71 | 0.00 | 2.17 | 6.73 | 128.76 | 29.11 | 295.02 | 0.5353 | -767.0 | -720.9 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 9.73 | 128.94 | 29.29 | 299.77 | 0.5577 | -522.0 | -546.2 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 8.98 | 128.83 | 29.18 | 298.67 | 0.5511 | -713.0 | -636.2 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 7.22 | 128.69 | 29.04 | 295.89 | 0.5375 | -728.0 | -525.9 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 11.98 | 129.05 | 29.40 | 303.12 | 0.5755 | -652.0 | -511.5 | |
| 0.00 | 2.16 | 0.00 | 1.25 | 5.07 | 128.42 | 28.77 | 292.38 | 0.5206 | -769.0 | -597.6 | |
| 0.00 | 2.59 | 0.00 | 1.54 | 9.31 | 128.69 | 29.04 | 299.32 | 0.5516 | -651.0 | -605.5 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 8.79 | 128.30 | 28.65 | 298.83 | 0.5430 | -915.0 | -759.2 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 9.28 | 127.73 | 28.08 | 300.13 | 0.5392 | 472.0 | 334.8 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 11.74 | 121.17 | 21.52 | 311.38 | 0.4806 | -794.0 | -640.3 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 14.07 | 121.06 | 21.41 | 315.06 | 0.5033 | -680.0 | -527.1 | |
| 0.00 | 1.99 | 0.00 | 1.11 | 10.79 | 120.45 | 20.80 | 310.83 | 0.4628 | -776.0 | -552.3 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 13.36 | 120.20 | 20.55 | 315.20 | 0.4867 | -830.0 | -741.1 | |
| 0.00 | 1.47 | 0.00 | 0.83 | 13.55 | 120.22 | 20.57 | 315.45 | 0.4889 | -797.0 | -629.4 | |
| 0.00 | 1.55 | 0.00 | 0.91 | 17.25 | 120.21 | 20.56 | 320.49 | 0.5293 | -733.0 | -581.3 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 12.96 | 119.03 | 19.38 | 316.28 | 0.4699 | -876.0 | -745.1 | |
| 0.00 | 2.33 | 0.00 | 1.31 | 12.96 | 118.84 | 19.19 | 316.56 | 0.4677 | -926.0 | -814.2 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 13.53 | 118.14 | 18.49 | 318.46 | 0.4670 | -666.0 | -421.2 | |
| 0.00 | 1.55 | 0.00 | 0.86 | 13.85 | 115.76 | 16.11 | 322.79 | 0.4474 | -722.0 | -535.7 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 11.75 | 114.27 | 14.62 | 322.43 | 0.4069 | -807.0 | -589.5 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 8.13 | 112.06 | 12.41 | 320.93 | 0.3390 | 903.0 | 720.8 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 8.22 | 110.56 | 10.91 | 324.65 | 0.3252 | 869.0 | 665.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 8.83 | 110.36 | 10.71 | 326.21 | 0.3318 | 717.0 | 499.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 9.31 | 109.74 | 10.09 | 328.57 | 0.3329 | 791.0 | 627.6 | |
| 0.00 | 4.06 | 0.00 | 2.12 | 8.87 | 109.42 | 9.77 | 328.68 | 0.3240 | 873.0 | 708.8 | |
| 0.00 | 4.84 | 0.00 | 2.51 | 8.31 | 107.18 | 7.54 | 334.06 | 0.2980 | 700.0 | 678.1 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 13.20 | 106.45 | 6.80 | 341.67 | 0.3685 | 774.0 | 646.3 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 10.68 | 102.81 | 3.16 | 350.02 | 0.3134 | 845.0 | 744.1 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 10.40 | 102.71 | 3.06 | 350.15 | 0.3086 | 923.0 | 687.3 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 10.08 | 101.71 | 2.06 | 353.21 | 0.3009 | 1075.0 | 907.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
