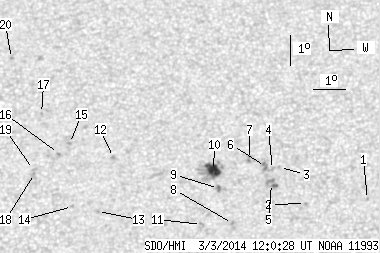

SDO HMI 2014-03-03 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.97 | 63.91 | 5.95 | 34.64 | 16.49 | 102.83 | 3.18 | 352.44 | 0.4089 | -216.8 | -361.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.61 | 15.69 | 107.78 | 8.13 | 340.67 | 0.4131 | 797.0 | 635.4 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 15.53 | 105.85 | 6.20 | 344.93 | 0.4016 | -908.0 | -828.0 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 16.69 | 105.07 | 5.42 | 347.39 | 0.4166 | -662.0 | -553.4 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 16.62 | 104.85 | 5.20 | 347.85 | 0.4148 | -774.0 | -596.3 | |
| 0.00 | 7.43 | 0.00 | 4.03 | 16.17 | 104.81 | 5.16 | 347.71 | 0.4076 | -493.0 | -818.3 | |
| 0.00 | 4.84 | 0.00 | 2.63 | 16.72 | 104.64 | 4.99 | 348.39 | 0.4156 | -859.0 | -835.8 | |
| 0.00 | 2.85 | 0.00 | 1.55 | 16.94 | 104.14 | 4.50 | 349.61 | 0.4176 | -933.0 | -647.9 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 14.86 | 103.57 | 3.92 | 350.02 | 0.3832 | -783.0 | -660.2 | |
| 0.00 | 3.02 | 0.00 | 1.63 | 15.99 | 103.16 | 3.51 | 351.50 | 0.4001 | -1147.0 | -939.8 | |
| 10.97 | 26.52 | 5.95 | 14.38 | 16.57 | 103.02 | 3.37 | 352.05 | 0.4090 | -1044.5 | -509.5 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 14.83 | 102.62 | 2.97 | 352.41 | 0.3803 | -548.0 | -615.1 | |
| 0.00 | 1.90 | 0.00 | 1.03 | 16.99 | 99.92 | 0.27 | 359.38 | 0.4119 | 840.0 | 730.7 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 15.24 | 99.42 | -0.23 | 0.58 | 0.3838 | 722.0 | 583.2 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 15.40 | 98.65 | -1.00 | 2.51 | 0.3868 | 776.0 | 601.8 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 17.45 | 98.55 | -1.10 | 2.52 | 0.4196 | 815.0 | 678.7 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 17.12 | 98.21 | -1.44 | 3.34 | 0.4147 | 963.0 | 832.6 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 18.44 | 97.66 | -1.99 | 4.34 | 0.4361 | 616.0 | 551.5 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 16.47 | 97.47 | -2.18 | 5.20 | 0.4053 | 809.0 | 569.8 | |
| 0.00 | 1.55 | 0.00 | 0.84 | 16.60 | 97.43 | -2.22 | 5.24 | 0.4074 | 859.0 | 670.8 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 20.27 | 96.69 | -2.96 | 5.99 | 0.4661 | 715.0 | 701.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
