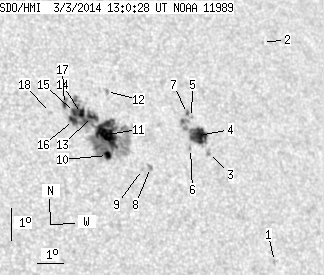

SDO HMI 2014-03-03 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.12 | 216.17 | 44.27 | 136.06 | 7.60 | 134.22 | 35.12 | 292.28 | 0.6182 | 122.7 | -66.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 1.04 | 4.08 | 139.80 | 40.70 | 284.29 | 0.6735 | -701.0 | -599.3 | |
| 0.00 | 1.04 | 0.00 | 0.72 | 10.81 | 140.10 | 41.00 | 293.44 | 0.7047 | -613.0 | -526.3 | |
| 0.00 | 2.42 | 0.00 | 1.58 | 7.18 | 137.49 | 38.39 | 289.79 | 0.6572 | 179.0 | 48.0 | |
| 18.91 | 32.30 | 12.37 | 21.10 | 7.70 | 137.16 | 38.06 | 290.72 | 0.6556 | -819.8 | -698.8 | |
| 0.00 | 0.95 | 0.00 | 0.62 | 8.24 | 136.96 | 37.86 | 291.60 | 0.6556 | -642.0 | -561.2 | |
| 0.00 | 1.47 | 0.00 | 0.95 | 7.28 | 136.82 | 37.71 | 290.29 | 0.6493 | -913.0 | -754.6 | |
| 0.52 | 2.25 | 0.34 | 1.47 | 8.35 | 136.82 | 37.72 | 291.84 | 0.6544 | -705.5 | -613.1 | |
| 0.00 | 2.76 | 0.00 | 1.75 | 6.57 | 135.25 | 36.15 | 290.11 | 0.6263 | -894.0 | -701.2 | |
| 0.00 | 1.21 | 0.00 | 0.76 | 6.49 | 134.94 | 35.84 | 290.15 | 0.6220 | -796.0 | -660.0 | |
| 4.15 | 161.59 | 2.58 | 100.72 | 6.83 | 133.69 | 34.59 | 291.39 | 0.6076 | -1027.4 | 28.6 | |
| 29.28 | -10.00 | 18.29 | -10.00 | 7.47 | 133.71 | 34.61 | 292.36 | 0.6112 | 847.4 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.36 | 8.80 | 133.84 | 34.74 | 294.27 | 0.6201 | 590.0 | 510.6 | |
| 4.66 | -10.00 | 2.90 | -10.00 | 7.99 | 133.25 | 34.15 | 293.44 | 0.6081 | 682.1 | 999999 | |
| 3.97 | -10.00 | 2.46 | -10.00 | 8.05 | 132.86 | 33.75 | 293.79 | 0.6035 | 894.0 | 999999 | |
| 2.59 | -10.00 | 1.60 | -10.00 | 8.07 | 132.60 | 33.50 | 293.98 | 0.6004 | 953.5 | 999999 | |
| 4.40 | -10.00 | 2.72 | -10.00 | 7.82 | 132.54 | 33.44 | 293.63 | 0.5982 | 531.1 | 999999 | |
| 1.64 | 4.66 | 1.01 | 2.88 | 8.29 | 132.27 | 33.16 | 294.55 | 0.5974 | 908.6 | 677.5 | |
| 0.00 | 1.81 | 0.00 | 1.11 | 8.01 | 131.74 | 32.64 | 294.47 | 0.5890 | 621.0 | 382.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
