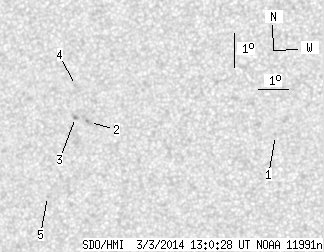

SDO HMI 2014-03-03 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.65 | 0.00 | 3.65 | -12.37 | 73.66 | -25.44 | 103.62 | 0.4336 | -500.2 | -622.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.18 | -12.86 | 79.85 | -19.25 | 108.10 | 0.3396 | 584.0 | 552.8 | |
| 0.00 | 2.76 | 0.00 | 1.52 | -12.18 | 73.79 | -25.31 | 103.22 | 0.4311 | -827.0 | -740.3 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -12.01 | 73.34 | -25.76 | 102.67 | 0.4376 | -859.0 | -743.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -11.06 | 73.43 | -25.67 | 100.53 | 0.4342 | -667.0 | -578.2 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -14.31 | 72.11 | -26.99 | 107.25 | 0.4624 | -732.0 | -531.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
