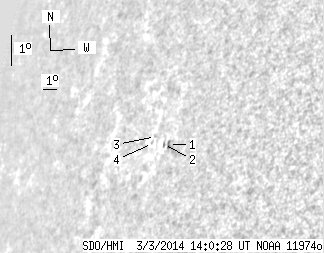

SDO HMI 2014-03-03 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.10 | 0.00 | 6.01 | 8.31 | 35.05 | -63.50 | 77.34 | 0.9094 | -334.2 | -310.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 2.51 | 8.20 | 35.45 | -63.10 | 77.37 | 0.9064 | -496.0 | -416.1 | |
| 0.00 | 1.47 | 0.00 | 1.73 | 8.24 | 35.10 | -63.45 | 77.40 | 0.9089 | -301.0 | -233.3 | |
| 0.00 | 1.21 | 0.00 | 1.46 | 8.56 | 34.46 | -64.09 | 77.20 | 0.9139 | -287.0 | -240.5 | |
| 0.00 | 0.26 | 0.00 | 0.31 | 8.36 | 34.31 | -64.24 | 77.45 | 0.9146 | -253.0 | -217.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
