SDO HMI 2014-03-03 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.82 | 150.01 | 22.46 | 129.91 | -1.61 | 153.52 | 54.97 | 273.10 | 0.8215 | -459.1 | -211.2 | |
|
previous
or next observation for the same group /

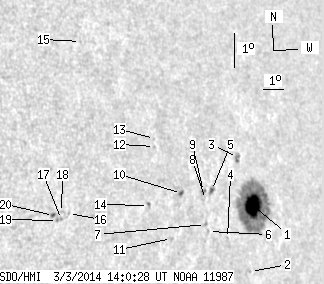

back to the solar disc SDO HMI 2014-03-03 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.97 | 122.45 | 20.19 | 107.72 | -1.60 | 154.15 | 55.60 | 273.01 | 0.8281 | -886.4 | -218.5 | |
| 0.00 | 0.86 | 0.00 | 0.75 | -3.57 | 154.17 | 55.61 | 270.63 | 0.8259 | -572.0 | -423.9 | |
| 0.00 | 4.40 | 0.00 | 3.81 | -0.24 | 153.33 | 54.78 | 274.78 | 0.8220 | -600.0 | -475.3 | |
| 0.00 | 0.95 | 0.00 | 0.81 | -2.71 | 152.90 | 54.35 | 271.85 | 0.8143 | 274.0 | 251.3 | |
| 1.21 | 3.63 | 1.01 | 3.03 | -1.37 | 152.02 | 53.47 | 273.65 | 0.8072 | -601.2 | -475.3 | |
| 0.00 | 0.95 | 0.00 | 0.79 | -2.60 | 151.93 | 53.38 | 272.14 | 0.8046 | -436.0 | -379.6 | |
| 0.00 | 1.99 | 0.00 | 1.64 | -2.41 | 151.77 | 53.22 | 272.40 | 0.8031 | -628.0 | -546.5 | |
| 0.00 | 0.35 | 0.00 | 0.29 | -1.66 | 151.73 | 53.18 | 273.33 | 0.8038 | -506.0 | -509.2 | |
| 0.00 | 1.99 | 0.00 | 1.64 | -1.44 | 151.63 | 53.07 | 273.63 | 0.8030 | -829.0 | -742.5 | |
| 0.95 | 2.07 | 0.77 | 1.67 | -1.60 | 150.55 | 52.00 | 273.61 | 0.7915 | -799.4 | -700.8 | |
| 0.00 | 1.21 | 0.00 | 0.96 | -2.99 | 150.13 | 51.58 | 271.93 | 0.7852 | -581.0 | -470.0 | |
| 0.00 | 0.78 | 0.00 | 0.61 | -0.32 | 149.23 | 50.68 | 275.47 | 0.7795 | 441.0 | 331.9 | |
| 0.00 | 0.52 | 0.00 | 0.41 | -0.08 | 149.23 | 50.68 | 275.78 | 0.7799 | 276.0 | 260.2 | |
| 0.00 | 2.07 | 0.00 | 1.61 | -2.12 | 148.99 | 50.44 | 273.23 | 0.7740 | 540.0 | 484.0 | |
| 0.00 | 0.69 | 0.00 | 0.51 | 2.52 | 145.93 | 47.38 | 279.93 | 0.7487 | 580.0 | 534.0 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -2.69 | 145.40 | 46.85 | 273.09 | 0.7321 | 328.0 | 303.4 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -2.90 | 145.11 | 46.55 | 272.86 | 0.7283 | 491.0 | 457.6 | |
| 0.00 | 0.52 | 0.00 | 0.37 | -2.69 | 145.09 | 46.54 | 273.15 | 0.7285 | 433.0 | 416.2 | |
| 0.00 | 1.21 | 0.00 | 0.87 | -2.94 | 144.93 | 46.38 | 272.83 | 0.7262 | 641.0 | 538.4 | |
| 0.69 | 1.73 | 0.49 | 1.24 | -2.81 | 144.75 | 46.20 | 273.04 | 0.7243 | 772.5 | 683.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
