SDO HMI 2014-03-03 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 56.64 | 0.00 | 31.92 | 8.76 | 118.72 | 21.27 | 310.99 | 0.4615 | -76.6 | -85.9 | |
|
previous
or next observation for the same group /

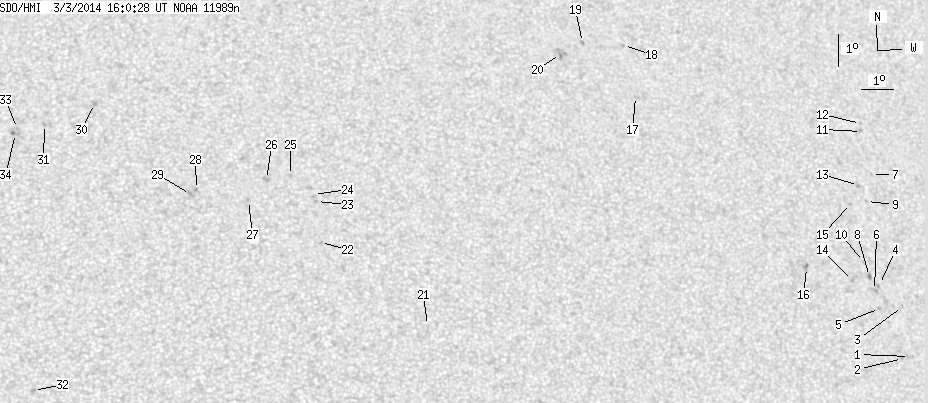

back to the solar disc SDO HMI 2014-03-03 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.42 | 0.00 | 1.45 | 4.30 | 130.13 | 32.68 | 288.49 | 0.5700 | -553.0 | -534.3 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 4.23 | 129.88 | 32.43 | 288.51 | 0.5662 | -766.0 | -618.2 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 5.81 | 129.97 | 32.52 | 291.07 | 0.5754 | -517.0 | -431.2 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 6.43 | 129.20 | 31.75 | 292.58 | 0.5686 | -566.0 | -651.6 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 5.70 | 129.15 | 31.70 | 291.41 | 0.5639 | -731.0 | -562.6 | |
| 0.00 | 2.85 | 0.00 | 1.71 | 6.24 | 129.01 | 31.56 | 292.39 | 0.5650 | -793.0 | -611.4 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 9.82 | 129.23 | 31.78 | 297.88 | 0.5893 | -629.0 | -531.2 | |
| 0.00 | 2.59 | 0.00 | 1.55 | 6.65 | 128.87 | 31.42 | 293.17 | 0.5654 | -928.0 | -773.8 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 8.96 | 128.96 | 31.51 | 296.78 | 0.5805 | -625.0 | -555.0 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 7.10 | 128.69 | 31.24 | 294.03 | 0.5657 | -719.0 | -618.8 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 11.14 | 129.03 | 31.58 | 300.02 | 0.5956 | -647.0 | -539.9 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 11.39 | 129.02 | 31.57 | 300.39 | 0.5973 | -487.0 | -398.2 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 9.44 | 128.73 | 31.28 | 297.70 | 0.5806 | -865.0 | -727.6 | |
| 0.00 | 1.55 | 0.00 | 0.92 | 6.49 | 128.26 | 30.81 | 293.34 | 0.5564 | -938.0 | -787.8 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 8.86 | 128.39 | 30.94 | 297.06 | 0.5726 | -801.0 | -619.5 | |
| 0.00 | 2.85 | 0.00 | 1.67 | 6.79 | 126.69 | 29.24 | 295.01 | 0.5374 | 740.0 | 666.0 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 11.77 | 121.34 | 23.89 | 308.48 | 0.5084 | -842.0 | -610.8 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 13.37 | 121.10 | 23.65 | 311.20 | 0.5207 | -624.0 | -530.5 | |
| 0.00 | 1.64 | 0.00 | 0.94 | 13.40 | 119.74 | 22.29 | 312.93 | 0.5059 | -733.0 | -571.4 | |
| 0.00 | 8.20 | 0.00 | 4.67 | 13.01 | 118.98 | 21.53 | 313.35 | 0.4936 | -964.0 | -677.8 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 4.41 | 114.26 | 16.81 | 304.27 | 0.3503 | 2.0 | -2.9 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 6.83 | 111.01 | 13.56 | 315.81 | 0.3355 | 675.0 | 525.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 8.09 | 110.93 | 13.48 | 318.49 | 0.3498 | 862.0 | 750.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 8.30 | 110.85 | 13.40 | 319.07 | 0.3515 | 534.0 | 520.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 8.87 | 110.16 | 12.71 | 321.61 | 0.3515 | 874.0 | 653.8 | |
| 0.00 | 2.94 | 0.00 | 1.55 | 8.72 | 109.41 | 11.96 | 323.03 | 0.3422 | 831.0 | 737.7 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 8.06 | 108.84 | 11.39 | 323.19 | 0.3278 | 665.0 | 589.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 8.37 | 107.26 | 9.81 | 327.74 | 0.3172 | 891.0 | 788.8 | |
| 0.00 | 2.85 | 0.00 | 1.49 | 8.21 | 107.07 | 9.62 | 327.97 | 0.3133 | 912.0 | 681.5 | |
| 0.00 | 2.76 | 0.00 | 1.45 | 10.98 | 104.22 | 6.77 | 339.63 | 0.3340 | 878.0 | 664.8 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 10.31 | 102.69 | 5.24 | 343.38 | 0.3154 | 856.0 | 649.9 | |
| 0.00 | 1.55 | 0.00 | 0.78 | 2.17 | 102.27 | 4.82 | 332.75 | 0.1841 | 826.0 | 700.7 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 10.18 | 101.87 | 4.42 | 345.76 | 0.3096 | 770.0 | 599.3 | |
| 0.00 | 2.94 | 0.00 | 1.53 | 10.02 | 101.80 | 4.35 | 345.83 | 0.3068 | 806.0 | 787.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
