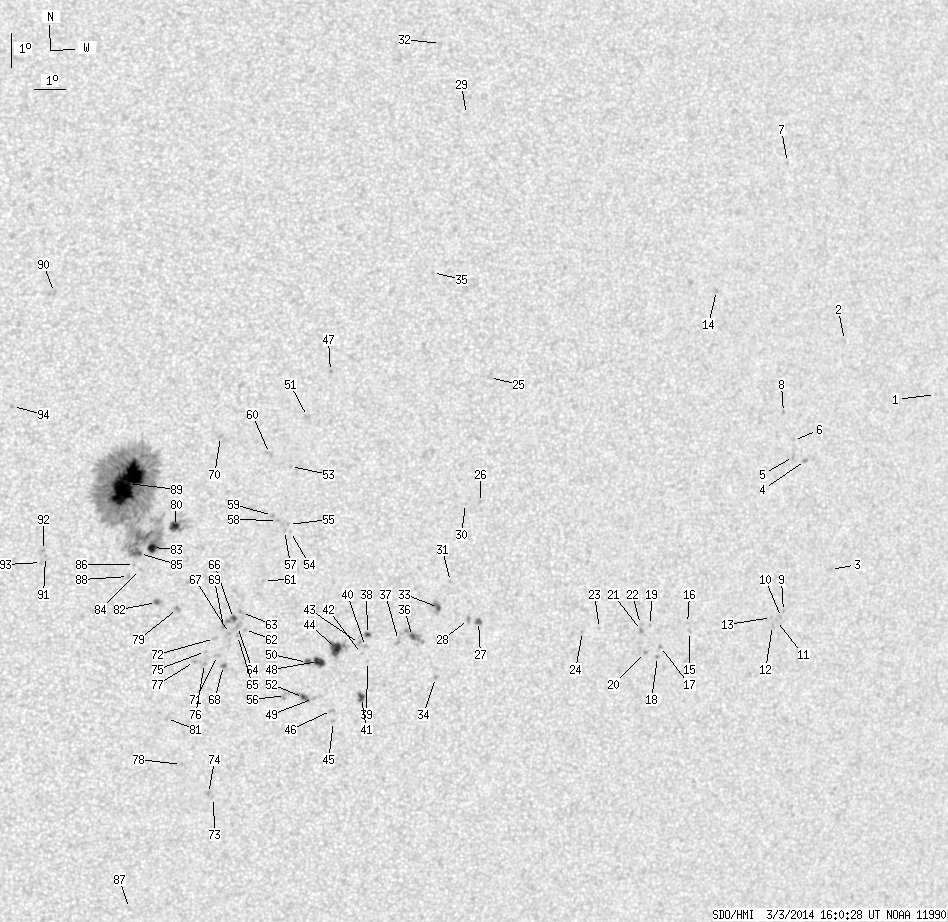

SDO HMI 2014-03-03 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.00 | 720.70 | 54.49 | 368.09 | -13.35 | 109.13 | 11.68 | 240.02 | 0.2281 | 227.5 | 191.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.63 | -8.45 | 133.14 | 35.69 | 265.58 | 0.5811 | 446.0 | 330.8 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -7.07 | 129.72 | 32.27 | 268.22 | 0.5322 | 528.0 | 484.8 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -13.90 | 130.01 | 32.56 | 255.48 | 0.5418 | 687.0 | 531.7 | |
| 0.00 | 1.81 | 0.00 | 1.05 | -10.72 | 128.69 | 31.24 | 261.22 | 0.5177 | 758.0 | 635.9 | |
| 0.00 | 2.59 | 0.00 | 1.49 | -10.62 | 128.25 | 30.80 | 261.34 | 0.5112 | 807.0 | 601.6 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -10.15 | 128.20 | 30.75 | 262.27 | 0.5100 | 666.0 | 474.0 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -1.91 | 127.49 | 30.04 | 278.62 | 0.5081 | 663.0 | 550.7 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -9.34 | 127.77 | 30.32 | 263.83 | 0.5031 | 785.0 | 667.9 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -15.26 | 128.53 | 31.08 | 252.50 | 0.5243 | 739.0 | 648.6 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -15.44 | 128.49 | 31.04 | 252.14 | 0.5243 | 756.0 | 686.3 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -15.54 | 128.32 | 30.87 | 251.89 | 0.5223 | 668.0 | 513.3 | |
| 0.00 | 1.90 | 0.00 | 1.10 | -15.70 | 128.21 | 30.76 | 251.55 | 0.5211 | 683.0 | 635.3 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -15.46 | 128.13 | 30.68 | 251.96 | 0.5193 | 828.0 | 650.3 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -5.86 | 125.22 | 27.76 | 271.18 | 0.4654 | 969.0 | 797.7 | |
| 0.00 | 1.64 | 0.00 | 0.93 | -16.05 | 125.32 | 27.87 | 249.57 | 0.4813 | 688.0 | 548.5 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -15.81 | 125.21 | 27.76 | 249.99 | 0.4789 | 754.0 | 648.2 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -16.55 | 124.38 | 26.93 | 248.04 | 0.4701 | 822.0 | 596.3 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -16.86 | 124.32 | 26.87 | 247.38 | 0.4706 | 944.0 | 773.3 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -15.94 | 123.95 | 26.50 | 249.06 | 0.4612 | 888.0 | 691.9 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -16.76 | 123.89 | 26.44 | 247.32 | 0.4640 | 856.0 | 663.8 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -16.11 | 123.66 | 26.21 | 248.54 | 0.4578 | 989.0 | 874.3 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -15.93 | 123.60 | 26.15 | 248.88 | 0.4562 | 678.0 | 513.9 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -16.12 | 122.22 | 24.77 | 247.62 | 0.4371 | 747.0 | 501.5 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -16.24 | 121.66 | 24.21 | 246.98 | 0.4295 | 842.0 | 696.6 | |
| 0.00 | 2.24 | 0.00 | 1.19 | -8.81 | 117.92 | 20.47 | 264.14 | 0.3489 | 0.0 | -5.3 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -12.54 | 117.88 | 20.43 | 253.61 | 0.3568 | -822.0 | -710.1 | |
| 1.73 | 3.45 | 0.92 | 1.85 | -16.10 | 118.16 | 20.71 | 244.51 | 0.3780 | 1044.8 | 794.8 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -16.05 | 117.82 | 20.37 | 244.31 | 0.3728 | 1109.0 | 908.0 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -1.02 | 116.95 | 19.50 | 286.82 | 0.3502 | -10.0 | 1.8 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -12.59 | 117.40 | 19.95 | 253.16 | 0.3495 | -745.0 | -627.1 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -14.94 | 117.12 | 19.67 | 246.53 | 0.3561 | 758.0 | 536.1 | |
| 0.00 | 2.16 | 0.00 | 1.14 | 1.07 | 116.14 | 18.69 | 293.27 | 0.3502 | -3.0 | -4.4 | |
| 1.30 | 8.46 | 0.69 | 4.48 | -15.73 | 116.80 | 19.35 | 244.13 | 0.3560 | 1050.3 | 828.7 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -17.84 | 116.93 | 19.47 | 238.96 | 0.3720 | 742.0 | 599.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -5.77 | 115.97 | 18.52 | 273.44 | 0.3180 | 753.0 | 635.8 | |
| 1.73 | 9.67 | 0.91 | 5.11 | -16.64 | 116.04 | 18.59 | 240.94 | 0.3510 | 1145.3 | 840.0 | |
| 0.00 | 3.02 | 0.00 | 1.59 | -16.77 | 115.60 | 18.15 | 240.06 | 0.3456 | 914.0 | 742.1 | |
| 1.21 | 2.59 | 0.63 | 1.36 | -16.63 | 114.57 | 17.12 | 239.13 | 0.3301 | -825.7 | -699.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -17.44 | 114.65 | 17.20 | 237.08 | 0.3375 | -673.0 | -457.5 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -16.99 | 114.54 | 17.09 | 238.11 | 0.3325 | -690.0 | -539.6 | |
| 2.59 | 4.75 | 1.37 | 2.50 | -18.53 | 114.56 | 17.11 | 234.19 | 0.3455 | 1045.3 | 855.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -17.21 | 114.43 | 16.98 | 237.39 | 0.3327 | -591.0 | -528.9 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -16.91 | 114.34 | 16.89 | 238.06 | 0.3290 | -787.0 | -705.6 | |
| 8.98 | 18.30 | 4.69 | 9.57 | -17.08 | 113.58 | 16.13 | 236.48 | 0.3199 | -1088.6 | -668.4 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -19.29 | 113.72 | 16.27 | 231.05 | 0.3415 | -705.0 | -581.1 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -18.96 | 113.62 | 16.17 | 231.70 | 0.3371 | -733.0 | -566.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -8.82 | 112.89 | 15.44 | 263.01 | 0.2662 | 923.0 | 803.0 | |
| 5.70 | 7.68 | 2.97 | 4.01 | -17.49 | 113.06 | 15.61 | 234.57 | 0.3164 | -1015.5 | -766.0 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -18.62 | 113.00 | 15.55 | 231.54 | 0.3259 | -845.0 | -735.4 | |
| 1.47 | 2.68 | 0.76 | 1.39 | -17.53 | 112.71 | 15.26 | 233.89 | 0.3121 | -1032.2 | -911.3 | |
| 0.00 | 2.42 | 0.00 | 1.24 | -10.18 | 112.23 | 14.78 | 257.52 | 0.2584 | 808.0 | 612.8 | |
| 1.90 | 6.22 | 0.99 | 3.25 | -18.60 | 112.67 | 15.22 | 231.04 | 0.3215 | -949.1 | -728.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.68 | 111.77 | 14.32 | 251.41 | 0.2568 | 953.0 | 703.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.62 | 111.88 | 14.43 | 244.57 | 0.2694 | -670.0 | -507.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.41 | 111.81 | 14.36 | 245.18 | 0.2669 | -789.0 | -605.8 | |
| 0.00 | 4.23 | 0.00 | 2.21 | -18.55 | 112.09 | 14.64 | 230.11 | 0.3136 | -860.0 | -747.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -13.60 | 111.69 | 14.24 | 244.38 | 0.2664 | -931.0 | -764.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -13.30 | 111.45 | 14.00 | 245.07 | 0.2609 | -855.0 | -740.4 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -13.16 | 111.29 | 13.84 | 245.35 | 0.2574 | -883.0 | -753.4 | |
| 0.00 | 3.37 | 0.00 | 1.72 | -11.32 | 111.10 | 13.65 | 252.11 | 0.2443 | 798.0 | 759.3 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -15.11 | 111.12 | 13.67 | 238.37 | 0.2692 | -748.0 | -597.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -16.60 | 110.62 | 13.17 | 232.76 | 0.2755 | -700.0 | -688.9 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -16.09 | 110.49 | 13.04 | 234.06 | 0.2689 | -785.0 | -773.6 | |
| 0.00 | 5.09 | 0.00 | 2.62 | -16.51 | 110.39 | 12.94 | 232.56 | 0.2716 | -1016.0 | -794.7 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -16.79 | 110.41 | 12.96 | 231.78 | 0.2745 | -779.0 | -629.9 | |
| 1.64 | 5.09 | 0.84 | 2.62 | -16.28 | 110.25 | 12.80 | 233.00 | 0.2674 | -1215.8 | -917.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -16.73 | 110.15 | 12.70 | 231.41 | 0.2706 | -964.0 | -833.5 | |
| 0.52 | 2.76 | 0.27 | 1.42 | -17.70 | 110.03 | 12.57 | 228.33 | 0.2789 | -1000.5 | -775.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -16.53 | 109.95 | 12.50 | 231.61 | 0.2659 | -1154.0 | -937.8 | |
| 0.00 | 2.42 | 0.00 | 1.23 | -10.85 | 109.56 | 12.11 | 252.27 | 0.2173 | 1015.0 | 726.7 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -17.40 | 109.81 | 12.36 | 228.71 | 0.2731 | -1004.0 | -778.0 | |
| 0.00 | 2.16 | 0.00 | 1.11 | -16.89 | 109.68 | 12.23 | 229.92 | 0.2662 | -849.0 | -750.2 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -21.72 | 110.02 | 12.57 | 218.62 | 0.3253 | -692.0 | -607.2 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -21.60 | 109.85 | 12.39 | 218.49 | 0.3221 | -904.0 | -773.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -17.29 | 109.42 | 11.97 | 228.16 | 0.2671 | -912.0 | -768.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -17.66 | 109.42 | 11.97 | 227.11 | 0.2709 | -872.0 | -766.6 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -17.60 | 109.09 | 11.64 | 226.51 | 0.2664 | -1018.0 | -817.3 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -20.74 | 108.90 | 11.45 | 218.19 | 0.3015 | -804.0 | -682.9 | |
| 0.00 | 1.99 | 0.00 | 1.01 | -16.02 | 108.46 | 11.01 | 229.82 | 0.2414 | -977.0 | -839.6 | |
| 5.27 | 15.54 | 2.67 | 7.88 | -13.57 | 108.25 | 10.80 | 238.29 | 0.2150 | -1082.2 | -387.8 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -19.35 | 108.31 | 10.86 | 219.98 | 0.2780 | -750.0 | -632.8 | |
| 0.78 | 3.89 | 0.40 | 1.98 | -15.85 | 107.79 | 10.34 | 228.67 | 0.2310 | -1099.4 | -878.2 | |
| 5.53 | 509.21 | 2.80 | 256.73 | -14.21 | 107.59 | 10.14 | 234.14 | 0.2116 | -896.9 | 296.3 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -14.87 | 107.25 | 9.80 | 230.66 | 0.2136 | -797.0 | -511.9 | |
| 0.86 | -83.00 | 0.44 | -83.00 | -14.39 | 107.19 | 9.74 | 232.35 | 0.2080 | -1064.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -14.73 | 107.05 | 9.60 | 230.67 | 0.2095 | -960.0 | -665.9 | |
| 0.00 | 2.42 | 0.00 | 1.28 | -25.22 | 107.54 | 10.09 | 207.04 | 0.3502 | -13.0 | -7.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -15.09 | 106.88 | 9.43 | 228.82 | 0.2112 | -840.0 | -690.9 | |
| 65.79 | -83.00 | 33.14 | -83.00 | -12.31 | 106.74 | 9.29 | 240.25 | 0.1825 | 1470.3 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.08 | -6.67 | 104.39 | 6.94 | 274.24 | 0.1209 | -890.0 | -751.1 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -14.53 | 104.28 | 6.83 | 221.99 | 0.1730 | 990.0 | 737.9 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -14.35 | 104.22 | 6.77 | 222.44 | 0.1700 | 1048.0 | 818.1 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -14.71 | 104.17 | 6.72 | 220.79 | 0.1739 | 887.0 | 708.6 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -10.07 | 103.17 | 5.72 | 242.93 | 0.1108 | -805.0 | -723.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
