SDO HMI 2014-03-03 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.23 | 205.55 | 45.39 | 133.96 | 7.69 | 134.07 | 37.72 | 290.93 | 0.6512 | 192.0 | -8.5 | |
|
previous
or next observation for the same group /

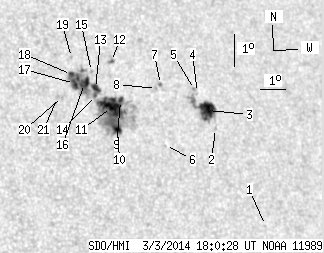

back to the solar disc SDO HMI 2014-03-03 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.36 | 4.32 | 139.42 | 43.07 | 283.74 | 0.7034 | -614.0 | -483.3 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 7.12 | 137.66 | 41.31 | 288.32 | 0.6924 | 57.0 | 103.9 | |
| 19.60 | 32.72 | 13.39 | 22.33 | 7.65 | 137.40 | 41.05 | 289.17 | 0.6914 | -811.0 | -621.1 | |
| 0.00 | 0.52 | 0.00 | 0.35 | 8.18 | 137.07 | 40.72 | 290.04 | 0.6897 | -417.0 | -348.0 | |
| 0.00 | 1.73 | 0.00 | 1.18 | 8.26 | 136.96 | 40.61 | 290.21 | 0.6888 | -651.0 | -519.5 | |
| 0.00 | 0.43 | 0.00 | 0.29 | 6.43 | 135.62 | 39.27 | 288.30 | 0.6649 | -650.0 | -580.4 | |
| 0.00 | 1.64 | 0.00 | 1.10 | 8.30 | 135.63 | 39.28 | 290.94 | 0.6731 | 552.0 | 413.5 | |
| 0.00 | 1.29 | 0.00 | 0.86 | 8.17 | 135.46 | 39.11 | 290.84 | 0.6704 | 661.0 | 456.1 | |
| 2.24 | 156.51 | 1.46 | 100.91 | 7.68 | 134.02 | 37.67 | 290.91 | 0.6507 | 631.9 | 32.1 | |
| 3.28 | -9.00 | 2.12 | -9.00 | 6.78 | 133.81 | 37.47 | 289.71 | 0.6440 | -1017.4 | 999999 | |
| 24.26 | -9.00 | 15.69 | -9.00 | 7.44 | 133.65 | 37.30 | 290.76 | 0.6450 | 828.1 | 999999 | |
| 0.78 | 3.11 | 0.51 | 2.03 | 8.87 | 133.81 | 37.46 | 292.72 | 0.6539 | 714.6 | 541.0 | |
| 4.06 | -9.00 | 2.61 | -9.00 | 7.98 | 133.11 | 36.76 | 291.85 | 0.6408 | 548.4 | 999999 | |
| 0.60 | -9.00 | 0.39 | -9.00 | 7.76 | 133.08 | 36.74 | 291.55 | 0.6395 | -715.6 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.89 | 8.50 | 133.01 | 36.67 | 292.65 | 0.6423 | 636.0 | 530.1 | |
| 7.51 | -9.00 | 4.81 | -9.00 | 8.10 | 132.71 | 36.36 | 292.26 | 0.6365 | 795.9 | 999999 | |
| 4.40 | -9.00 | 2.81 | -9.00 | 8.08 | 132.33 | 35.98 | 292.44 | 0.6317 | 1033.4 | 999999 | |
| 2.50 | -9.00 | 1.60 | -9.00 | 8.35 | 132.25 | 35.90 | 292.89 | 0.6321 | 884.0 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 8.87 | 132.31 | 35.96 | 293.62 | 0.6356 | 476.0 | 350.3 | |
| 0.00 | 1.55 | 0.00 | 0.98 | 7.64 | 131.84 | 35.50 | 292.09 | 0.6234 | 606.0 | 571.6 | |
| 0.00 | 2.07 | 0.00 | 1.31 | 7.60 | 131.65 | 35.31 | 292.13 | 0.6207 | 514.0 | 488.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
