SDO HMI 2014-03-03 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 211.91 | 990.51 | 111.16 | 519.14 | -25.17 | 90.89 | -5.46 | 165.73 | 0.3252 | -88.4 | 4.9 | |
|
previous
or next observation for the same group /

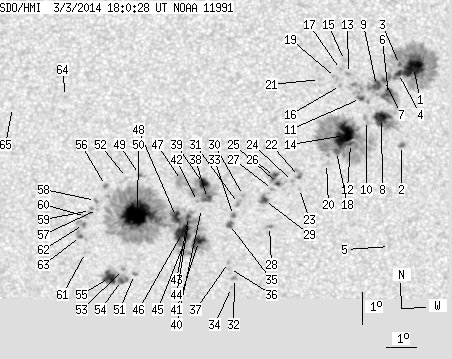

back to the solar disc SDO HMI 2014-03-03 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.29 | 251.81 | 12.96 | 129.28 | -22.06 | 96.06 | -0.29 | 178.95 | 0.2571 | 1363.7 | 574.9 | |
| 0.86 | 3.28 | 0.45 | 1.70 | -24.47 | 95.66 | -0.69 | 177.88 | 0.2978 | 951.0 | 783.5 | |
| 0.78 | -1.00 | 0.40 | -1.00 | -21.97 | 95.61 | -0.74 | 177.31 | 0.2557 | 1000.6 | 999999 | |
| 2.07 | -1.00 | 1.06 | -1.00 | -22.24 | 95.58 | -0.77 | 177.25 | 0.2604 | 1308.9 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -27.64 | 95.23 | -1.11 | 177.17 | 0.3507 | -3.0 | -10.6 | |
| 7.17 | -1.00 | 3.69 | -1.00 | -22.89 | 95.25 | -1.10 | 176.26 | 0.2716 | 1061.1 | 999999 | |
| 1.29 | -1.00 | 0.66 | -1.00 | -22.46 | 95.13 | -1.22 | 175.71 | 0.2645 | 1231.4 | 999999 | |
| 14.50 | -1.00 | 7.49 | -1.00 | -23.63 | 95.02 | -1.33 | 175.69 | 0.2844 | 1124.9 | 999999 | |
| 5.52 | -1.00 | 2.84 | -1.00 | -22.61 | 94.87 | -1.48 | 174.86 | 0.2674 | 1199.5 | 999999 | |
| 0.00 | 5.01 | 0.00 | 2.59 | -23.69 | 94.53 | -1.82 | 174.14 | 0.2861 | 856.0 | 748.8 | |
| 1.81 | -1.00 | 0.93 | -1.00 | -23.01 | 94.34 | -2.00 | 173.25 | 0.2750 | 994.3 | 999999 | |
| 1.47 | 173.34 | 0.76 | 89.88 | -24.40 | 94.00 | -2.35 | 172.78 | 0.2989 | 962.0 | 340.8 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -22.24 | 93.97 | -2.38 | 171.57 | 0.2629 | 1012.0 | 791.0 | |
| 25.81 | -12.00 | 13.37 | -12.00 | -24.15 | 93.80 | -2.54 | 172.08 | 0.2952 | 1354.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -21.84 | 93.85 | -2.50 | 170.89 | 0.2566 | 900.0 | 762.6 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -22.60 | 93.71 | -2.64 | 170.89 | 0.2698 | 912.0 | 775.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -22.11 | 93.72 | -2.63 | 170.60 | 0.2615 | 974.0 | 811.4 | |
| 2.59 | -12.00 | 1.35 | -12.00 | -24.65 | 93.53 | -2.82 | 171.52 | 0.3040 | 807.2 | 999999 | |
| 0.00 | 3.45 | 0.00 | 1.77 | -22.36 | 93.55 | -2.80 | 170.19 | 0.2661 | 768.0 | 770.2 | |
| 0.00 | 3.37 | 0.00 | 1.75 | -25.02 | 93.19 | -3.15 | 170.74 | 0.3110 | 725.0 | 569.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -22.41 | 93.04 | -3.31 | 168.48 | 0.2686 | 883.0 | 699.6 | |
| 0.86 | 5.87 | 0.45 | 3.07 | -25.42 | 92.29 | -4.05 | 168.45 | 0.3202 | 743.0 | -107.8 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -25.79 | 92.28 | -4.07 | 168.66 | 0.3263 | 234.0 | 302.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -25.57 | 92.06 | -4.29 | 167.91 | 0.3235 | -154.0 | -130.4 | |
| 1.38 | 10.79 | 0.72 | 5.65 | -25.63 | 91.56 | -4.79 | 166.60 | 0.3262 | -997.0 | -151.1 | |
| 2.59 | -25.00 | 1.35 | -25.00 | -25.41 | 91.47 | -4.88 | 166.18 | 0.3230 | 258.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -25.82 | 91.39 | -4.96 | 166.29 | 0.3299 | -773.0 | -530.5 | |
| 0.00 | 2.59 | 0.00 | 1.37 | -26.98 | 91.23 | -5.11 | 166.78 | 0.3490 | -1152.0 | -919.6 | |
| 3.19 | 6.39 | 1.68 | 3.36 | -26.16 | 91.11 | -5.24 | 165.83 | 0.3364 | -1054.2 | -793.9 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -25.99 | 90.42 | -5.93 | 163.91 | 0.3368 | -948.0 | -821.0 | |
| 0.00 | 3.54 | 0.00 | 1.86 | -26.24 | 90.24 | -6.11 | 163.69 | 0.3415 | -1085.0 | -845.9 | |
| 0.00 | 2.42 | 0.00 | 1.29 | -28.61 | 89.96 | -6.38 | 165.03 | 0.3797 | -841.0 | -730.8 | |
| 0.69 | 2.24 | 0.36 | 1.19 | -26.62 | 90.05 | -6.30 | 163.56 | 0.3482 | -928.6 | -725.9 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -28.90 | 89.84 | -6.51 | 164.99 | 0.3846 | -724.0 | -546.3 | |
| 2.24 | 4.32 | 1.19 | 2.28 | -26.90 | 89.90 | -6.45 | 163.45 | 0.3533 | -965.1 | -756.2 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -28.29 | 89.81 | -6.53 | 164.45 | 0.3753 | -846.0 | -632.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -28.10 | 89.79 | -6.56 | 164.24 | 0.3725 | -904.0 | -790.3 | |
| 3.80 | 40.75 | 2.00 | 21.45 | -26.07 | 89.21 | -7.13 | 160.98 | 0.3439 | -1016.3 | 20.7 | |
| 6.91 | -38.00 | 3.63 | -38.00 | -25.60 | 89.11 | -7.24 | 160.22 | 0.3372 | 970.0 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -26.38 | 88.99 | -7.35 | 160.78 | 0.3498 | -33.0 | -56.8 | |
| 9.06 | 378.63 | 4.82 | 201.31 | -27.42 | 88.82 | -7.53 | 161.43 | 0.3666 | -1113.5 | -443.9 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -26.16 | 88.87 | -7.47 | 160.25 | 0.3471 | -876.0 | -730.0 | |
| 1.81 | -41.00 | 0.96 | -41.00 | -26.62 | 88.54 | -7.81 | 159.97 | 0.3560 | -1143.5 | 999999 | |
| 0.52 | -41.00 | 0.27 | -41.00 | -26.78 | 88.53 | -7.82 | 160.11 | 0.3585 | -1299.7 | 999999 | |
| 0.86 | -41.00 | 0.46 | -41.00 | -27.51 | 88.31 | -8.04 | 160.36 | 0.3706 | -727.5 | 999999 | |
| 17.87 | -41.00 | 9.50 | -41.00 | -27.13 | 88.30 | -8.04 | 159.95 | 0.3649 | -1181.1 | 999999 | |
| 0.00 | 14.93 | 0.00 | 7.86 | -25.49 | 88.39 | -7.96 | 158.31 | 0.3398 | 311.0 | 350.6 | |
| 7.68 | -41.00 | 4.07 | -41.00 | -26.65 | 88.14 | -8.21 | 159.06 | 0.3587 | 687.6 | 999999 | |
| 0.52 | 3.02 | 0.27 | 1.59 | -25.28 | 87.00 | -9.34 | 154.74 | 0.3456 | -1011.2 | -746.9 | |
| 48.69 | -41.00 | 25.88 | -41.00 | -26.50 | 86.84 | -9.51 | 155.95 | 0.3645 | -1464.4 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -28.43 | 86.56 | -9.79 | 157.62 | 0.3943 | -890.0 | -754.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -25.36 | 86.56 | -9.78 | 153.85 | 0.3499 | 399.0 | 260.3 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -28.26 | 86.20 | -10.15 | 156.71 | 0.3942 | -1078.0 | -843.1 | |
| 2.16 | 28.31 | 1.17 | 15.29 | -28.61 | 86.10 | -10.25 | 156.90 | 0.3998 | -937.1 | -641.3 | |
| 10.19 | -54.00 | 5.50 | -54.00 | -28.50 | 85.70 | -10.65 | 155.99 | 0.4009 | -1007.9 | 999999 | |
| 0.35 | 1.90 | 0.18 | 1.01 | -25.60 | 85.84 | -10.51 | 152.57 | 0.3586 | -955.8 | -735.8 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -26.34 | 85.50 | -10.84 | 152.89 | 0.3716 | -729.0 | -610.8 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -26.06 | 85.46 | -10.88 | 152.41 | 0.3679 | -901.0 | -797.7 | |
| 0.00 | 3.45 | 0.00 | 1.84 | -26.37 | 85.26 | -11.08 | 152.43 | 0.3737 | -620.0 | -740.4 | |
| 0.00 | 2.33 | 0.00 | 1.25 | -26.55 | 85.08 | -11.27 | 152.30 | 0.3777 | -945.0 | -704.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -27.69 | 84.96 | -11.39 | 153.56 | 0.3944 | 635.0 | 378.7 | |
| 0.52 | 5.09 | 0.28 | 2.73 | -26.80 | 84.98 | -11.36 | 152.45 | 0.3819 | -1035.0 | -649.6 | |
| 0.86 | 3.88 | 0.46 | 2.09 | -27.18 | 84.84 | -11.51 | 152.67 | 0.3882 | 546.3 | 398.5 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -22.80 | 84.76 | -11.58 | 145.63 | 0.3294 | -832.0 | -663.1 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -23.09 | 82.98 | -13.36 | 142.43 | 0.3502 | 3.0 | 3.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
