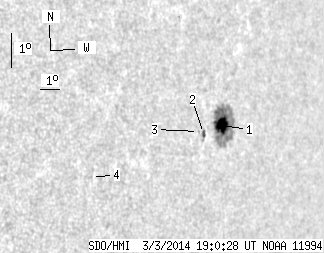

SDO HMI 2014-03-03 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.38 | 71.82 | 12.34 | 66.33 | -6.67 | 153.70 | 57.90 | 266.69 | 0.8449 | 736.7 | 240.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.09 | 66.12 | 11.17 | 61.32 | -6.62 | 153.84 | 58.04 | 266.74 | 0.8463 | 814.3 | 227.6 | |
| 1.29 | 3.88 | 1.17 | 3.50 | -6.96 | 152.89 | 57.09 | 266.42 | 0.8372 | 546.7 | 426.6 | |
| 0.00 | 0.78 | 0.00 | 0.69 | -6.93 | 152.61 | 56.81 | 266.48 | 0.8345 | 590.0 | 557.7 | |
| 0.00 | 1.04 | 0.00 | 0.82 | -8.83 | 147.44 | 51.65 | 264.48 | 0.7808 | 239.0 | 221.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
