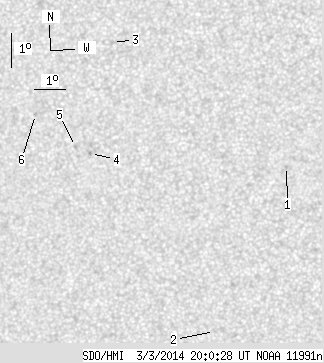

SDO HMI 2014-03-03 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.71 | 0.00 | 4.62 | -11.24 | 74.72 | -20.53 | 102.97 | 0.3562 | -331.7 | -266.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.82 | 79.97 | -15.28 | 111.56 | 0.2775 | 935.0 | 697.2 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -17.68 | 77.25 | -18.00 | 122.43 | 0.3503 | -2.0 | 1.0 | |
| 0.00 | 3.02 | 0.00 | 1.60 | -8.92 | 74.67 | -20.57 | 96.11 | 0.3506 | 6.0 | 2.1 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -12.18 | 73.72 | -21.52 | 104.79 | 0.3725 | -1058.0 | -896.0 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -11.95 | 73.25 | -21.99 | 103.96 | 0.3792 | -1001.0 | -700.3 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -10.94 | 72.02 | -23.22 | 100.88 | 0.3959 | -870.0 | -674.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
