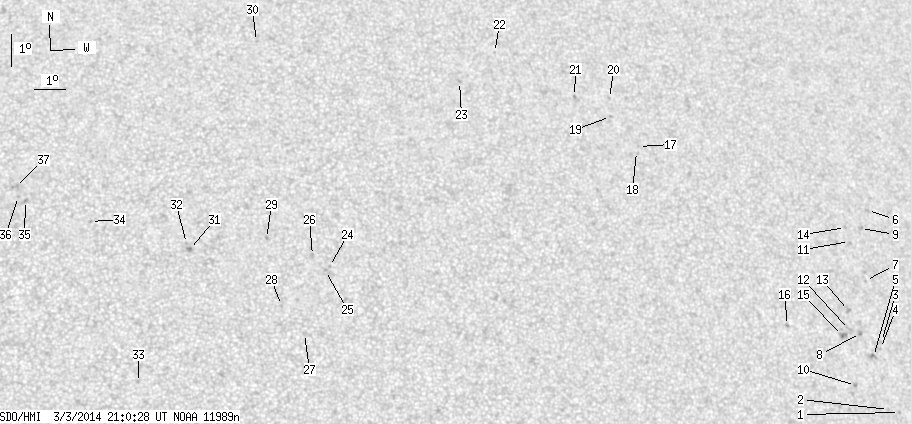

SDO HMI 2014-03-03 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.35 | 54.99 | 0.21 | 31.92 | 8.39 | 119.91 | 25.22 | 305.25 | 0.5045 | -94.6 | -136.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.48 | 4.32 | 130.34 | 35.65 | 286.94 | 0.6098 | -459.0 | -484.2 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 4.38 | 129.94 | 35.25 | 287.24 | 0.6048 | -747.0 | -633.2 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 6.44 | 129.83 | 35.14 | 290.50 | 0.6128 | -507.0 | -472.9 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 6.23 | 129.77 | 35.08 | 290.20 | 0.6111 | -569.0 | -478.2 | |
| 0.00 | 2.94 | 0.00 | 1.82 | 5.96 | 129.50 | 34.81 | 289.95 | 0.6062 | -774.0 | -629.9 | |
| 0.00 | 1.99 | 0.00 | 1.27 | 10.47 | 129.74 | 35.05 | 296.52 | 0.6335 | -551.0 | -468.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 8.28 | 129.41 | 34.72 | 293.54 | 0.6171 | -559.0 | -480.2 | |
| 0.00 | 1.90 | 0.00 | 1.18 | 6.63 | 129.08 | 34.39 | 291.24 | 0.6041 | -805.0 | -738.8 | |
| 0.00 | 2.07 | 0.00 | 1.31 | 9.89 | 129.41 | 34.72 | 295.90 | 0.6260 | -699.0 | -576.7 | |
| 0.00 | 1.47 | 0.00 | 0.90 | 5.03 | 128.78 | 34.09 | 288.89 | 0.5923 | -754.0 | -664.2 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 9.45 | 128.96 | 34.26 | 295.57 | 0.6179 | -451.0 | -502.5 | |
| 0.00 | 3.19 | 0.00 | 1.97 | 6.73 | 128.69 | 33.99 | 291.62 | 0.5995 | -651.0 | -525.6 | |
| 0.00 | 2.07 | 0.00 | 1.28 | 7.31 | 128.70 | 34.01 | 292.51 | 0.6028 | -828.0 | -692.6 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 9.88 | 128.86 | 34.17 | 296.26 | 0.6193 | -375.0 | -337.1 | |
| 0.35 | 3.97 | 0.21 | 2.44 | 6.52 | 128.42 | 33.73 | 291.47 | 0.5950 | -954.5 | -730.0 | |
| 0.00 | 1.64 | 0.00 | 0.99 | 6.70 | 126.47 | 31.78 | 293.01 | 0.5705 | 796.0 | 600.4 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 11.94 | 121.80 | 27.11 | 305.25 | 0.5481 | -525.0 | -381.7 | |
| 0.00 | 0.35 | 0.00 | 0.20 | 11.78 | 121.72 | 27.02 | 305.09 | 0.5457 | -362.0 | -406.0 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 12.84 | 120.95 | 26.26 | 307.48 | 0.5456 | -742.0 | -673.0 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 13.41 | 120.98 | 26.29 | 308.28 | 0.5510 | -543.0 | -466.8 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 13.40 | 119.79 | 25.10 | 309.58 | 0.5375 | -740.0 | -648.2 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 14.67 | 117.25 | 22.56 | 314.44 | 0.5219 | -475.0 | -412.3 | |
| 0.00 | 1.64 | 0.00 | 0.94 | 13.68 | 115.99 | 21.30 | 314.67 | 0.4983 | -745.0 | -582.6 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 7.72 | 111.43 | 16.74 | 311.56 | 0.3830 | 578.0 | 489.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 7.59 | 111.30 | 16.60 | 311.53 | 0.3800 | 709.0 | 585.4 | |
| 0.00 | 1.90 | 0.00 | 1.02 | 8.04 | 110.91 | 16.22 | 313.09 | 0.3803 | 807.0 | 575.1 | |
| 0.00 | 2.07 | 0.00 | 1.10 | 5.64 | 110.57 | 15.88 | 308.70 | 0.3505 | 15.0 | -0.2 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 6.47 | 109.89 | 15.19 | 311.79 | 0.3508 | 805.0 | 582.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 8.51 | 109.50 | 14.80 | 316.63 | 0.3696 | 612.0 | 570.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 14.70 | 109.53 | 14.84 | 326.18 | 0.4469 | 653.0 | 477.3 | |
| 0.00 | 2.33 | 0.00 | 1.23 | 8.10 | 107.10 | 12.41 | 320.91 | 0.3389 | 937.0 | 853.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 8.29 | 107.02 | 12.32 | 321.44 | 0.3403 | 765.0 | 617.5 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 4.00 | 105.45 | 10.76 | 316.01 | 0.2693 | 686.0 | 497.6 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 8.90 | 104.10 | 9.40 | 329.71 | 0.3215 | 757.0 | 516.6 | |
| 0.00 | 2.42 | 0.00 | 1.26 | 9.51 | 102.13 | 7.44 | 336.03 | 0.3158 | 887.0 | 698.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 9.63 | 101.93 | 7.23 | 336.79 | 0.3163 | 714.0 | 591.5 | |
| 0.00 | 3.28 | 0.00 | 1.71 | 9.94 | 101.84 | 7.15 | 337.41 | 0.3205 | 776.0 | 658.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
