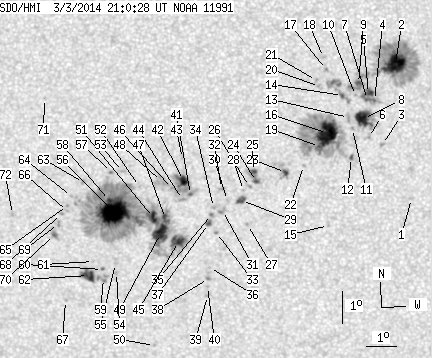

SDO HMI 2014-03-03 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 191.68 | 922.68 | 100.25 | 482.76 | -25.25 | 90.81 | -3.88 | 170.19 | 0.3209 | -75.4 | -19.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.00 | -26.17 | 96.64 | 1.95 | 185.38 | 0.3272 | 455.0 | 246.9 | |
| 27.89 | 177.76 | 14.29 | 91.13 | -21.98 | 96.07 | 1.38 | 185.02 | 0.2565 | 1327.9 | 573.3 | |
| 0.00 | 2.07 | 0.00 | 1.07 | -24.48 | 95.67 | 0.98 | 183.00 | 0.2981 | 894.0 | 682.8 | |
| 0.69 | -2.00 | 0.36 | -2.00 | -23.12 | 95.41 | 0.71 | 182.39 | 0.2750 | 734.8 | 999999 | |
| 5.35 | -2.00 | 2.75 | -2.00 | -22.90 | 95.21 | 0.52 | 181.77 | 0.2712 | 1092.6 | 999999 | |
| 0.00 | 3.37 | 0.00 | 1.74 | -24.27 | 95.21 | 0.52 | 181.62 | 0.2941 | 574.0 | 425.0 | |
| 1.29 | -2.00 | 0.67 | -2.00 | -23.09 | 95.18 | 0.49 | 181.64 | 0.2743 | 862.1 | 999999 | |
| 16.58 | 25.04 | 8.56 | 12.93 | -23.68 | 95.05 | 0.36 | 181.16 | 0.2842 | 1043.4 | 466.1 | |
| 2.33 | -2.00 | 1.20 | -2.00 | -22.59 | 94.89 | 0.20 | 180.68 | 0.2659 | 1260.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -22.96 | 94.79 | 0.10 | 180.33 | 0.2721 | 889.0 | 712.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -23.99 | 94.69 | 0.00 | 180.00 | 0.2893 | 734.0 | 524.7 | |
| 1.04 | 151.34 | 0.54 | 78.39 | -24.89 | 94.66 | -0.03 | 179.90 | 0.3044 | -887.8 | 408.4 | |
| 0.00 | 3.63 | 0.00 | 1.87 | -23.64 | 94.56 | -0.13 | 179.58 | 0.2836 | 970.0 | 749.6 | |
| 1.21 | 19.08 | 0.62 | 9.81 | -22.96 | 94.37 | -0.32 | 178.91 | 0.2722 | 1120.7 | 861.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -27.02 | 93.89 | -0.80 | 177.88 | 0.3400 | 722.0 | 578.5 | |
| 30.73 | -12.00 | 15.91 | -12.00 | -24.14 | 93.88 | -0.81 | 177.45 | 0.2922 | 1297.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -22.16 | 93.86 | -0.83 | 177.01 | 0.2589 | 1024.0 | 780.7 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -21.79 | 93.77 | -0.92 | 176.59 | 0.2528 | 915.0 | 620.7 | |
| 1.29 | -12.00 | 0.67 | -12.00 | -24.54 | 93.62 | -1.08 | 176.71 | 0.2992 | 884.7 | 999999 | |
| 0.00 | 2.76 | 0.00 | 1.42 | -22.68 | 93.63 | -1.06 | 176.33 | 0.2680 | 725.0 | 619.4 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -22.50 | 93.54 | -1.16 | 175.95 | 0.2649 | 893.0 | 709.5 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -25.13 | 93.08 | -1.61 | 175.27 | 0.3096 | 696.0 | 537.9 | |
| 1.99 | 9.15 | 1.04 | 4.77 | -25.35 | 92.49 | -2.20 | 173.62 | 0.3141 | 676.7 | 207.3 | |
| 1.55 | 11.31 | 0.81 | 5.91 | -25.62 | 91.53 | -3.17 | 171.03 | 0.3208 | -1031.4 | -275.1 | |
| 1.73 | -24.00 | 0.90 | -24.00 | -25.31 | 91.44 | -3.26 | 170.60 | 0.3159 | 546.8 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -25.78 | 91.29 | -3.40 | 170.46 | 0.3239 | -772.0 | -481.3 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -26.97 | 91.19 | -3.51 | 170.83 | 0.3436 | -1009.0 | -809.7 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -25.90 | 91.09 | -3.60 | 169.98 | 0.3265 | -736.0 | -456.8 | |
| 3.37 | 5.18 | 1.77 | 2.72 | -26.22 | 91.01 | -3.68 | 169.96 | 0.3318 | -1063.0 | -796.6 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -26.21 | 90.55 | -4.15 | 168.72 | 0.3332 | -725.0 | -546.3 | |
| 0.00 | 3.54 | 0.00 | 1.86 | -26.52 | 90.37 | -4.32 | 168.46 | 0.3388 | -855.0 | -761.0 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -25.83 | 90.36 | -4.33 | 167.98 | 0.3277 | -951.0 | -844.4 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -27.22 | 90.14 | -4.55 | 168.34 | 0.3506 | -808.0 | -725.0 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -26.43 | 90.07 | -4.62 | 167.63 | 0.3382 | -1014.0 | -834.1 | |
| 0.35 | 1.38 | 0.18 | 0.73 | -26.65 | 90.00 | -4.69 | 167.59 | 0.3420 | -998.5 | -831.3 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -28.32 | 89.86 | -4.84 | 168.35 | 0.3692 | -687.0 | -570.1 | |
| 1.73 | 3.28 | 0.91 | 1.73 | -26.93 | 89.89 | -4.81 | 167.51 | 0.3469 | -944.0 | -775.5 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -28.68 | 89.81 | -4.89 | 168.45 | 0.3749 | -900.0 | -732.9 | |
| 0.00 | 2.16 | 0.00 | 1.16 | -29.22 | 89.74 | -4.95 | 168.63 | 0.3837 | -711.0 | -606.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -28.93 | 89.76 | -4.93 | 168.50 | 0.3791 | -828.0 | -659.6 | |
| 0.78 | 28.75 | 0.41 | 15.08 | -26.01 | 89.33 | -5.37 | 165.38 | 0.3344 | -800.3 | 185.1 | |
| 5.53 | -41.00 | 2.90 | -41.00 | -25.57 | 89.12 | -5.58 | 164.44 | 0.3283 | 1066.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -24.88 | 89.12 | -5.58 | 163.80 | 0.3174 | 821.0 | 669.7 | |
| 0.00 | 2.76 | 0.00 | 1.45 | -26.16 | 89.05 | -5.64 | 164.81 | 0.3380 | -999.0 | -811.8 | |
| 10.62 | 384.18 | 5.63 | 203.49 | -27.49 | 88.85 | -5.84 | 165.40 | 0.3597 | -1081.8 | -458.9 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -25.81 | 88.74 | -5.95 | 163.69 | 0.3339 | 875.0 | 671.0 | |
| 4.49 | -45.00 | 2.37 | -45.00 | -26.75 | 88.46 | -6.24 | 163.83 | 0.3499 | -1173.2 | 999999 | |
| 0.00 | 10.45 | 0.00 | 5.48 | -25.59 | 88.39 | -6.31 | 162.56 | 0.3320 | 278.0 | 364.2 | |
| 15.54 | -45.00 | 8.24 | -45.00 | -27.22 | 88.26 | -6.43 | 163.78 | 0.3581 | -1170.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -30.81 | 87.82 | -6.87 | 165.60 | 0.4152 | -694.0 | -570.2 | |
| 4.75 | -45.00 | 2.51 | -45.00 | -26.72 | 88.06 | -6.64 | 162.83 | 0.3512 | 803.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -25.74 | 87.65 | -7.04 | 160.84 | 0.3381 | -399.0 | -321.1 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -25.26 | 87.12 | -7.58 | 158.97 | 0.3338 | -821.0 | -562.4 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -28.44 | 86.69 | -8.01 | 161.34 | 0.3844 | -853.0 | -695.1 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -28.15 | 86.68 | -8.02 | 161.04 | 0.3801 | -730.0 | -559.6 | |
| 37.73 | -45.00 | 19.98 | -45.00 | -26.54 | 86.76 | -7.93 | 159.57 | 0.3552 | -1500.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -25.28 | 86.75 | -7.94 | 158.09 | 0.3364 | 559.0 | 443.9 | |
| 1.90 | -45.00 | 1.00 | -45.00 | -26.16 | 86.62 | -8.07 | 158.82 | 0.3503 | -1380.0 | 999999 | |
| 0.00 | 5.09 | 0.00 | 2.74 | -28.62 | 86.23 | -8.46 | 160.54 | 0.3895 | -660.0 | -724.3 | |
| 0.43 | 1.29 | 0.23 | 0.69 | -28.33 | 86.22 | -8.47 | 160.24 | 0.3853 | -909.6 | -765.4 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -28.07 | 85.93 | -8.76 | 159.37 | 0.3830 | -782.0 | -529.5 | |
| 9.67 | 13.38 | 5.20 | 7.20 | -28.52 | 85.72 | -8.97 | 159.38 | 0.3907 | -958.1 | -628.5 | |
| 0.00 | 2.24 | 0.00 | 1.18 | -25.58 | 85.80 | -8.90 | 156.17 | 0.3468 | -835.0 | -587.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -26.01 | 85.36 | -9.33 | 155.72 | 0.3560 | -878.0 | -776.1 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -26.29 | 85.20 | -9.49 | 155.73 | 0.3612 | -802.0 | -698.6 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -26.48 | 85.19 | -9.51 | 155.93 | 0.3640 | -938.0 | -704.7 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -29.30 | 84.86 | -9.83 | 158.45 | 0.4072 | -610.0 | -477.1 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -26.53 | 84.98 | -9.71 | 155.55 | 0.3662 | -863.0 | -698.8 | |
| 0.00 | 2.07 | 0.00 | 1.10 | -26.85 | 84.85 | -9.84 | 155.66 | 0.3716 | -1003.0 | -793.2 | |
| 1.12 | 6.99 | 0.60 | 3.74 | -27.19 | 84.69 | -10.01 | 155.73 | 0.3777 | 308.5 | -72.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -22.94 | 84.71 | -9.98 | 149.61 | 0.3170 | -745.0 | -586.8 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -26.53 | 83.33 | -11.37 | 152.05 | 0.3779 | -775.0 | -622.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
