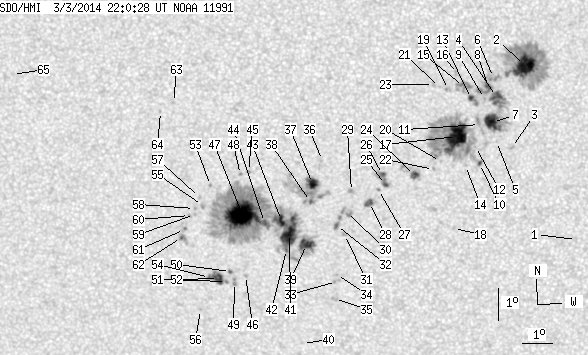

SDO HMI 2014-03-03 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 212.73 | 943.09 | 111.24 | 492.99 | -25.19 | 90.89 | -3.25 | 171.90 | 0.3184 | -71.0 | -11.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-03 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.96 | -27.36 | 97.88 | 3.74 | 189.56 | 0.3505 | -10.0 | -0.5 | |
| 30.13 | 136.76 | 15.44 | 70.06 | -21.95 | 96.06 | 1.92 | 186.98 | 0.2569 | 1286.1 | 452.2 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -24.49 | 95.67 | 1.53 | 184.69 | 0.2987 | 802.0 | 624.5 | |
| 5.70 | 66.05 | 2.93 | 34.05 | -22.91 | 95.17 | 1.03 | 183.51 | 0.2716 | 1094.8 | 573.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -24.30 | 95.18 | 1.04 | 183.22 | 0.2950 | 491.0 | 282.5 | |
| 0.00 | 7.51 | 0.00 | 3.85 | -22.32 | 95.07 | 0.93 | 183.30 | 0.2617 | 786.0 | 860.3 | |
| 16.66 | -4.00 | 8.61 | -4.00 | -23.71 | 95.05 | 0.90 | 182.92 | 0.2850 | 1018.3 | 999999 | |
| 2.24 | -4.00 | 1.15 | -4.00 | -22.60 | 94.91 | 0.77 | 182.68 | 0.2662 | 1256.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -22.97 | 94.78 | 0.64 | 182.18 | 0.2724 | 847.0 | 678.1 | |
| 1.21 | 158.00 | 0.63 | 81.83 | -24.99 | 94.63 | 0.49 | 181.45 | 0.3061 | -779.1 | 360.1 | |
| 0.00 | 5.87 | 0.00 | 3.03 | -23.77 | 94.63 | 0.48 | 181.55 | 0.2858 | 770.0 | 645.4 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -24.46 | 94.50 | 0.35 | 181.09 | 0.2972 | 522.0 | 456.1 | |
| 1.81 | 6.13 | 0.93 | 3.16 | -22.97 | 94.37 | 0.22 | 180.76 | 0.2722 | 1053.2 | 841.6 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -25.05 | 94.17 | 0.03 | 180.08 | 0.3070 | 549.0 | 385.2 | |
| 0.00 | 11.66 | 0.00 | 5.99 | -22.60 | 94.11 | -0.03 | 179.88 | 0.2659 | 954.0 | 877.6 | |
| 0.00 | 3.54 | 0.00 | 1.81 | -22.20 | 93.92 | -0.23 | 179.19 | 0.2591 | 571.0 | 718.0 | |
| 35.49 | -10.00 | 18.37 | -10.00 | -24.14 | 93.88 | -0.26 | 179.17 | 0.2920 | 1225.0 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -27.03 | 93.77 | -0.37 | 179.01 | 0.3399 | 623.0 | 523.4 | |
| 0.00 | 2.59 | 0.00 | 1.33 | -22.69 | 93.62 | -0.52 | 178.21 | 0.2676 | 764.0 | 629.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -24.92 | 93.35 | -0.79 | 177.64 | 0.3052 | 743.0 | 570.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -22.63 | 93.34 | -0.81 | 177.19 | 0.2667 | 656.0 | 556.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -25.17 | 93.12 | -1.02 | 176.99 | 0.3095 | 760.0 | 597.7 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -22.53 | 93.14 | -1.00 | 176.50 | 0.2653 | 791.0 | 611.0 | |
| 3.63 | 14.59 | 1.89 | 7.60 | -25.36 | 92.49 | -1.65 | 175.22 | 0.3133 | 615.9 | -122.0 | |
| 1.64 | 12.26 | 0.86 | 6.40 | -25.63 | 91.53 | -2.61 | 172.58 | 0.3196 | -983.8 | -245.3 | |
| 1.30 | -25.00 | 0.68 | -25.00 | -25.32 | 91.44 | -2.70 | 172.18 | 0.3146 | 476.6 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -25.79 | 91.30 | -2.84 | 172.00 | 0.3226 | -678.0 | -548.0 | |
| 3.28 | 5.87 | 1.72 | 3.08 | -26.19 | 90.99 | -3.15 | 171.36 | 0.3300 | -1043.1 | -603.5 | |
| 0.00 | 2.76 | 0.00 | 1.45 | -25.84 | 90.40 | -3.74 | 169.58 | 0.3259 | -1017.0 | -765.0 | |
| 0.00 | 7.25 | 0.00 | 3.81 | -26.50 | 90.21 | -3.93 | 169.48 | 0.3371 | -973.0 | -829.5 | |
| 0.00 | 2.50 | 0.00 | 1.32 | -27.19 | 90.12 | -4.02 | 169.65 | 0.3486 | -764.0 | -574.6 | |
| 0.95 | 6.22 | 0.50 | 3.28 | -26.91 | 89.87 | -4.28 | 168.83 | 0.3447 | -976.7 | -789.3 | |
| 0.00 | 2.33 | 0.00 | 1.24 | -28.69 | 89.79 | -4.35 | 169.69 | 0.3734 | -747.0 | -654.2 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -28.46 | 89.80 | -4.34 | 169.59 | 0.3698 | -840.0 | -682.4 | |
| 0.00 | 2.42 | 0.00 | 1.30 | -29.23 | 89.70 | -4.44 | 169.77 | 0.3823 | -696.0 | -624.3 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -24.86 | 89.48 | -4.66 | 166.33 | 0.3132 | 463.0 | 452.6 | |
| 7.51 | 54.14 | 3.93 | 28.39 | -25.58 | 89.12 | -5.02 | 165.93 | 0.3261 | 980.4 | 125.5 | |
| 0.78 | -37.00 | 0.41 | -37.00 | -26.14 | 89.03 | -5.11 | 166.15 | 0.3354 | -967.1 | 999999 | |
| 10.79 | 372.91 | 5.72 | 197.29 | -27.50 | 88.83 | -5.31 | 166.68 | 0.3577 | -1059.9 | -418.5 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -30.67 | 88.52 | -5.62 | 168.05 | 0.4085 | -570.0 | -398.7 | |
| 23.57 | -39.00 | 12.48 | -39.00 | -27.14 | 88.28 | -5.86 | 165.07 | 0.3543 | -1138.0 | 999999 | |
| 0.86 | -39.00 | 0.46 | -39.00 | -27.65 | 88.15 | -5.99 | 165.17 | 0.3628 | -743.4 | 999999 | |
| 4.66 | -39.00 | 2.46 | -39.00 | -26.73 | 88.04 | -6.11 | 164.13 | 0.3489 | 772.5 | 999999 | |
| 1.99 | -39.00 | 1.05 | -39.00 | -26.78 | 87.46 | -6.68 | 162.79 | 0.3524 | -936.9 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -25.17 | 87.03 | -7.11 | 160.04 | 0.3298 | -858.0 | -632.3 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -28.45 | 86.71 | -7.43 | 162.59 | 0.3817 | -858.0 | -717.8 | |
| 49.13 | -39.00 | 25.98 | -39.00 | -26.52 | 86.74 | -7.40 | 160.80 | 0.3520 | -1420.0 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -25.26 | 86.76 | -7.38 | 159.46 | 0.3327 | 642.0 | 494.3 | |
| 0.00 | 3.45 | 0.00 | 1.85 | -28.67 | 86.32 | -7.82 | 161.94 | 0.3869 | -839.0 | -737.3 | |
| 0.60 | 1.55 | 0.32 | 0.83 | -28.32 | 86.21 | -7.93 | 161.38 | 0.3821 | -862.4 | -745.6 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -28.63 | 86.05 | -8.09 | 161.33 | 0.3877 | -855.0 | -717.6 | |
| 7.34 | 13.30 | 3.94 | 7.14 | -28.53 | 85.78 | -8.36 | 160.67 | 0.3876 | -927.2 | -701.3 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -25.59 | 85.74 | -8.40 | 157.35 | 0.3438 | -937.0 | -791.3 | |
| 0.60 | -52.00 | 0.32 | -52.00 | -28.50 | 85.48 | -8.66 | 159.99 | 0.3887 | -740.6 | 999999 | |
| 0.00 | 2.76 | 0.00 | 1.46 | -26.21 | 85.43 | -8.72 | 157.38 | 0.3550 | -807.0 | -798.7 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -29.51 | 85.08 | -9.06 | 160.17 | 0.4059 | -596.0 | -546.0 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -25.96 | 85.34 | -8.80 | 156.88 | 0.3518 | -903.0 | -688.5 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -26.30 | 85.15 | -8.99 | 156.86 | 0.3581 | -836.0 | -653.1 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -26.49 | 85.14 | -9.01 | 157.05 | 0.3610 | -886.0 | -781.2 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -26.52 | 84.96 | -9.18 | 156.70 | 0.3625 | -748.0 | -626.1 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -26.96 | 84.76 | -9.38 | 156.78 | 0.3702 | -813.0 | -675.5 | |
| 0.86 | 5.01 | 0.46 | 2.67 | -27.21 | 84.64 | -9.51 | 156.81 | 0.3746 | 510.9 | -125.4 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -22.99 | 84.71 | -9.44 | 151.05 | 0.3132 | -723.0 | -539.5 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -23.26 | 84.26 | -9.88 | 150.39 | 0.3206 | -726.0 | -594.5 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -21.99 | 79.50 | -14.64 | 137.77 | 0.3503 | 7.0 | -5.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
