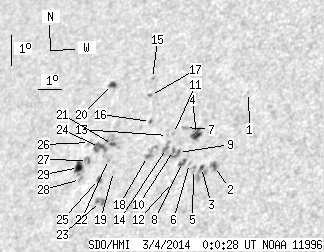

SDO HMI 2014-03-04 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.21 | 122.03 | 20.02 | 89.35 | 13.40 | 50.05 | -42.99 | 64.24 | 0.7384 | -15.1 | -16.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.54 | 14.92 | 54.15 | -38.89 | 60.00 | 0.7029 | -273.0 | -306.4 | |
| 1.47 | 4.49 | 1.02 | 3.11 | 12.65 | 53.25 | -39.79 | 63.45 | 0.7003 | -867.8 | -683.1 | |
| 1.04 | 9.59 | 0.72 | 6.67 | 12.66 | 52.73 | -40.31 | 63.74 | 0.7062 | -672.0 | -631.6 | |
| 5.18 | 8.46 | 3.67 | 5.99 | 13.74 | 52.32 | -40.73 | 62.59 | 0.7162 | -809.6 | -595.6 | |
| 0.00 | 3.54 | 0.00 | 2.48 | 12.63 | 52.42 | -40.62 | 63.96 | 0.7095 | -651.0 | -444.6 | |
| 0.00 | 1.12 | 0.00 | 0.79 | 12.84 | 52.22 | -40.82 | 63.81 | 0.7127 | -618.0 | -459.3 | |
| 0.00 | 3.28 | 0.00 | 2.34 | 14.01 | 51.81 | -41.23 | 62.55 | 0.7230 | -526.0 | -454.9 | |
| 1.99 | 4.23 | 1.40 | 2.99 | 12.89 | 51.92 | -41.12 | 63.90 | 0.7162 | -623.0 | -511.2 | |
| 0.78 | 7.51 | 0.55 | 5.36 | 13.23 | 51.69 | -41.35 | 63.60 | 0.7204 | -705.9 | -576.1 | |
| 0.52 | -9.00 | 0.37 | -9.00 | 13.31 | 51.47 | -41.57 | 63.62 | 0.7232 | -720.3 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.93 | 13.86 | 51.35 | -41.69 | 62.99 | 0.7271 | -428.0 | -377.5 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 12.29 | 51.63 | -41.41 | 64.83 | 0.7164 | -538.0 | -414.2 | |
| 0.00 | 0.95 | 0.00 | 0.69 | 13.82 | 51.11 | -41.93 | 63.18 | 0.7295 | -325.0 | -301.4 | |
| 0.00 | 7.34 | 0.00 | 5.28 | 13.40 | 51.16 | -41.88 | 63.67 | 0.7269 | -670.0 | -488.1 | |
| 0.00 | 1.30 | 0.00 | 0.97 | 15.73 | 50.02 | -43.02 | 61.42 | 0.7502 | -505.0 | -463.7 | |
| 0.60 | 1.64 | 0.44 | 1.21 | 14.33 | 50.29 | -42.75 | 62.98 | 0.7407 | -354.0 | -277.8 | |
| 0.00 | 1.90 | 0.00 | 1.41 | 15.18 | 50.08 | -42.96 | 62.05 | 0.7469 | -476.0 | -367.3 | |
| 0.69 | 7.60 | 0.50 | 5.52 | 13.22 | 50.42 | -42.63 | 64.30 | 0.7340 | -589.5 | -405.9 | |
| 0.00 | 0.52 | 0.00 | 0.38 | 12.87 | 49.06 | -43.98 | 65.43 | 0.7467 | 607.0 | 561.3 | |
| 2.59 | 4.66 | 1.99 | 3.58 | 15.69 | 48.31 | -44.73 | 62.37 | 0.7671 | 657.9 | 478.2 | |
| 1.30 | 21.16 | 0.97 | 15.95 | 13.74 | 48.82 | -44.22 | 64.48 | 0.7531 | 845.4 | 606.4 | |
| 0.00 | 1.21 | 0.00 | 0.90 | 13.27 | 48.76 | -44.29 | 65.08 | 0.7517 | 699.0 | 629.1 | |
| 0.00 | 6.05 | 0.00 | 4.49 | 11.96 | 48.70 | -44.34 | 66.74 | 0.7466 | 748.0 | 720.7 | |
| 4.49 | -21.00 | 3.40 | -21.00 | 13.70 | 48.27 | -44.77 | 64.80 | 0.7586 | 792.9 | 999999 | |
| 1.38 | 2.94 | 1.03 | 2.20 | 12.67 | 48.46 | -44.58 | 65.97 | 0.7521 | 817.2 | 694.4 | |
| 0.00 | 2.50 | 0.00 | 1.92 | 13.90 | 47.78 | -45.26 | 64.79 | 0.7644 | 503.0 | 413.8 | |
| 0.00 | 4.58 | 0.00 | 3.48 | 13.33 | 47.84 | -45.21 | 65.46 | 0.7614 | 754.0 | 608.9 | |
| 0.00 | 2.07 | 0.00 | 1.58 | 12.75 | 47.67 | -45.38 | 66.26 | 0.7607 | 544.0 | 495.3 | |
| 5.18 | 10.45 | 3.96 | 7.98 | 13.14 | 47.49 | -45.55 | 65.86 | 0.7642 | 582.5 | 452.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
