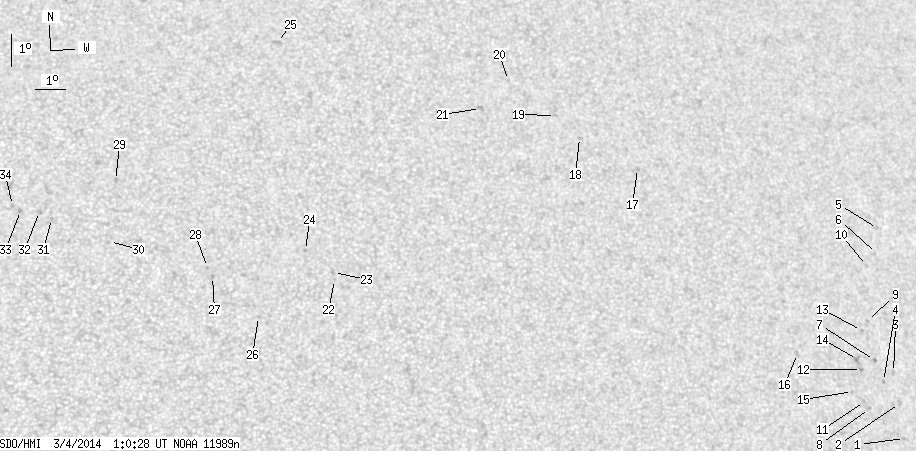

SDO HMI 2014-03-04 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 49.93 | 0.00 | 29.42 | 8.91 | 119.03 | 26.54 | 304.53 | 0.5268 | -66.9 | -96.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.72 | 4.29 | 130.15 | 37.66 | 285.93 | 0.6359 | -638.0 | -421.6 | |
| 0.00 | 2.16 | 0.00 | 1.39 | 5.34 | 130.03 | 37.54 | 287.57 | 0.6386 | -457.0 | -414.0 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 6.28 | 129.88 | 37.39 | 289.03 | 0.6408 | -466.0 | -416.4 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 5.97 | 129.48 | 36.99 | 288.78 | 0.6343 | -641.0 | -605.8 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 10.70 | 129.79 | 37.30 | 295.42 | 0.6615 | -524.0 | -454.1 | |
| 0.00 | 0.26 | 0.00 | 0.17 | 9.92 | 129.64 | 37.15 | 294.41 | 0.6556 | -449.0 | -505.0 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 6.59 | 129.19 | 36.70 | 289.86 | 0.6335 | -610.0 | -541.9 | |
| 0.00 | 1.21 | 0.00 | 0.76 | 5.10 | 128.89 | 36.40 | 287.78 | 0.6230 | -789.0 | -647.3 | |
| 0.00 | 1.21 | 0.00 | 0.78 | 7.80 | 129.05 | 36.56 | 291.73 | 0.6375 | -570.0 | -429.7 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 9.51 | 129.21 | 36.72 | 294.10 | 0.6482 | -682.0 | -573.4 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 5.30 | 128.72 | 36.23 | 288.17 | 0.6216 | -661.0 | -580.0 | |
| 0.00 | 1.38 | 0.00 | 0.88 | 6.28 | 128.68 | 36.19 | 289.67 | 0.6256 | -763.0 | -696.1 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 7.48 | 128.79 | 36.30 | 291.40 | 0.6327 | -573.0 | -571.5 | |
| 0.00 | 3.46 | 0.00 | 2.19 | 6.57 | 128.56 | 36.07 | 290.18 | 0.6254 | -844.0 | -728.0 | |
| 0.00 | 1.30 | 0.00 | 0.81 | 5.58 | 128.29 | 35.80 | 288.81 | 0.6173 | -682.0 | -492.9 | |
| 0.00 | 2.85 | 0.00 | 1.76 | 6.59 | 126.36 | 33.87 | 291.50 | 0.5973 | 568.0 | 352.3 | |
| 0.00 | 1.55 | 0.00 | 0.93 | 11.98 | 121.25 | 28.76 | 303.72 | 0.5681 | -593.0 | -593.1 | |
| 0.00 | 1.55 | 0.00 | 0.92 | 12.84 | 119.36 | 26.86 | 306.85 | 0.5528 | -692.0 | -603.0 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 13.49 | 118.62 | 26.12 | 308.59 | 0.5499 | -523.0 | -411.6 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 14.52 | 117.14 | 24.65 | 311.71 | 0.5430 | -584.0 | -508.0 | |
| 0.00 | 3.11 | 0.00 | 1.80 | 13.57 | 116.10 | 23.60 | 311.58 | 0.5224 | -533.0 | -564.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 8.00 | 110.93 | 18.44 | 309.33 | 0.4067 | 733.0 | 552.8 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 8.21 | 110.91 | 18.42 | 309.77 | 0.4086 | 755.0 | 531.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 8.86 | 110.06 | 17.57 | 312.33 | 0.4052 | 740.0 | 624.6 | |
| 0.00 | 3.37 | 0.00 | 1.90 | 15.39 | 109.62 | 17.12 | 323.21 | 0.4760 | 729.0 | 547.0 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 6.77 | 108.50 | 16.00 | 310.94 | 0.3640 | 633.0 | 466.8 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 7.95 | 107.11 | 14.62 | 315.93 | 0.3610 | 830.0 | 692.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 8.22 | 106.97 | 14.47 | 316.75 | 0.3626 | 739.0 | 582.1 | |
| 0.00 | 2.07 | 0.00 | 1.10 | 10.85 | 104.23 | 11.73 | 327.05 | 0.3688 | 757.0 | 623.0 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 8.94 | 103.97 | 11.48 | 324.59 | 0.3407 | 688.0 | 505.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 9.61 | 102.21 | 9.72 | 330.01 | 0.3345 | 680.0 | 567.3 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 9.82 | 101.85 | 9.36 | 331.24 | 0.3346 | 678.0 | 622.7 | |
| 0.00 | 1.55 | 0.00 | 0.82 | 9.84 | 101.27 | 8.78 | 332.79 | 0.3304 | 775.0 | 629.9 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 10.00 | 101.03 | 8.54 | 333.64 | 0.3309 | 693.0 | 590.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
