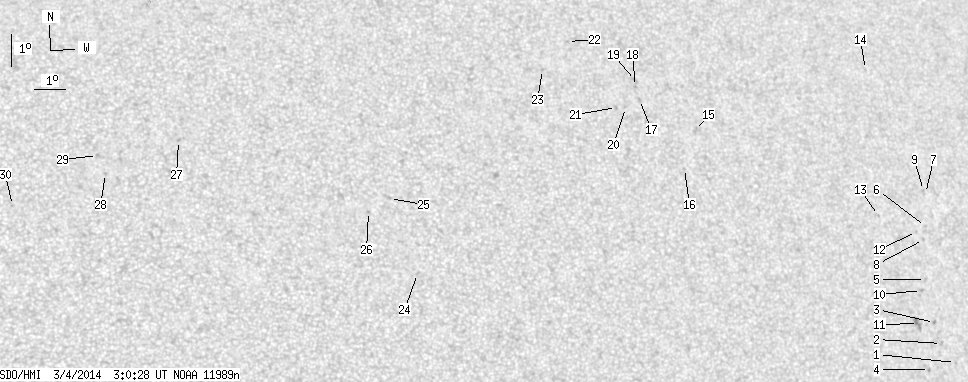

SDO HMI 2014-03-04 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 41.81 | 0.00 | 25.57 | 9.51 | 121.97 | 30.57 | 300.42 | 0.5765 | -295.9 | -351.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.45 | 5.40 | 130.00 | 38.60 | 287.14 | 0.6523 | -302.0 | -349.5 | |
| 0.00 | 1.64 | 0.00 | 1.07 | 5.94 | 129.51 | 38.11 | 288.17 | 0.6484 | -681.0 | -590.4 | |
| 0.00 | 1.38 | 0.00 | 0.90 | 6.56 | 129.30 | 37.90 | 289.19 | 0.6485 | -639.0 | -506.5 | |
| 0.00 | 1.38 | 0.00 | 0.89 | 5.11 | 128.99 | 37.59 | 287.19 | 0.6383 | -649.0 | -574.1 | |
| 0.00 | 1.64 | 0.00 | 1.07 | 7.86 | 129.09 | 37.69 | 291.18 | 0.6518 | -674.0 | -547.9 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 9.51 | 129.29 | 37.89 | 293.41 | 0.6623 | -605.0 | -538.3 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 10.55 | 129.43 | 38.03 | 294.76 | 0.6694 | -431.0 | -418.5 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 9.10 | 129.16 | 37.76 | 292.91 | 0.6587 | -610.0 | -496.4 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 10.64 | 129.37 | 37.97 | 294.92 | 0.6691 | -628.0 | -540.8 | |
| 0.00 | 1.56 | 0.00 | 1.01 | 7.51 | 128.90 | 37.50 | 290.78 | 0.6478 | -717.0 | -552.2 | |
| 0.00 | 6.05 | 0.00 | 3.89 | 6.48 | 128.68 | 37.29 | 289.39 | 0.6404 | -864.0 | -717.4 | |
| 0.00 | 0.95 | 0.00 | 0.62 | 9.33 | 128.92 | 37.52 | 293.36 | 0.6570 | -623.0 | -531.5 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 9.72 | 127.53 | 36.14 | 294.75 | 0.6423 | 554.0 | 507.0 | |
| 0.00 | 1.04 | 0.00 | 0.69 | 14.31 | 127.77 | 36.38 | 300.89 | 0.6720 | -460.0 | -384.2 | |
| 0.00 | 2.68 | 0.00 | 1.63 | 11.92 | 121.19 | 29.80 | 302.70 | 0.5800 | -725.0 | -519.4 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 10.70 | 120.67 | 29.27 | 301.32 | 0.5646 | -708.0 | -535.5 | |
| 0.00 | 1.90 | 0.00 | 1.14 | 12.78 | 119.35 | 27.95 | 305.68 | 0.5649 | -678.0 | -497.8 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 13.19 | 119.26 | 27.86 | 306.36 | 0.5672 | -817.0 | -649.2 | |
| 0.00 | 2.59 | 0.00 | 1.56 | 13.38 | 119.29 | 27.89 | 306.61 | 0.5691 | -540.0 | -500.8 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 12.50 | 118.83 | 27.44 | 305.77 | 0.5566 | -658.0 | -557.8 | |
| 0.00 | 1.56 | 0.00 | 0.92 | 12.48 | 118.52 | 27.12 | 306.05 | 0.5528 | -683.0 | -557.9 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 14.49 | 117.09 | 25.69 | 310.49 | 0.5541 | -562.0 | -497.5 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 13.54 | 116.13 | 24.73 | 310.21 | 0.5347 | -850.0 | -757.5 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 6.96 | 111.53 | 20.13 | 304.86 | 0.4181 | 685.0 | 536.3 | |
| 0.00 | 1.64 | 0.00 | 0.90 | 9.24 | 110.76 | 19.36 | 310.24 | 0.4305 | 172.0 | 206.8 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 8.81 | 110.06 | 18.67 | 310.50 | 0.4177 | 768.0 | 529.8 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 10.82 | 104.20 | 12.81 | 324.66 | 0.3781 | 895.0 | 733.1 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 9.73 | 101.91 | 10.51 | 328.20 | 0.3427 | 707.0 | 511.5 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 10.28 | 101.68 | 10.29 | 329.59 | 0.3486 | 728.0 | 552.8 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 8.68 | 99.04 | 7.65 | 334.31 | 0.3048 | 719.0 | 603.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
