SDO HMI 2014-03-04 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 192.33 | 839.83 | 100.34 | 438.37 | -25.18 | 90.73 | -0.67 | 179.41 | 0.3156 | -11.8 | -39.4 | |
|
previous
or next observation for the same group /

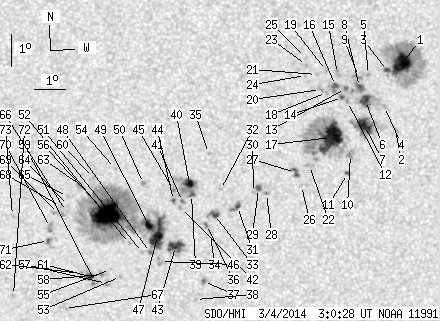

back to the solar disc SDO HMI 2014-03-04 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.14 | 127.45 | 12.91 | 65.46 | -21.85 | 96.15 | 4.76 | 196.96 | 0.2651 | 1272.9 | 437.1 | |
| 0.00 | 2.42 | 0.00 | 1.25 | -23.92 | 96.03 | 4.63 | 194.42 | 0.2978 | -747.0 | -669.2 | |
| 1.90 | -1.00 | 0.98 | -1.00 | -22.07 | 95.71 | 4.31 | 195.23 | 0.2666 | 1041.6 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -23.18 | 95.65 | 4.25 | 193.93 | 0.2843 | 381.0 | 399.8 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -22.20 | 95.10 | 3.71 | 193.05 | 0.2662 | 974.0 | 890.5 | |
| 7.09 | 21.69 | 3.65 | 11.19 | -23.00 | 95.03 | 3.63 | 192.11 | 0.2790 | 1089.9 | 597.5 | |
| 12.70 | 36.29 | 6.58 | 18.79 | -23.77 | 95.01 | 3.62 | 191.47 | 0.2917 | 1082.0 | 556.6 | |
| 2.07 | 11.58 | 1.07 | 5.96 | -22.57 | 94.82 | 3.43 | 191.79 | 0.2712 | 1205.5 | 913.0 | |
| 0.00 | 4.41 | 0.00 | 2.26 | -22.26 | 94.78 | 3.39 | 191.91 | 0.2660 | 850.0 | 835.7 | |
| 0.00 | 5.44 | 0.00 | 2.83 | -24.68 | 94.58 | 3.18 | 189.56 | 0.3052 | 768.0 | 622.9 | |
| 0.86 | 1.99 | 0.45 | 1.04 | -25.27 | 94.50 | 3.10 | 188.98 | 0.3147 | -702.7 | -494.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -23.03 | 94.44 | 3.05 | 190.20 | 0.2777 | 930.0 | 895.0 | |
| 0.86 | 10.54 | 0.44 | 5.42 | -22.63 | 94.37 | 2.98 | 190.23 | 0.2709 | 1122.6 | 847.7 | |
| 0.95 | 2.16 | 0.49 | 1.11 | -22.91 | 94.28 | 2.88 | 189.74 | 0.2752 | 1066.4 | 926.5 | |
| 0.00 | 2.77 | 0.00 | 1.42 | -22.17 | 94.11 | 2.71 | 189.64 | 0.2624 | 57.0 | -113.7 | |
| 2.16 | -13.00 | 1.11 | -13.00 | -22.54 | 94.05 | 2.65 | 189.20 | 0.2684 | 1158.6 | 999999 | |
| 37.16 | 121.14 | 19.25 | 62.77 | -24.15 | 93.95 | 2.55 | 187.95 | 0.2949 | 1137.1 | 432.5 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -22.76 | 93.76 | 2.36 | 188.10 | 0.2713 | 834.0 | 652.1 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -22.08 | 93.75 | 2.35 | 188.46 | 0.2600 | 944.0 | 731.2 | |
| 0.00 | 2.77 | 0.00 | 1.42 | -22.67 | 93.57 | 2.17 | 187.49 | 0.2694 | 726.0 | 654.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -22.21 | 93.43 | 2.03 | 187.26 | 0.2613 | 866.0 | 597.6 | |
| 0.00 | 3.37 | 0.00 | 1.75 | -25.03 | 93.24 | 1.85 | 185.46 | 0.3080 | 655.0 | 565.1 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -21.93 | 93.11 | 1.71 | 186.24 | 0.2561 | 945.0 | 781.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -22.24 | 93.08 | 1.68 | 186.00 | 0.2612 | 882.0 | 624.0 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -21.68 | 93.07 | 1.68 | 186.22 | 0.2519 | 661.0 | 679.1 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -25.65 | 92.99 | 1.59 | 184.53 | 0.3181 | 677.0 | 415.3 | |
| 2.68 | 6.48 | 1.40 | 3.38 | -25.25 | 92.79 | 1.39 | 184.06 | 0.3111 | 789.5 | 515.7 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -25.90 | 91.83 | 0.44 | 181.23 | 0.3213 | -928.0 | -722.8 | |
| 1.90 | 3.63 | 0.99 | 1.90 | -25.75 | 91.57 | 0.17 | 180.49 | 0.3186 | -1037.2 | -818.7 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -25.87 | 91.40 | 0.01 | 180.02 | 0.3207 | -744.0 | -430.2 | |
| 1.21 | 5.53 | 0.63 | 2.90 | -26.31 | 90.87 | -0.52 | 178.56 | 0.3281 | -922.8 | -769.5 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -25.78 | 90.32 | -1.08 | 176.94 | 0.3196 | -865.0 | -690.0 | |
| 3.46 | 8.47 | 1.81 | 4.45 | -26.56 | 90.11 | -1.29 | 176.52 | 0.3327 | -1022.7 | -855.1 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -27.16 | 89.97 | -1.43 | 176.27 | 0.3427 | -769.0 | -634.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -24.65 | 89.93 | -1.46 | 175.56 | 0.3012 | 932.0 | 730.2 | |
| 0.60 | 2.42 | 0.32 | 1.27 | -26.88 | 89.84 | -1.56 | 175.87 | 0.3382 | -929.1 | -725.2 | |
| 0.78 | 2.07 | 0.41 | 1.10 | -28.69 | 89.71 | -1.69 | 175.95 | 0.3679 | -922.4 | -806.9 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -29.26 | 89.42 | -1.97 | 175.42 | 0.3776 | -610.0 | -479.6 | |
| 1.30 | 31.11 | 0.68 | 16.25 | -25.93 | 89.36 | -2.04 | 174.29 | 0.3233 | -596.5 | 191.1 | |
| 6.48 | -39.00 | 3.38 | -39.00 | -25.58 | 89.30 | -2.10 | 174.00 | 0.3177 | 949.9 | 999999 | |
| 0.52 | 1.73 | 0.27 | 0.91 | -26.15 | 89.05 | -2.34 | 173.53 | 0.3274 | -859.2 | -696.6 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -26.34 | 88.98 | -2.41 | 173.41 | 0.3306 | -876.0 | -717.8 | |
| 10.11 | 19.01 | 5.34 | 10.05 | -27.57 | 88.79 | -2.61 | 173.37 | 0.3511 | -1016.7 | -520.1 | |
| 0.69 | 2.51 | 0.36 | 1.31 | -26.11 | 88.76 | -2.64 | 172.71 | 0.3274 | -874.5 | -575.5 | |
| 0.00 | 2.33 | 0.00 | 1.22 | -25.77 | 88.76 | -2.63 | 172.58 | 0.3218 | 862.0 | 713.4 | |
| 0.00 | 5.53 | 0.00 | 2.93 | -28.04 | 88.27 | -3.13 | 172.27 | 0.3598 | -234.0 | -129.3 | |
| 20.31 | 317.55 | 10.72 | 167.24 | -27.21 | 88.19 | -3.20 | 171.72 | 0.3466 | -1149.6 | -463.2 | |
| 0.78 | -47.00 | 0.41 | -47.00 | -27.75 | 87.94 | -3.46 | 171.34 | 0.3559 | -763.1 | 999999 | |
| 6.13 | -47.00 | 3.23 | -47.00 | -26.86 | 87.90 | -3.49 | 170.80 | 0.3417 | 817.5 | 999999 | |
| 0.00 | 2.77 | 0.00 | 1.45 | -25.57 | 87.78 | -3.62 | 169.74 | 0.3211 | -822.0 | -605.0 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -27.75 | 87.67 | -3.72 | 170.68 | 0.3566 | -732.0 | -425.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -27.46 | 87.25 | -4.15 | 169.47 | 0.3531 | -616.0 | -534.5 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -28.50 | 86.90 | -4.50 | 169.24 | 0.3709 | -585.0 | -537.8 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -25.10 | 86.87 | -4.52 | 166.89 | 0.3163 | 607.0 | 435.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -28.28 | 86.57 | -4.83 | 168.34 | 0.3683 | -757.0 | -569.7 | |
| 40.09 | -47.00 | 21.11 | -47.00 | -26.53 | 86.55 | -4.85 | 167.12 | 0.3406 | -1411.7 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.43 | -28.72 | 86.41 | -4.98 | 168.25 | 0.3759 | -737.0 | -591.4 | |
| 0.00 | 2.77 | 0.00 | 1.47 | -28.43 | 86.29 | -5.11 | 167.79 | 0.3717 | -1027.0 | -854.6 | |
| 0.00 | 2.85 | 0.00 | 1.52 | -28.69 | 86.04 | -5.36 | 167.38 | 0.3766 | -630.0 | -608.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -25.37 | 86.14 | -5.26 | 165.10 | 0.3236 | 414.0 | 255.8 | |
| 3.54 | 5.70 | 1.89 | 3.04 | -28.49 | 85.85 | -5.55 | 166.81 | 0.3742 | -1017.0 | -739.3 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -28.39 | 85.58 | -5.82 | 166.14 | 0.3737 | -789.0 | -670.2 | |
| 0.00 | 4.58 | 0.00 | 2.40 | -25.61 | 85.69 | -5.70 | 164.15 | 0.3295 | -335.0 | -391.7 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -26.24 | 85.26 | -6.13 | 163.61 | 0.3412 | -671.0 | -517.2 | |
| 0.00 | 1.56 | 0.00 | 0.82 | -25.95 | 85.24 | -6.15 | 163.30 | 0.3369 | -757.0 | -616.6 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -26.42 | 85.19 | -6.21 | 163.59 | 0.3445 | -838.0 | -638.6 | |
| 0.00 | 2.94 | 0.00 | 1.58 | -29.51 | 84.93 | -6.47 | 165.52 | 0.3935 | -614.0 | -491.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -26.26 | 84.99 | -6.40 | 162.97 | 0.3429 | -904.0 | -700.5 | |
| 0.00 | 5.70 | 0.00 | 3.01 | -26.48 | 84.92 | -6.48 | 162.98 | 0.3467 | -668.0 | -604.5 | |
| 0.00 | 4.67 | 0.00 | 2.47 | -26.92 | 84.62 | -6.78 | 162.68 | 0.3549 | -708.0 | -675.6 | |
| 0.86 | 4.32 | 0.46 | 2.29 | -27.33 | 84.53 | -6.87 | 162.84 | 0.3617 | 556.7 | -44.3 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -29.06 | 83.21 | -8.18 | 161.53 | 0.3945 | -838.0 | -652.9 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -26.52 | 83.37 | -8.02 | 159.33 | 0.3554 | -745.0 | -553.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
