SDO HMI 2014-03-04 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.95 | 111.54 | 15.61 | 78.93 | 13.45 | 50.01 | -40.84 | 63.00 | 0.7157 | -69.9 | 37.7 | |
|
previous
or next observation for the same group /

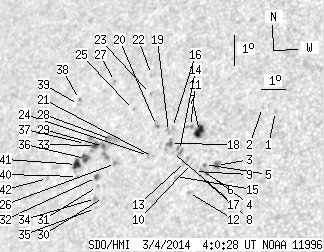

back to the solar disc SDO HMI 2014-03-04 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.74 | 14.18 | 55.24 | -35.61 | 58.75 | 0.6626 | -738.0 | -581.0 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 14.35 | 54.72 | -36.13 | 58.90 | 0.6695 | -614.0 | -530.4 | |
| 1.21 | 4.84 | 0.81 | 3.24 | 12.63 | 53.26 | -37.59 | 62.14 | 0.6756 | -836.6 | -669.2 | |
| 0.00 | 1.90 | 0.00 | 1.28 | 12.41 | 52.91 | -37.93 | 62.66 | 0.6782 | -760.0 | -659.1 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 12.70 | 52.79 | -38.06 | 62.35 | 0.6813 | -771.0 | -696.9 | |
| 0.00 | 1.30 | 0.00 | 0.87 | 12.52 | 52.70 | -38.15 | 62.64 | 0.6813 | -770.0 | -728.9 | |
| 7.00 | 10.20 | 4.79 | 6.97 | 13.78 | 52.39 | -38.46 | 61.19 | 0.6917 | -821.9 | -532.4 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 12.34 | 52.66 | -38.19 | 62.92 | 0.6808 | -671.0 | -497.8 | |
| 0.00 | 0.86 | 0.00 | 0.59 | 12.51 | 52.43 | -38.42 | 62.82 | 0.6843 | -553.0 | -463.6 | |
| 0.00 | 0.78 | 0.00 | 0.53 | 12.78 | 52.27 | -38.58 | 62.57 | 0.6876 | -471.0 | -542.2 | |
| 0.00 | 2.33 | 0.00 | 1.61 | 13.97 | 52.00 | -38.85 | 61.18 | 0.6971 | -499.0 | -426.1 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 11.86 | 52.31 | -38.54 | 63.76 | 0.6822 | -727.0 | -579.5 | |
| 0.00 | 4.06 | 0.00 | 2.77 | 12.86 | 52.02 | -38.83 | 62.61 | 0.6908 | -769.0 | -544.6 | |
| 0.00 | 4.06 | 0.00 | 2.79 | 13.23 | 51.71 | -39.14 | 62.31 | 0.6963 | -729.0 | -612.7 | |
| 0.00 | 1.12 | 0.00 | 0.77 | 12.42 | 51.70 | -39.15 | 63.39 | 0.6919 | -500.0 | -435.2 | |
| 0.00 | 0.86 | 0.00 | 0.60 | 14.00 | 51.28 | -39.57 | 61.59 | 0.7051 | -522.0 | -392.2 | |
| 0.00 | 0.78 | 0.00 | 0.54 | 13.19 | 51.44 | -39.41 | 62.53 | 0.6990 | -526.0 | -434.0 | |
| 0.95 | 5.19 | 0.66 | 3.60 | 13.49 | 51.30 | -39.55 | 62.23 | 0.7021 | -660.0 | -483.0 | |
| 0.00 | 2.59 | 0.00 | 1.81 | 13.88 | 51.14 | -39.71 | 61.82 | 0.7060 | -522.0 | -386.6 | |
| 0.00 | 3.02 | 0.00 | 2.13 | 14.12 | 50.61 | -40.24 | 61.83 | 0.7129 | -617.0 | -455.0 | |
| 0.00 | 1.12 | 0.00 | 0.78 | 13.13 | 50.65 | -40.20 | 63.07 | 0.7073 | -631.0 | -459.3 | |
| 0.00 | 1.73 | 0.00 | 1.24 | 15.80 | 50.03 | -40.82 | 60.08 | 0.7281 | -597.0 | -490.5 | |
| 0.00 | 1.12 | 0.00 | 0.80 | 15.18 | 50.13 | -40.72 | 60.78 | 0.7237 | -594.0 | -410.2 | |
| 0.00 | 2.42 | 0.00 | 1.70 | 13.18 | 50.48 | -40.37 | 63.10 | 0.7094 | -444.0 | -394.1 | |
| 0.00 | 1.30 | 0.00 | 0.93 | 14.72 | 49.54 | -41.31 | 61.70 | 0.7274 | 581.0 | 429.8 | |
| 0.00 | 2.07 | 0.00 | 1.48 | 13.04 | 49.17 | -41.68 | 64.01 | 0.7230 | 733.0 | 652.3 | |
| 0.00 | 0.69 | 0.00 | 0.51 | 15.71 | 48.52 | -42.33 | 61.07 | 0.7431 | 664.0 | 589.9 | |
| 0.00 | 8.99 | 0.00 | 6.49 | 13.83 | 48.84 | -42.01 | 63.20 | 0.7304 | 331.0 | 611.1 | |
| 0.86 | 16.94 | 0.63 | 12.32 | 13.63 | 48.55 | -42.30 | 63.60 | 0.7325 | 905.2 | 688.0 | |
| 0.00 | 1.04 | 0.00 | 0.74 | 12.00 | 48.89 | -41.96 | 65.50 | 0.7211 | 815.0 | 691.6 | |
| 0.00 | 1.12 | 0.00 | 0.81 | 12.37 | 48.57 | -42.28 | 65.19 | 0.7263 | 632.0 | 513.1 | |
| 1.12 | 2.77 | 0.81 | 1.99 | 12.67 | 48.47 | -42.38 | 64.87 | 0.7288 | 843.8 | 722.2 | |
| 2.68 | -29.00 | 1.95 | -29.00 | 13.70 | 48.20 | -42.65 | 63.71 | 0.7365 | 819.1 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.36 | 12.00 | 48.56 | -42.29 | 65.67 | 0.7247 | 874.0 | 724.3 | |
| 0.00 | 0.43 | 0.00 | 0.31 | 11.68 | 48.62 | -42.23 | 66.05 | 0.7226 | 505.0 | 380.2 | |
| 3.46 | 5.96 | 2.53 | 4.36 | 13.32 | 47.87 | -42.98 | 64.36 | 0.7382 | 721.2 | 584.3 | |
| 0.00 | 0.60 | 0.00 | 0.45 | 13.80 | 47.76 | -43.09 | 63.82 | 0.7416 | 504.0 | 438.7 | |
| 0.00 | 1.21 | 0.00 | 0.91 | 15.25 | 47.15 | -43.70 | 62.36 | 0.7547 | 500.0 | 463.7 | |
| 0.00 | 1.04 | 0.00 | 0.78 | 15.10 | 47.15 | -43.70 | 62.55 | 0.7540 | 719.0 | 537.1 | |
| 0.00 | 0.95 | 0.00 | 0.70 | 12.77 | 47.65 | -43.20 | 65.16 | 0.7380 | 613.0 | 485.5 | |
| 4.67 | 7.86 | 3.43 | 5.78 | 13.16 | 47.53 | -43.32 | 64.74 | 0.7411 | 609.0 | 431.9 | |
| 0.00 | 1.30 | 0.00 | 0.97 | 12.83 | 46.37 | -44.48 | 65.73 | 0.7518 | 370.0 | 301.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
