SDO HMI 2014-03-04 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.42 | 104.41 | 18.57 | 117.11 | -1.69 | 154.05 | 63.75 | 271.69 | 0.8984 | -400.1 | -165.8 | |
|
previous
or next observation for the same group /

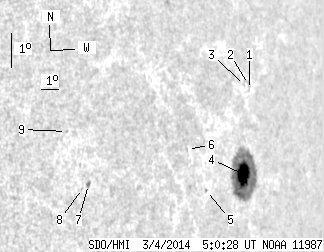

back to the solar disc SDO HMI 2014-03-04 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.70 | 0.86 | 154.72 | 64.42 | 274.40 | 0.9064 | -187.0 | -160.1 | |
| 0.00 | 1.90 | 0.00 | 2.21 | 1.00 | 154.66 | 64.36 | 274.56 | 0.9060 | -344.0 | -212.6 | |
| 0.00 | 0.52 | 0.00 | 0.60 | 0.94 | 154.38 | 64.08 | 274.54 | 0.9039 | -540.0 | -488.5 | |
| 16.42 | 96.02 | 18.57 | 108.75 | -1.74 | 154.34 | 64.04 | 271.60 | 0.9009 | -548.7 | -179.7 | |
| 0.00 | 0.86 | 0.00 | 0.90 | -2.49 | 151.96 | 61.65 | 271.10 | 0.8814 | -396.0 | -358.5 | |
| 0.00 | 0.69 | 0.00 | 0.70 | -1.39 | 150.71 | 60.41 | 272.51 | 0.8722 | -528.0 | -501.2 | |
| 0.00 | 2.42 | 0.00 | 2.08 | -3.03 | 145.25 | 54.95 | 271.40 | 0.8200 | 549.0 | 424.4 | |
| 0.00 | 0.61 | 0.00 | 0.52 | -3.18 | 144.95 | 54.65 | 271.26 | 0.8168 | 541.0 | 483.9 | |
| 0.00 | 0.78 | 0.00 | 0.65 | -1.56 | 144.05 | 53.74 | 273.38 | 0.8097 | 463.0 | 417.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
