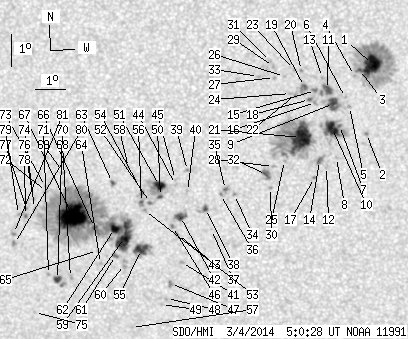

SDO HMI 2014-03-04 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 201.64 | 825.43 | 105.26 | 430.93 | -25.18 | 90.70 | 0.40 | 182.42 | 0.3160 | -38.0 | -22.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.64 | 132.24 | 11.65 | 68.03 | -21.81 | 96.22 | 5.92 | 200.80 | 0.2708 | 1331.5 | 434.2 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -23.94 | 96.11 | 5.81 | 197.83 | 0.3036 | -951.0 | -725.6 | |
| 0.86 | -1.00 | 0.44 | -1.00 | -21.97 | 95.81 | 5.50 | 199.26 | 0.2709 | 1126.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -22.15 | 95.65 | 5.35 | 198.53 | 0.2730 | 647.0 | 589.5 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -23.11 | 95.53 | 5.22 | 197.01 | 0.2876 | 786.0 | 529.5 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -22.83 | 95.39 | 5.08 | 196.88 | 0.2825 | 829.0 | 705.8 | |
| 0.52 | 36.13 | 0.27 | 18.73 | -23.70 | 95.22 | 4.92 | 195.48 | 0.2956 | 796.0 | 523.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -24.70 | 95.16 | 4.86 | 194.38 | 0.3113 | 707.0 | 538.4 | |
| 7.95 | 14.87 | 4.11 | 7.68 | -23.02 | 95.01 | 4.70 | 195.49 | 0.2837 | 1080.3 | 802.8 | |
| 12.10 | -7.00 | 6.27 | -7.00 | -23.80 | 95.00 | 4.70 | 194.72 | 0.2962 | 1145.2 | 999999 | |
| 4.67 | 9.59 | 2.40 | 4.94 | -22.59 | 94.80 | 4.49 | 195.27 | 0.2759 | 1149.8 | 938.0 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -24.98 | 94.84 | 4.54 | 193.25 | 0.3146 | -213.0 | -223.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -22.22 | 94.62 | 4.32 | 195.09 | 0.2691 | 960.0 | 758.9 | |
| 1.56 | 5.45 | 0.81 | 2.84 | -24.80 | 94.61 | 4.31 | 192.73 | 0.3107 | 760.7 | 525.5 | |
| 0.52 | 2.25 | 0.27 | 1.16 | -22.63 | 94.41 | 4.11 | 193.99 | 0.2748 | 1143.0 | 920.3 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -23.00 | 94.42 | 4.12 | 193.68 | 0.2808 | 943.0 | 845.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -25.33 | 94.46 | 4.16 | 191.92 | 0.3188 | -723.0 | -643.8 | |
| 0.78 | 2.07 | 0.40 | 1.07 | -22.91 | 94.22 | 3.92 | 193.13 | 0.2786 | 1114.0 | 869.1 | |
| 1.38 | 6.31 | 0.71 | 3.25 | -22.51 | 94.05 | 3.75 | 192.92 | 0.2714 | 1172.3 | 952.3 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -22.01 | 93.94 | 3.64 | 193.00 | 0.2629 | -631.0 | -484.0 | |
| 36.47 | 115.30 | 18.91 | 59.79 | -24.08 | 93.96 | 3.66 | 191.38 | 0.2969 | 1184.6 | 459.1 | |
| 0.00 | 2.25 | 0.00 | 1.16 | -22.75 | 93.77 | 3.47 | 191.77 | 0.2745 | 918.0 | 800.3 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -21.98 | 93.72 | 3.41 | 192.24 | 0.2616 | 747.0 | 620.0 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -22.72 | 93.61 | 3.30 | 191.26 | 0.2734 | 802.0 | 709.5 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -24.80 | 93.46 | 3.16 | 189.41 | 0.3072 | 664.0 | 543.5 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -22.20 | 93.40 | 3.10 | 190.97 | 0.2641 | 727.0 | 594.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -22.23 | 93.08 | 2.78 | 189.84 | 0.2637 | 861.0 | 758.8 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -24.99 | 93.10 | 2.80 | 188.27 | 0.3094 | 811.0 | 621.1 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -21.90 | 93.04 | 2.74 | 189.94 | 0.2580 | 1040.0 | 855.5 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -25.65 | 93.02 | 2.72 | 187.70 | 0.3200 | 583.0 | 518.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -21.74 | 92.94 | 2.64 | 189.70 | 0.2551 | 952.0 | 725.6 | |
| 2.94 | 6.66 | 1.53 | 3.47 | -25.24 | 92.88 | 2.58 | 187.49 | 0.3130 | 958.5 | 686.7 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -22.20 | 92.57 | 2.26 | 188.06 | 0.2619 | 782.0 | 682.1 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -25.87 | 91.83 | 1.53 | 184.30 | 0.3217 | -918.0 | -710.1 | |
| 0.61 | 2.25 | 0.32 | 1.17 | -25.72 | 91.53 | 1.23 | 183.50 | 0.3188 | -1133.9 | -936.5 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -25.87 | 91.37 | 1.07 | 183.01 | 0.3212 | -763.0 | -639.3 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -26.98 | 91.08 | 0.78 | 182.05 | 0.3392 | -635.0 | -414.8 | |
| 1.64 | 4.67 | 0.86 | 2.45 | -26.31 | 90.88 | 0.57 | 181.57 | 0.3282 | -986.3 | -703.6 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -25.12 | 90.28 | -0.02 | 179.93 | 0.3082 | 947.0 | 720.2 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -25.78 | 90.28 | -0.02 | 179.93 | 0.3192 | -773.0 | -528.4 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -28.02 | 90.08 | -0.23 | 179.43 | 0.3562 | -954.0 | -759.5 | |
| 4.93 | 9.51 | 2.59 | 4.99 | -26.56 | 90.05 | -0.26 | 179.31 | 0.3322 | -1012.7 | -694.0 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -27.13 | 89.94 | -0.36 | 179.06 | 0.3416 | -810.0 | -669.5 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -25.56 | 89.89 | -0.42 | 178.80 | 0.3156 | -423.0 | -438.7 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -25.40 | 89.89 | -0.42 | 178.79 | 0.3130 | 530.0 | 470.6 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -26.88 | 89.78 | -0.52 | 178.61 | 0.3375 | -1065.0 | -872.8 | |
| 0.00 | 3.11 | 0.00 | 1.66 | -28.69 | 89.70 | -0.60 | 178.55 | 0.3672 | -962.0 | -813.7 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -29.17 | 89.56 | -0.74 | 178.26 | 0.3751 | -593.0 | -566.4 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -29.36 | 89.39 | -0.91 | 177.88 | 0.3783 | -757.0 | -610.2 | |
| 1.12 | 24.81 | 0.59 | 12.95 | -25.93 | 89.39 | -0.91 | 177.43 | 0.3221 | -506.9 | 272.7 | |
| 7.26 | -50.00 | 3.79 | -50.00 | -25.59 | 89.36 | -0.94 | 177.29 | 0.3164 | 1061.7 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.22 | -26.12 | 89.06 | -1.25 | 176.54 | 0.3255 | -373.0 | -536.1 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -26.37 | 88.85 | -1.45 | 176.04 | 0.3298 | -939.0 | -795.1 | |
| 0.61 | 8.12 | 0.32 | 4.25 | -25.81 | 88.79 | -1.51 | 175.74 | 0.3206 | 955.0 | -115.8 | |
| 9.51 | 19.62 | 5.02 | 10.37 | -27.60 | 88.73 | -1.57 | 176.01 | 0.3502 | -1051.9 | -584.4 | |
| 0.78 | -54.00 | 0.41 | -54.00 | -26.12 | 88.76 | -1.55 | 175.72 | 0.3258 | -1017.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -30.10 | 88.35 | -1.95 | 175.66 | 0.3911 | -693.0 | -509.5 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -25.02 | 88.35 | -1.96 | 174.21 | 0.3082 | -704.0 | -463.2 | |
| 22.99 | 332.76 | 12.12 | 175.05 | -27.22 | 88.17 | -2.13 | 174.47 | 0.3447 | -1173.5 | -404.3 | |
| 0.00 | 4.93 | 0.00 | 2.61 | -28.08 | 88.15 | -2.15 | 174.69 | 0.3587 | -297.0 | -229.2 | |
| 0.86 | 2.42 | 0.46 | 1.28 | -27.79 | 87.86 | -2.45 | 173.86 | 0.3545 | -785.2 | -643.3 | |
| 5.70 | -59.00 | 3.00 | -59.00 | -26.93 | 87.84 | -2.46 | 173.52 | 0.3406 | 895.4 | 999999 | |
| 0.86 | 1.64 | 0.45 | 0.86 | -25.49 | 87.81 | -2.49 | 172.85 | 0.3169 | -801.1 | -645.1 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -28.04 | 87.35 | -2.96 | 172.69 | 0.3596 | -699.0 | -564.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -27.63 | 87.26 | -3.05 | 172.30 | 0.3530 | -411.0 | -372.4 | |
| 2.25 | -59.00 | 1.18 | -59.00 | -26.90 | 87.18 | -3.13 | 171.78 | 0.3414 | -798.3 | 999999 | |
| 46.50 | -59.00 | 24.45 | -59.00 | -26.51 | 86.46 | -3.85 | 169.70 | 0.3370 | -1445.4 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -28.48 | 86.32 | -3.99 | 170.43 | 0.3691 | -866.0 | -752.3 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -25.16 | 86.21 | -4.10 | 168.14 | 0.3159 | 530.0 | 401.3 | |
| 3.28 | 8.21 | 1.75 | 4.38 | -28.54 | 85.87 | -4.43 | 169.42 | 0.3713 | -993.4 | -664.8 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -28.38 | 85.58 | -4.73 | 168.63 | 0.3696 | -761.0 | -542.8 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -25.75 | 85.62 | -4.68 | 166.97 | 0.3275 | -966.0 | -687.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -25.59 | 85.60 | -4.71 | 166.78 | 0.3251 | -839.0 | -620.3 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -26.28 | 85.20 | -5.10 | 166.28 | 0.3376 | -786.0 | -649.4 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -29.59 | 85.04 | -5.27 | 168.15 | 0.3904 | -819.0 | -742.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -26.00 | 85.18 | -5.12 | 166.00 | 0.3331 | -905.0 | -692.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -26.28 | 84.94 | -5.37 | 165.59 | 0.3386 | -939.0 | -792.7 | |
| 0.35 | 2.94 | 0.18 | 1.55 | -26.50 | 84.89 | -5.41 | 165.66 | 0.3422 | -942.5 | -712.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -26.46 | 84.66 | -5.64 | 165.04 | 0.3427 | -763.0 | -608.8 | |
| 0.00 | 2.42 | 0.00 | 1.28 | -27.38 | 84.48 | -5.83 | 165.34 | 0.3578 | 332.0 | 372.0 | |
| 0.00 | 2.07 | 0.00 | 1.10 | -27.06 | 84.46 | -5.84 | 165.05 | 0.3529 | -734.0 | -651.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
