SDO HMI 2014-03-04 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 200.96 | 832.19 | 104.94 | 434.45 | -25.17 | 90.77 | 1.01 | 184.11 | 0.3163 | -46.9 | -7.6 | |
|
previous
or next observation for the same group /

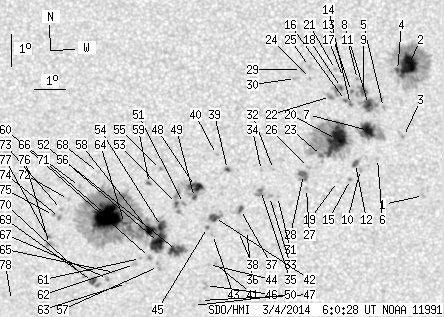

back to the solar disc SDO HMI 2014-03-04 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.25 | 0.00 | 1.18 | -25.83 | 96.92 | 7.17 | 199.37 | 0.3401 | 692.0 | 582.6 | |
| 23.08 | 121.88 | 11.88 | 62.76 | -21.77 | 96.22 | 6.47 | 202.58 | 0.2736 | 1346.7 | 453.3 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -23.99 | 96.16 | 6.41 | 199.44 | 0.3077 | -895.0 | -735.1 | |
| 1.47 | -2.00 | 0.76 | -2.00 | -21.96 | 95.88 | 6.12 | 201.23 | 0.2744 | 1135.5 | 999999 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -23.10 | 95.47 | 5.72 | 198.50 | 0.2900 | 726.0 | 544.2 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -24.69 | 95.34 | 5.59 | 196.42 | 0.3144 | 716.0 | 521.9 | |
| 11.93 | 33.88 | 6.19 | 17.59 | -23.82 | 95.01 | 5.26 | 196.35 | 0.2991 | 1142.2 | 490.2 | |
| 7.09 | 19.62 | 3.66 | 10.14 | -23.02 | 94.98 | 5.23 | 197.11 | 0.2861 | 1122.7 | 730.2 | |
| 3.37 | 8.73 | 1.74 | 4.50 | -22.62 | 94.81 | 5.05 | 197.01 | 0.2789 | 1181.9 | 957.8 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -25.04 | 94.80 | 5.04 | 194.59 | 0.3175 | -258.0 | -257.3 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -22.25 | 94.60 | 4.84 | 196.77 | 0.2720 | 1026.0 | 833.7 | |
| 1.82 | 4.84 | 0.95 | 2.52 | -24.85 | 94.63 | 4.87 | 194.27 | 0.3139 | 746.4 | 518.1 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -22.62 | 94.42 | 4.66 | 195.78 | 0.2771 | 1209.0 | 994.9 | |
| 0.52 | 5.27 | 0.27 | 2.72 | -23.02 | 94.40 | 4.64 | 195.30 | 0.2835 | 925.2 | 867.9 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -25.35 | 94.48 | 4.72 | 193.46 | 0.3213 | -860.0 | -704.3 | |
| 0.43 | -14.00 | 0.22 | -14.00 | -22.90 | 94.23 | 4.48 | 194.90 | 0.2808 | 1097.4 | 999999 | |
| 0.00 | 2.94 | 0.00 | 1.51 | -22.19 | 94.15 | 4.39 | 195.35 | 0.2689 | 410.0 | 416.2 | |
| 0.95 | 8.13 | 0.49 | 4.18 | -22.50 | 94.09 | 4.33 | 194.85 | 0.2737 | 1157.2 | 901.8 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -25.42 | 94.05 | 4.30 | 192.24 | 0.3208 | 686.0 | 550.7 | |
| 37.51 | 124.64 | 19.47 | 64.68 | -24.11 | 93.98 | 4.22 | 193.03 | 0.2994 | 1166.7 | 427.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -21.95 | 93.88 | 4.13 | 194.72 | 0.2638 | -686.0 | -435.7 | |
| 0.00 | 3.28 | 0.00 | 1.69 | -22.78 | 93.74 | 3.99 | 193.45 | 0.2768 | 898.0 | 785.1 | |
| 0.78 | -20.00 | 0.40 | -20.00 | -24.61 | 93.50 | 3.75 | 191.25 | 0.3059 | 858.4 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -22.23 | 93.09 | 3.33 | 191.74 | 0.2654 | 870.0 | 656.3 | |
| 0.00 | 3.46 | 0.00 | 1.77 | -21.86 | 93.04 | 3.29 | 191.91 | 0.2592 | 894.0 | 583.2 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -24.99 | 93.09 | 3.33 | 189.80 | 0.3108 | 800.0 | 581.6 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -25.64 | 93.04 | 3.28 | 189.28 | 0.3214 | 739.0 | 556.6 | |
| 3.54 | 8.30 | 1.85 | 4.33 | -25.21 | 92.93 | 3.17 | 189.22 | 0.3139 | 992.4 | 678.8 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -21.95 | 92.79 | 3.03 | 190.94 | 0.2599 | 973.0 | 819.2 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -22.23 | 92.60 | 2.85 | 190.08 | 0.2639 | 789.0 | 666.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -25.90 | 92.09 | 2.33 | 186.52 | 0.3234 | -767.0 | -627.9 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -25.06 | 91.94 | 2.18 | 186.43 | 0.3092 | 715.0 | 582.2 | |
| 0.00 | 2.51 | 0.00 | 1.31 | -25.90 | 91.82 | 2.06 | 185.78 | 0.3230 | -893.0 | -729.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -25.09 | 91.55 | 1.79 | 185.27 | 0.3091 | 800.0 | 641.5 | |
| 0.86 | 6.57 | 0.45 | 3.43 | -25.71 | 91.52 | 1.76 | 185.00 | 0.3194 | -1079.4 | -749.3 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -26.97 | 91.07 | 1.31 | 183.47 | 0.3396 | -567.0 | -310.6 | |
| 1.64 | 4.32 | 0.86 | 2.27 | -26.31 | 90.87 | 1.11 | 183.04 | 0.3285 | -999.7 | -740.6 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -27.01 | 90.80 | 1.05 | 182.76 | 0.3399 | -839.0 | -685.1 | |
| 1.21 | 2.33 | 0.63 | 1.21 | -25.06 | 90.43 | 0.67 | 181.99 | 0.3074 | 955.3 | 742.3 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -24.59 | 90.07 | 0.31 | 180.95 | 0.2994 | 893.0 | 660.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -28.05 | 90.04 | 0.28 | 180.70 | 0.3567 | -971.0 | -816.2 | |
| 4.49 | 8.56 | 2.36 | 4.49 | -26.56 | 90.00 | 0.25 | 180.67 | 0.3323 | -1054.9 | -747.5 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -27.10 | 89.94 | 0.18 | 180.47 | 0.3411 | -765.0 | -633.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -28.05 | 89.80 | 0.05 | 180.12 | 0.3567 | -891.0 | -711.5 | |
| 0.43 | 1.90 | 0.23 | 1.00 | -26.88 | 89.77 | 0.01 | 180.04 | 0.3374 | -1021.4 | -799.4 | |
| 0.00 | 3.63 | 0.00 | 1.93 | -28.72 | 89.70 | -0.06 | 179.87 | 0.3677 | -792.0 | -718.3 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -29.20 | 89.53 | -0.23 | 179.47 | 0.3755 | -747.0 | -594.5 | |
| 8.30 | 37.51 | 4.33 | 19.60 | -25.59 | 89.38 | -0.38 | 178.91 | 0.3161 | 1045.9 | 157.9 | |
| 1.12 | -48.00 | 0.59 | -48.00 | -25.93 | 89.34 | -0.41 | 178.84 | 0.3219 | -498.0 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -29.36 | 89.29 | -0.47 | 178.92 | 0.3781 | -797.0 | -591.5 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -26.12 | 88.98 | -0.78 | 177.84 | 0.3251 | -604.0 | -489.5 | |
| 8.99 | 14.00 | 4.75 | 7.40 | -27.60 | 88.73 | -1.03 | 177.39 | 0.3498 | -1036.1 | -723.3 | |
| 0.86 | -48.00 | 0.45 | -48.00 | -26.12 | 88.75 | -1.01 | 177.20 | 0.3253 | -1025.3 | 999999 | |
| 5.45 | 328.03 | 2.86 | 172.51 | -26.84 | 88.24 | -1.52 | 175.97 | 0.3377 | -1187.3 | -407.5 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -25.05 | 88.23 | -1.53 | 175.49 | 0.3081 | -635.0 | -515.7 | |
| 17.55 | -54.00 | 9.26 | -54.00 | -27.35 | 88.13 | -1.63 | 175.80 | 0.3461 | -1181.8 | 999999 | |
| 0.00 | 3.54 | 0.00 | 1.88 | -28.11 | 88.12 | -1.64 | 175.95 | 0.3586 | -271.0 | -234.8 | |
| 6.31 | -54.00 | 3.32 | -54.00 | -26.97 | 87.84 | -1.92 | 174.94 | 0.3403 | 819.4 | 999999 | |
| 0.78 | 2.07 | 0.41 | 1.08 | -25.49 | 87.86 | -1.89 | 174.56 | 0.3159 | -812.8 | -657.1 | |
| 0.00 | 2.59 | 0.00 | 1.37 | -27.82 | 87.82 | -1.94 | 175.14 | 0.3543 | -890.0 | -710.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -27.85 | 87.52 | -2.24 | 174.39 | 0.3552 | -825.0 | -642.8 | |
| 0.00 | 3.11 | 0.00 | 1.65 | -28.04 | 87.31 | -2.45 | 173.94 | 0.3587 | -675.0 | -561.1 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -28.65 | 87.02 | -2.73 | 173.46 | 0.3690 | -697.0 | -519.3 | |
| 0.78 | -54.00 | 0.41 | -54.00 | -26.74 | 87.01 | -2.75 | 172.69 | 0.3380 | -892.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -28.29 | 86.63 | -3.13 | 172.38 | 0.3640 | -761.0 | -611.9 | |
| 46.76 | -54.00 | 24.58 | -54.00 | -26.52 | 86.45 | -3.31 | 171.11 | 0.3357 | -1474.6 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -28.48 | 86.38 | -3.37 | 171.88 | 0.3676 | -854.0 | -758.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -25.13 | 86.19 | -3.56 | 169.62 | 0.3138 | 648.0 | 436.8 | |
| 2.94 | 6.66 | 1.57 | 3.55 | -28.57 | 85.87 | -3.88 | 170.72 | 0.3704 | -991.8 | -696.6 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -28.41 | 85.57 | -4.18 | 169.93 | 0.3686 | -723.0 | -470.5 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -25.57 | 85.55 | -4.21 | 168.12 | 0.3229 | -947.0 | -696.6 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -25.97 | 85.17 | -4.59 | 167.39 | 0.3307 | -786.0 | -590.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -26.28 | 84.93 | -4.83 | 166.98 | 0.3366 | -945.0 | -756.4 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -26.53 | 84.85 | -4.91 | 166.96 | 0.3409 | -1159.0 | -861.6 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -26.47 | 84.65 | -5.11 | 166.41 | 0.3406 | -764.0 | -581.8 | |
| 0.00 | 3.80 | 0.00 | 2.01 | -27.38 | 84.47 | -5.28 | 166.65 | 0.3558 | 274.0 | 185.3 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -27.16 | 84.45 | -5.31 | 166.44 | 0.3524 | -749.0 | -642.8 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -29.15 | 83.08 | -6.68 | 164.80 | 0.3890 | -660.0 | -547.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
