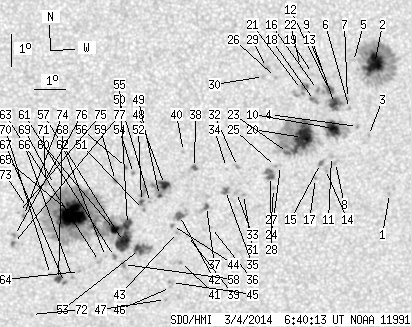

SDO HMI 2014-03-04 06:40:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 187.56 | 820.01 | 97.97 | 428.15 | -25.18 | 90.75 | 1.36 | 185.10 | 0.3170 | -59.9 | 3.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 06:40:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.59 | -25.82 | 96.93 | 7.54 | 200.28 | 0.3421 | 815.0 | 663.2 | |
| 22.13 | 126.47 | 11.40 | 65.17 | -21.79 | 96.22 | 6.83 | 203.65 | 0.2763 | 1355.7 | 459.1 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -24.02 | 96.13 | 6.74 | 200.33 | 0.3099 | -863.0 | -682.4 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -23.74 | 95.76 | 6.37 | 199.63 | 0.3036 | 729.0 | 561.1 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -21.74 | 95.54 | 6.15 | 201.62 | 0.2711 | 142.0 | 169.7 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -23.19 | 95.47 | 6.08 | 199.48 | 0.2933 | 646.0 | 477.6 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -22.88 | 95.40 | 6.00 | 199.63 | 0.2881 | 884.0 | 708.5 | |
| 0.00 | 3.20 | 0.00 | 1.67 | -24.87 | 95.09 | 5.70 | 196.54 | 0.3178 | 679.0 | 505.4 | |
| 7.95 | 16.94 | 4.11 | 8.76 | -23.04 | 94.98 | 5.59 | 198.19 | 0.2883 | 1107.2 | 762.3 | |
| 12.27 | 34.58 | 6.37 | 17.96 | -23.81 | 94.98 | 5.59 | 197.31 | 0.3006 | 1146.4 | 490.9 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -24.68 | 94.95 | 5.56 | 196.34 | 0.3142 | 656.0 | 583.3 | |
| 3.11 | 8.30 | 1.61 | 4.28 | -22.61 | 94.80 | 5.41 | 198.15 | 0.2806 | 1177.6 | 997.5 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -22.24 | 94.66 | 5.26 | 198.14 | 0.2740 | 833.0 | 838.6 | |
| 0.00 | 2.77 | 0.00 | 1.45 | -25.09 | 94.77 | 5.38 | 195.46 | 0.3199 | -180.0 | -209.3 | |
| 0.86 | 2.85 | 0.45 | 1.49 | -24.91 | 94.60 | 5.21 | 195.15 | 0.3162 | 812.9 | 629.9 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -22.61 | 94.41 | 5.02 | 196.93 | 0.2787 | 1148.0 | 1034.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -25.38 | 94.45 | 5.06 | 194.34 | 0.3231 | -853.0 | -595.9 | |
| 0.00 | 4.58 | 0.00 | 2.37 | -22.95 | 94.33 | 4.93 | 196.29 | 0.2837 | 1123.0 | 946.9 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -22.12 | 94.24 | 4.84 | 196.91 | 0.2700 | 704.0 | 535.7 | |
| 34.23 | 115.14 | 17.77 | 59.77 | -24.10 | 93.98 | 4.58 | 194.11 | 0.3007 | 1209.5 | 483.4 | |
| 0.00 | 10.72 | 0.00 | 5.52 | -22.62 | 93.90 | 4.50 | 195.27 | 0.2764 | 956.0 | 925.3 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -21.91 | 93.84 | 4.45 | 195.85 | 0.2647 | -458.0 | -358.9 | |
| 1.47 | -20.00 | 0.76 | -20.00 | -24.57 | 93.50 | 4.11 | 192.33 | 0.3065 | 845.7 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -24.98 | 93.29 | 3.89 | 191.41 | 0.3124 | 868.0 | 581.1 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -25.01 | 93.12 | 3.73 | 190.92 | 0.3124 | 989.0 | 716.4 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -22.25 | 93.05 | 3.65 | 192.82 | 0.2670 | 964.0 | 697.4 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -25.70 | 93.08 | 3.68 | 190.36 | 0.3234 | 774.0 | 634.4 | |
| 2.33 | 8.90 | 1.22 | 4.65 | -25.32 | 92.97 | 3.57 | 190.28 | 0.3170 | 898.2 | 800.3 | |
| 0.00 | 2.59 | 0.00 | 1.33 | -21.95 | 92.75 | 3.36 | 192.07 | 0.2609 | 989.0 | 769.8 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -22.22 | 92.66 | 3.27 | 191.53 | 0.2652 | 776.0 | 648.1 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -25.89 | 92.09 | 2.70 | 187.54 | 0.3241 | -857.0 | -701.1 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -25.02 | 91.88 | 2.48 | 187.32 | 0.3092 | 904.0 | 741.6 | |
| 0.00 | 3.11 | 0.00 | 1.63 | -25.83 | 91.86 | 2.46 | 186.92 | 0.3226 | -916.0 | -693.5 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -25.05 | 91.51 | 2.12 | 186.25 | 0.3090 | 323.0 | 418.5 | |
| 1.90 | 4.58 | 0.99 | 2.40 | -25.77 | 91.49 | 2.10 | 185.93 | 0.3209 | -952.7 | -718.2 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -26.94 | 91.05 | 1.65 | 184.36 | 0.3394 | -492.0 | -357.9 | |
| 1.47 | 4.75 | 0.77 | 2.49 | -26.27 | 90.87 | 1.48 | 184.05 | 0.3283 | -945.0 | -706.9 | |
| 1.38 | 4.15 | 0.72 | 2.16 | -25.05 | 90.46 | 1.07 | 183.17 | 0.3077 | 1055.4 | 728.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -27.19 | 90.25 | 0.85 | 182.22 | 0.3429 | -703.0 | -574.4 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -24.55 | 90.10 | 0.71 | 182.16 | 0.2991 | 755.0 | 653.3 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -28.05 | 90.02 | 0.62 | 181.55 | 0.3568 | -956.0 | -783.8 | |
| 3.54 | 8.90 | 1.86 | 4.67 | -26.56 | 89.98 | 0.58 | 181.58 | 0.3323 | -1096.6 | -776.3 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -27.10 | 89.91 | 0.52 | 181.36 | 0.3411 | -805.0 | -636.6 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -26.87 | 89.75 | 0.35 | 180.93 | 0.3374 | -1057.0 | -822.1 | |
| 0.00 | 2.51 | 0.00 | 1.33 | -28.68 | 89.72 | 0.32 | 180.77 | 0.3671 | -950.0 | -688.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -28.84 | 89.68 | 0.29 | 180.68 | 0.3697 | -838.0 | -659.2 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -29.23 | 89.51 | 0.12 | 180.27 | 0.3760 | -853.0 | -660.4 | |
| 6.31 | 22.56 | 3.29 | 11.78 | -25.58 | 89.48 | 0.09 | 180.24 | 0.3160 | 1131.8 | 317.3 | |
| 1.21 | -48.00 | 0.63 | -48.00 | -25.93 | 89.31 | -0.08 | 179.77 | 0.3218 | -463.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -26.15 | 89.02 | -0.38 | 178.95 | 0.3254 | -875.0 | -687.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -26.37 | 88.78 | -0.61 | 178.33 | 0.3292 | -955.0 | -839.8 | |
| 1.30 | 10.20 | 0.68 | 5.33 | -26.12 | 88.72 | -0.68 | 178.12 | 0.3250 | -963.7 | 265.0 | |
| 5.19 | 16.25 | 2.74 | 8.59 | -27.63 | 88.64 | -0.75 | 178.08 | 0.3501 | -1051.7 | -750.1 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -25.24 | 88.46 | -0.93 | 177.27 | 0.3106 | -802.0 | -551.0 | |
| 5.79 | 332.20 | 3.05 | 174.65 | -26.84 | 88.25 | -1.15 | 176.95 | 0.3373 | -1191.3 | -409.3 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -25.05 | 88.23 | -1.16 | 176.56 | 0.3077 | -763.0 | -516.5 | |
| 17.20 | -55.00 | 9.08 | -55.00 | -27.38 | 88.11 | -1.29 | 176.68 | 0.3463 | -1193.0 | 999999 | |
| 0.00 | 2.94 | 0.00 | 1.56 | -28.11 | 88.10 | -1.30 | 176.79 | 0.3582 | -520.0 | -210.2 | |
| 0.61 | 1.99 | 0.32 | 1.04 | -25.45 | 87.87 | -1.53 | 175.59 | 0.3148 | -849.1 | -650.4 | |
| 6.31 | -55.00 | 3.32 | -55.00 | -27.00 | 87.81 | -1.58 | 175.83 | 0.3403 | 867.5 | 999999 | |
| 0.43 | 2.51 | 0.23 | 1.33 | -27.85 | 87.80 | -1.60 | 175.99 | 0.3544 | -925.2 | -695.0 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -27.85 | 87.49 | -1.90 | 175.24 | 0.3547 | -810.0 | -665.7 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -28.01 | 87.29 | -2.11 | 174.77 | 0.3576 | -648.0 | -657.6 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -28.32 | 86.61 | -2.79 | 173.21 | 0.3639 | -775.0 | -645.1 | |
| 46.68 | -55.00 | 24.53 | -55.00 | -26.51 | 86.42 | -2.97 | 172.00 | 0.3349 | -1493.8 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -28.51 | 86.36 | -3.03 | 172.70 | 0.3674 | -983.0 | -770.1 | |
| 0.43 | 6.74 | 0.23 | 3.59 | -28.67 | 86.09 | -3.31 | 172.12 | 0.3705 | -825.6 | -703.6 | |
| 2.94 | -67.00 | 1.57 | -67.00 | -28.57 | 85.89 | -3.51 | 171.60 | 0.3694 | -995.4 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -25.57 | 85.85 | -3.54 | 169.95 | 0.3209 | -798.0 | -553.9 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -28.41 | 85.62 | -3.77 | 170.90 | 0.3675 | -813.0 | -577.8 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -25.50 | 85.56 | -3.84 | 169.10 | 0.3207 | -830.0 | -626.8 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -29.69 | 84.92 | -4.47 | 169.94 | 0.3897 | -461.0 | -483.7 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -26.28 | 84.93 | -4.46 | 167.94 | 0.3353 | -913.0 | -669.4 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -26.53 | 84.79 | -4.61 | 167.74 | 0.3398 | -1045.0 | -868.3 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -26.43 | 84.63 | -4.77 | 167.26 | 0.3389 | -598.0 | -594.6 | |
| 0.00 | 3.03 | 0.00 | 1.60 | -27.16 | 84.46 | -4.93 | 167.35 | 0.3510 | -963.0 | -562.6 | |
| 0.52 | 1.99 | 0.27 | 1.05 | -27.41 | 84.42 | -4.98 | 167.42 | 0.3552 | 713.7 | 522.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
