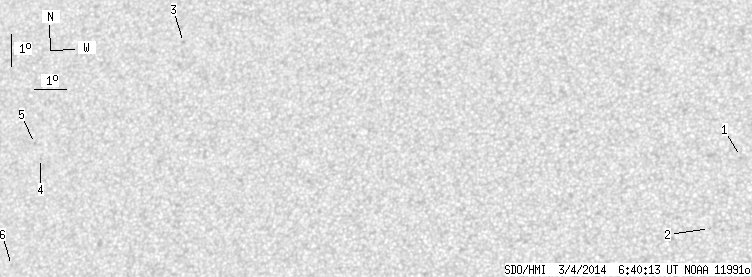

SDO HMI 2014-03-04 06:40:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.19 | 0.00 | 2.89 | 9.23 | 70.23 | -19.17 | 45.03 | 0.4389 | -646.0 | -552.5 | |
|
previous
observation for the same group /
back to the solar disc SDO HMI 2014-03-04 06:40:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.27 | 8.69 | 85.60 | -3.79 | 13.41 | 0.2833 | -545.0 | -685.3 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 6.48 | 84.69 | -4.71 | 18.98 | 0.2517 | -780.0 | -577.3 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 12.77 | 68.09 | -21.31 | 46.70 | 0.4889 | -670.0 | -517.4 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 9.38 | 63.64 | -25.76 | 57.43 | 0.5108 | -634.0 | -534.7 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 9.86 | 63.40 | -26.00 | 56.89 | 0.5176 | -662.0 | -568.4 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 6.14 | 62.88 | -26.51 | 63.81 | 0.4966 | -585.0 | -503.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
