SDO HMI 2014-03-04 06:40:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.73 | 61.90 | 8.77 | 34.44 | 16.92 | 101.66 | 12.27 | 333.49 | 0.4577 | -168.8 | -78.6 | |
|
previous
or next observation for the same group /

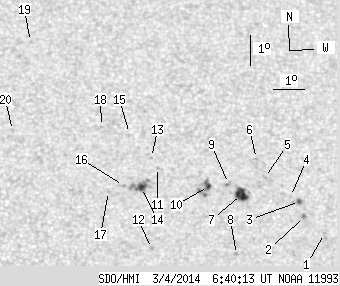

back to the solar disc SDO HMI 2014-03-04 06:40:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.53 | 15.51 | 105.70 | 16.30 | 324.69 | 0.4700 | -736.0 | -584.6 | |
| 0.00 | 1.82 | 0.00 | 1.02 | 16.04 | 105.10 | 15.70 | 326.35 | 0.4714 | -914.0 | -824.4 | |
| 0.95 | 2.25 | 0.54 | 1.26 | 16.52 | 104.98 | 15.58 | 327.13 | 0.4765 | -846.0 | -703.5 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 16.67 | 104.70 | 15.31 | 327.77 | 0.4762 | -679.0 | -506.7 | |
| 0.00 | 1.56 | 0.00 | 0.88 | 17.26 | 103.91 | 14.52 | 329.78 | 0.4776 | -682.0 | -631.9 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 17.88 | 103.71 | 14.31 | 330.80 | 0.4842 | -607.0 | -486.6 | |
| 9.51 | 13.23 | 5.31 | 7.39 | 16.69 | 103.13 | 13.74 | 330.51 | 0.4640 | -1012.9 | -684.3 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 14.74 | 102.84 | 13.44 | 328.79 | 0.4357 | -861.0 | -747.0 | |
| 0.00 | 2.42 | 0.00 | 1.35 | 17.03 | 102.74 | 13.35 | 331.58 | 0.4657 | -787.0 | -622.3 | |
| 1.73 | 11.32 | 0.96 | 6.30 | 16.92 | 102.09 | 12.70 | 332.64 | 0.4595 | -976.2 | -763.5 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 17.49 | 100.51 | 11.12 | 336.17 | 0.4570 | 621.0 | 465.2 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 14.86 | 100.17 | 10.77 | 334.23 | 0.4173 | 743.0 | 622.0 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 17.82 | 100.34 | 10.95 | 336.79 | 0.4605 | 807.0 | 570.6 | |
| 3.54 | 15.82 | 1.96 | 8.74 | 16.83 | 99.96 | 10.57 | 336.61 | 0.4441 | 990.0 | 721.3 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 18.59 | 99.69 | 10.29 | 338.68 | 0.4678 | 424.0 | 493.8 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 16.88 | 99.40 | 10.00 | 337.78 | 0.4414 | 859.0 | 654.7 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 16.67 | 98.91 | 9.52 | 338.58 | 0.4356 | 790.0 | 620.5 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 18.81 | 98.81 | 9.41 | 340.51 | 0.4661 | 522.0 | 475.3 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 21.62 | 96.69 | 7.30 | 346.23 | 0.4981 | 553.0 | 471.4 | |
| 0.00 | 1.73 | 0.00 | 0.96 | 18.62 | 95.98 | 6.58 | 345.99 | 0.4508 | 597.0 | 468.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
