SDO HMI 2014-03-04 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.74 | 0.00 | 2.43 | -12.17 | 75.23 | -12.88 | 114.86 | 0.2385 | -119.8 | -167.5 | |
|
previous
or next observation for the same group /

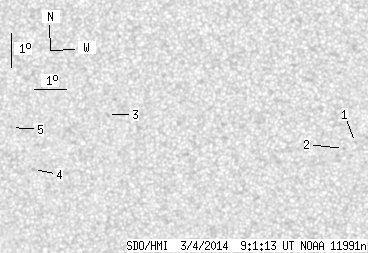

back to the solar disc SDO HMI 2014-03-04 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.48 | -12.45 | 80.98 | -7.13 | 127.12 | 0.1527 | 753.0 | 473.3 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -12.62 | 80.61 | -7.50 | 126.66 | 0.1596 | 977.0 | 728.4 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -11.42 | 73.34 | -14.77 | 107.14 | 0.2626 | -861.0 | -645.1 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -12.98 | 70.90 | -17.21 | 110.11 | 0.3084 | -757.0 | -600.0 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -11.70 | 70.29 | -17.82 | 105.61 | 0.3125 | -711.0 | -612.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
