SDO HMI 2014-03-04 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.57 | 84.87 | 26.59 | 64.08 | 7.92 | 134.31 | 46.74 | 287.16 | 0.7566 | 167.2 | 353.3 | |
|
previous
or next observation for the same group /

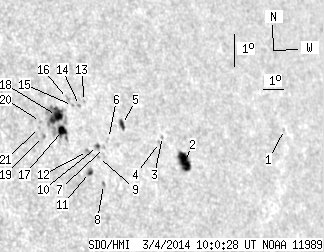

back to the solar disc SDO HMI 2014-03-04 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.24 | 8.99 | 143.57 | 56.00 | 285.34 | 0.8512 | -376.0 | -311.3 | |
| 13.57 | 17.03 | 11.06 | 13.88 | 7.46 | 138.20 | 50.63 | 285.18 | 0.7965 | -682.2 | -420.7 | |
| 0.00 | 0.69 | 0.00 | 0.56 | 8.14 | 137.28 | 49.71 | 286.32 | 0.7890 | -491.0 | -406.1 | |
| 0.00 | 0.52 | 0.00 | 0.41 | 7.93 | 137.10 | 49.53 | 286.13 | 0.7867 | -534.0 | -515.0 | |
| 2.51 | 4.41 | 1.94 | 3.41 | 8.33 | 135.48 | 47.91 | 287.20 | 0.7709 | 467.1 | 298.6 | |
| 0.00 | 0.61 | 0.00 | 0.46 | 7.83 | 134.77 | 47.20 | 286.84 | 0.7618 | 399.0 | 329.9 | |
| 0.00 | 0.69 | 0.00 | 0.52 | 7.54 | 134.55 | 46.98 | 286.54 | 0.7584 | 434.0 | 339.4 | |
| 0.00 | 1.56 | 0.00 | 1.17 | 6.39 | 134.35 | 46.78 | 285.15 | 0.7526 | -553.0 | -562.8 | |
| 0.00 | 0.78 | 0.00 | 0.58 | 7.20 | 134.24 | 46.67 | 286.23 | 0.7540 | 524.0 | 479.3 | |
| 0.69 | 2.07 | 0.52 | 1.56 | 7.54 | 134.24 | 46.67 | 286.66 | 0.7551 | 669.8 | 607.2 | |
| 1.21 | 3.37 | 0.90 | 2.50 | 6.70 | 133.78 | 46.21 | 285.76 | 0.7473 | -692.6 | -553.7 | |
| 0.00 | 1.90 | 0.00 | 1.42 | 7.34 | 133.78 | 46.21 | 286.59 | 0.7493 | 736.0 | 593.4 | |
| 0.00 | 0.69 | 0.00 | 0.52 | 8.89 | 133.88 | 46.31 | 288.51 | 0.7557 | 519.0 | 440.9 | |
| 0.00 | 0.95 | 0.00 | 0.71 | 8.74 | 133.64 | 46.07 | 288.43 | 0.7526 | 676.0 | 566.2 | |
| 0.00 | 1.04 | 0.00 | 0.77 | 8.71 | 133.33 | 45.76 | 288.51 | 0.7492 | 596.0 | 506.1 | |
| 0.00 | 2.07 | 0.00 | 1.54 | 8.91 | 133.15 | 45.58 | 288.84 | 0.7479 | 509.0 | 365.8 | |
| 5.53 | 42.87 | 4.06 | 31.40 | 7.89 | 132.78 | 45.21 | 287.69 | 0.7401 | 656.8 | 568.9 | |
| 11.06 | -17.00 | 8.11 | -17.00 | 8.34 | 132.59 | 45.01 | 288.34 | 0.7396 | 820.6 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.19 | 7.63 | 131.93 | 44.36 | 287.69 | 0.7298 | 659.0 | 597.9 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 8.09 | 131.87 | 44.30 | 288.31 | 0.7307 | 781.0 | 656.0 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 7.90 | 131.80 | 44.23 | 288.09 | 0.7292 | 669.0 | 530.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
