SDO HMI 2014-03-04 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 170.11 | 783.96 | 88.93 | 409.91 | -25.23 | 90.66 | 3.09 | 189.85 | 0.3217 | -36.3 | -24.8 | |
|
previous
or next observation for the same group /

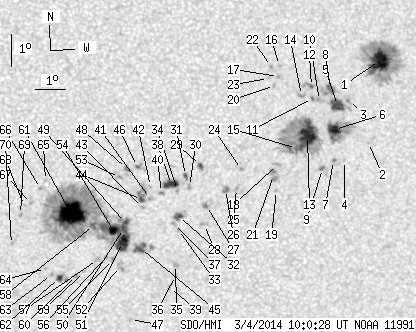

back to the solar disc SDO HMI 2014-03-04 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.99 | 116.52 | 11.89 | 60.28 | -21.70 | 96.28 | 8.70 | 209.24 | 0.2892 | 1337.5 | 475.0 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -24.24 | 96.08 | 8.51 | 204.66 | 0.3246 | -588.0 | -499.1 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -22.95 | 95.34 | 7.77 | 204.60 | 0.3004 | 865.0 | 675.5 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -24.82 | 95.32 | 7.75 | 201.99 | 0.3283 | 702.0 | 572.5 | |
| 9.77 | 16.60 | 5.07 | 8.62 | -23.11 | 94.99 | 7.42 | 203.40 | 0.3004 | 1058.2 | 637.7 | |
| 8.73 | 37.95 | 4.55 | 19.78 | -23.86 | 94.94 | 7.36 | 202.22 | 0.3114 | 1190.0 | 459.8 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -24.82 | 94.96 | 7.39 | 201.06 | 0.3262 | 863.0 | 738.6 | |
| 2.85 | 9.77 | 1.48 | 5.06 | -22.59 | 94.74 | 7.17 | 203.44 | 0.2909 | 1096.6 | 994.7 | |
| 0.69 | 2.33 | 0.36 | 1.22 | -25.07 | 94.61 | 7.04 | 199.86 | 0.3281 | 791.4 | 645.5 | |
| 0.00 | 3.46 | 0.00 | 1.79 | -22.96 | 94.40 | 6.83 | 201.93 | 0.2944 | 934.0 | 853.6 | |
| 0.43 | 1.47 | 0.22 | 0.76 | -22.91 | 94.17 | 6.60 | 201.34 | 0.2921 | 1026.2 | 870.1 | |
| 0.61 | 4.58 | 0.31 | 2.37 | -22.54 | 94.12 | 6.55 | 201.70 | 0.2861 | 1229.7 | 915.3 | |
| 28.70 | 113.93 | 14.94 | 59.31 | -24.05 | 94.06 | 6.49 | 199.59 | 0.3092 | 1185.8 | 491.0 | |
| 0.00 | 3.63 | 0.00 | 1.88 | -22.82 | 93.81 | 6.24 | 200.40 | 0.2886 | 839.0 | 784.9 | |
| 1.04 | -13.00 | 0.54 | -13.00 | -24.46 | 93.72 | 6.15 | 198.19 | 0.3138 | 904.2 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -21.90 | 93.06 | 5.49 | 199.28 | 0.2700 | 813.0 | 664.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -22.24 | 93.04 | 5.47 | 198.78 | 0.2752 | 976.0 | 802.8 | |
| 0.00 | 3.28 | 0.00 | 1.72 | -24.97 | 93.12 | 5.55 | 196.03 | 0.3188 | 1000.0 | 722.4 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -25.78 | 93.12 | 5.55 | 195.29 | 0.3317 | 801.0 | 537.2 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -22.52 | 92.92 | 5.35 | 198.06 | 0.2790 | 793.0 | 501.1 | |
| 0.00 | 7.17 | 0.00 | 3.75 | -25.31 | 93.00 | 5.43 | 195.39 | 0.3238 | 704.0 | 824.1 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -21.94 | 92.80 | 5.23 | 198.40 | 0.2691 | 1003.0 | 760.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -22.31 | 92.72 | 5.15 | 197.68 | 0.2746 | 838.0 | 613.9 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -25.13 | 91.94 | 4.37 | 192.63 | 0.3167 | 803.0 | 658.7 | |
| 0.00 | 3.37 | 0.00 | 1.77 | -25.73 | 91.79 | 4.22 | 191.80 | 0.3258 | -832.0 | -644.9 | |
| 0.00 | 4.49 | 0.00 | 2.35 | -25.76 | 91.43 | 3.86 | 190.80 | 0.3252 | -932.0 | -794.4 | |
| 0.00 | 3.72 | 0.00 | 1.95 | -26.27 | 90.82 | 3.25 | 188.84 | 0.3317 | -958.0 | -672.5 | |
| 0.00 | 3.11 | 0.00 | 1.64 | -26.87 | 90.77 | 3.20 | 188.41 | 0.3413 | -767.0 | -612.4 | |
| 1.38 | 2.77 | 0.72 | 1.44 | -25.02 | 90.59 | 3.02 | 188.87 | 0.3106 | 1114.4 | 934.8 | |
| 0.00 | 2.59 | 0.00 | 1.36 | -25.68 | 90.24 | 2.67 | 187.55 | 0.3206 | -899.0 | -662.2 | |
| 0.95 | 2.42 | 0.50 | 1.26 | -25.33 | 90.10 | 2.53 | 187.32 | 0.3147 | 1027.1 | 721.1 | |
| 3.20 | 8.47 | 1.68 | 4.45 | -26.62 | 89.89 | 2.32 | 186.23 | 0.3355 | -1092.4 | -750.0 | |
| 0.00 | 1.56 | 0.00 | 0.82 | -27.03 | 89.90 | 2.33 | 186.11 | 0.3422 | -814.0 | -667.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -25.80 | 89.85 | 2.28 | 186.40 | 0.3219 | -548.0 | -526.4 | |
| 0.00 | 2.33 | 0.00 | 1.24 | -28.14 | 89.82 | 2.25 | 185.55 | 0.3602 | -900.0 | -810.9 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -28.49 | 89.83 | 2.26 | 185.46 | 0.3659 | -743.0 | -651.7 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -26.87 | 89.73 | 2.16 | 185.72 | 0.3393 | -942.0 | -718.9 | |
| 7.69 | 10.63 | 4.02 | 5.55 | -25.62 | 89.64 | 2.07 | 185.91 | 0.3185 | 1104.5 | 691.3 | |
| 0.00 | 2.59 | 0.00 | 1.38 | -28.88 | 89.63 | 2.06 | 184.89 | 0.3718 | -866.0 | -730.7 | |
| 0.52 | 1.64 | 0.27 | 0.86 | -25.87 | 89.32 | 1.75 | 184.91 | 0.3221 | -620.5 | -390.8 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -26.06 | 88.96 | 1.39 | 183.85 | 0.3248 | -750.0 | -655.9 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -25.68 | 88.95 | 1.38 | 183.93 | 0.3186 | 832.0 | 694.3 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -26.34 | 88.69 | 1.12 | 183.07 | 0.3292 | -878.0 | -676.8 | |
| 1.99 | 11.15 | 1.04 | 5.83 | -26.09 | 88.66 | 1.09 | 183.02 | 0.3250 | -977.1 | 303.7 | |
| 5.36 | 13.57 | 2.83 | 7.17 | -27.64 | 88.64 | 1.07 | 182.71 | 0.3505 | -1029.4 | -742.1 | |
| 0.52 | 5.36 | 0.27 | 2.79 | -25.06 | 88.52 | 0.95 | 182.81 | 0.3078 | -1004.5 | -658.3 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -29.91 | 88.32 | 0.75 | 181.68 | 0.3873 | -831.0 | -671.5 | |
| 0.00 | 2.85 | 0.00 | 1.48 | -25.12 | 88.16 | 0.59 | 181.73 | 0.3086 | -889.0 | -724.4 | |
| 1.82 | 321.47 | 0.95 | 168.89 | -26.81 | 88.13 | 0.56 | 181.49 | 0.3367 | -1174.4 | -415.4 | |
| 3.54 | -49.00 | 1.87 | -49.00 | -27.00 | 88.07 | 0.50 | 181.30 | 0.3398 | -1215.1 | 999999 | |
| 14.87 | -49.00 | 7.85 | -49.00 | -27.45 | 88.03 | 0.46 | 181.19 | 0.3471 | -1164.6 | 999999 | |
| 0.00 | 5.53 | 0.00 | 2.93 | -28.21 | 87.97 | 0.40 | 180.98 | 0.3595 | -257.0 | -199.5 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -25.40 | 87.93 | 0.36 | 181.04 | 0.3132 | -780.0 | -530.1 | |
| 6.48 | -49.00 | 3.41 | -49.00 | -27.07 | 87.73 | 0.16 | 180.42 | 0.3407 | 922.1 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -27.99 | 87.73 | 0.16 | 180.40 | 0.3558 | -974.0 | -805.8 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -27.92 | 87.46 | -0.11 | 179.73 | 0.3548 | -984.0 | -790.3 | |
| 0.00 | 3.37 | 0.00 | 1.79 | -27.99 | 87.19 | -0.38 | 179.06 | 0.3559 | -868.0 | -713.9 | |
| 2.33 | -49.00 | 1.23 | -49.00 | -26.91 | 87.07 | -0.51 | 178.66 | 0.3382 | -875.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -28.37 | 86.75 | -0.82 | 178.00 | 0.3623 | -734.0 | -569.8 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -28.49 | 86.48 | -1.09 | 177.36 | 0.3645 | -761.0 | -759.1 | |
| 41.06 | -49.00 | 21.55 | -49.00 | -26.53 | 86.34 | -1.23 | 176.66 | 0.3324 | -1477.8 | 999999 | |
| 2.59 | 7.00 | 1.38 | 3.72 | -28.56 | 85.91 | -1.67 | 175.98 | 0.3661 | -893.2 | -707.1 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -28.46 | 85.64 | -1.93 | 175.31 | 0.3648 | -641.0 | -474.7 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -28.27 | 85.44 | -2.13 | 174.78 | 0.3620 | -711.0 | -644.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -25.49 | 85.49 | -2.08 | 174.03 | 0.3163 | -784.0 | -507.2 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -25.74 | 85.32 | -2.25 | 173.65 | 0.3208 | -1020.0 | -807.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -26.21 | 85.01 | -2.56 | 172.98 | 0.3291 | -834.0 | -760.7 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -26.27 | 84.78 | -2.79 | 172.38 | 0.3306 | -876.0 | -653.5 | |
| 0.00 | 1.56 | 0.00 | 0.82 | -26.55 | 84.64 | -2.93 | 172.13 | 0.3355 | -1005.0 | -865.1 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -27.50 | 84.31 | -3.26 | 171.72 | 0.3516 | 628.0 | 371.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
