SDO HMI 2014-03-04 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.13 | 87.81 | 19.42 | 112.78 | -1.72 | 154.33 | 67.30 | 271.16 | 0.9239 | -463.0 | -86.0 | |
|
previous
or next observation for the same group /

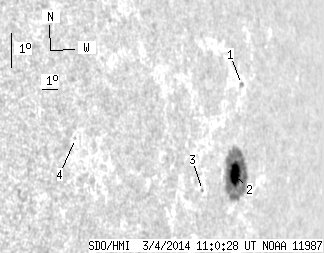

back to the solar disc SDO HMI 2014-03-04 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 2.76 | 0.98 | 154.85 | 67.82 | 273.98 | 0.9298 | -446.0 | -282.7 | |
| 15.13 | 83.75 | 19.42 | 107.90 | -1.78 | 154.41 | 67.38 | 271.09 | 0.9245 | -516.3 | -80.3 | |
| 0.00 | 1.21 | 0.00 | 1.41 | -2.53 | 152.01 | 64.99 | 270.59 | 0.9072 | -365.0 | -288.1 | |
| 0.00 | 0.78 | 0.00 | 0.71 | -1.85 | 144.09 | 57.06 | 272.49 | 0.8418 | 458.0 | 368.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
