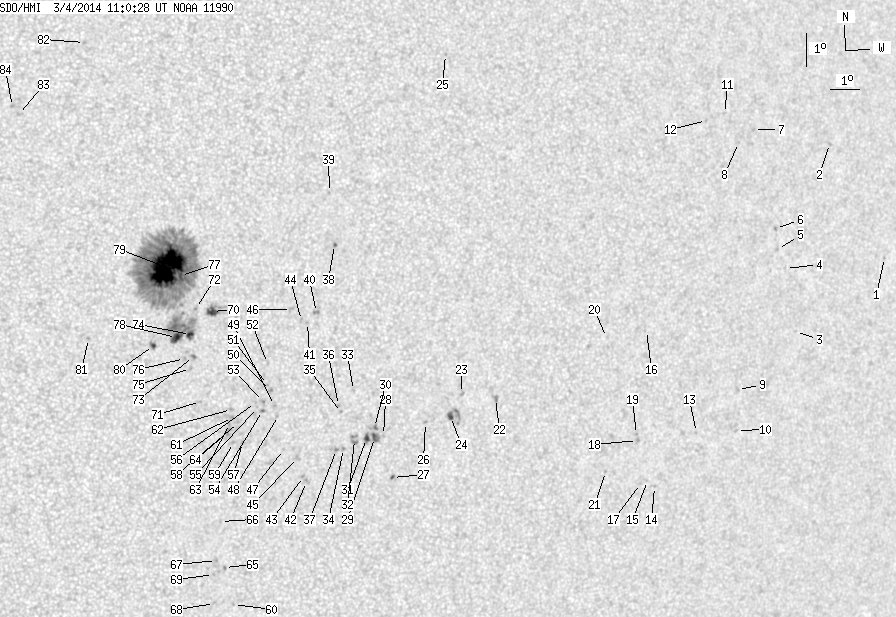

SDO HMI 2014-03-04 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.24 | 588.16 | 44.24 | 315.91 | -13.17 | 108.79 | 21.77 | 252.66 | 0.3792 | 201.9 | 227.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.73 | -10.27 | 132.62 | 45.60 | 262.69 | 0.7111 | 627.0 | 523.5 | |
| 0.00 | 1.47 | 0.00 | 0.99 | -7.10 | 129.84 | 42.81 | 267.38 | 0.6775 | 632.0 | 551.1 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -12.77 | 129.34 | 42.32 | 258.93 | 0.6714 | 574.0 | 464.4 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -10.94 | 128.59 | 41.57 | 261.64 | 0.6608 | 534.0 | 461.2 | |
| 0.00 | 1.21 | 0.00 | 0.79 | -10.41 | 128.18 | 41.16 | 262.44 | 0.6553 | 647.0 | 500.1 | |
| 0.00 | 1.56 | 0.00 | 1.01 | -9.79 | 128.00 | 40.98 | 263.38 | 0.6529 | 822.0 | 688.7 | |
| 0.00 | 1.30 | 0.00 | 0.83 | -6.93 | 126.78 | 39.76 | 267.87 | 0.6376 | 702.0 | 599.9 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -7.36 | 126.24 | 39.22 | 267.23 | 0.6301 | 660.0 | 589.0 | |
| 0.00 | 2.16 | 0.00 | 1.40 | -14.68 | 127.38 | 40.36 | 255.79 | 0.6485 | 442.0 | 351.7 | |
| 0.00 | 1.21 | 0.00 | 0.79 | -15.90 | 127.62 | 40.60 | 253.97 | 0.6535 | 618.0 | 510.4 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -6.54 | 125.62 | 38.60 | 268.59 | 0.6222 | 687.0 | 576.0 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -6.80 | 124.96 | 37.93 | 268.23 | 0.6130 | 664.0 | 497.2 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -16.09 | 126.05 | 39.03 | 253.36 | 0.6338 | 581.0 | 521.3 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -17.82 | 124.80 | 37.78 | 250.30 | 0.6217 | 587.0 | 511.8 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -17.66 | 124.48 | 37.46 | 250.45 | 0.6173 | 628.0 | 523.0 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -13.19 | 123.52 | 36.50 | 257.55 | 0.5953 | 432.0 | 419.5 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -17.77 | 124.24 | 37.21 | 250.20 | 0.6144 | 663.0 | 532.8 | |
| 0.00 | 2.07 | 0.00 | 1.29 | -16.49 | 123.82 | 36.80 | 252.15 | 0.6057 | 877.0 | 659.9 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -16.32 | 123.74 | 36.72 | 252.42 | 0.6042 | 784.0 | 574.5 | |
| 0.00 | 0.43 | 0.00 | 0.26 | -13.51 | 122.06 | 35.04 | 256.75 | 0.5757 | 490.0 | 304.2 | |
| 0.00 | 1.12 | 0.00 | 0.69 | -17.51 | 122.81 | 35.79 | 250.18 | 0.5951 | 608.0 | 434.0 | |
| 0.00 | 3.03 | 0.00 | 1.76 | -15.59 | 118.33 | 31.31 | 251.96 | 0.5285 | 933.0 | 669.6 | |
| 0.00 | 2.51 | 0.00 | 1.44 | -15.52 | 117.10 | 30.08 | 251.62 | 0.5109 | 804.0 | 693.0 | |
| 2.16 | 12.27 | 1.24 | 7.06 | -16.23 | 116.82 | 29.80 | 250.14 | 0.5094 | 1028.2 | 766.8 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -5.47 | 115.51 | 28.48 | 271.88 | 0.4770 | 633.0 | 613.3 | |
| 0.00 | 1.47 | 0.00 | 0.84 | -16.46 | 115.97 | 28.95 | 249.30 | 0.4982 | 793.0 | 526.4 | |
| 0.61 | 1.99 | 0.34 | 1.13 | -18.18 | 115.09 | 28.07 | 245.47 | 0.4933 | 838.1 | 673.6 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -16.93 | 114.56 | 27.54 | 247.62 | 0.4803 | -473.0 | -418.3 | |
| 1.90 | 10.89 | 1.07 | 6.12 | -17.01 | 114.26 | 27.24 | 247.29 | 0.4764 | -812.3 | -627.0 | |
| 0.00 | 3.37 | 0.00 | 1.89 | -16.71 | 114.21 | 27.19 | 247.87 | 0.4744 | -847.0 | -648.0 | |
| 1.90 | -29.00 | 1.07 | -29.00 | -17.06 | 113.99 | 26.96 | 247.04 | 0.4728 | -938.4 | 999999 | |
| 0.00 | 5.96 | 0.00 | 3.34 | -17.11 | 113.58 | 26.55 | 246.68 | 0.4672 | -689.0 | -782.0 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -15.64 | 113.33 | 26.31 | 249.60 | 0.4572 | -690.0 | -525.6 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -17.40 | 113.24 | 26.22 | 245.87 | 0.4638 | -806.0 | -672.7 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -16.32 | 113.01 | 25.99 | 247.97 | 0.4555 | -803.0 | -604.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -16.12 | 112.88 | 25.86 | 248.32 | 0.4527 | -742.0 | -624.7 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -17.44 | 113.00 | 25.98 | 245.62 | 0.4607 | -1014.0 | -800.7 | |
| 0.35 | 1.38 | 0.19 | 0.76 | -11.32 | 112.19 | 25.17 | 258.75 | 0.4270 | 898.2 | 800.2 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -9.78 | 111.89 | 24.87 | 262.31 | 0.4200 | 861.0 | 679.6 | |
| 0.00 | 2.94 | 0.00 | 1.61 | -13.38 | 111.79 | 24.77 | 253.82 | 0.4262 | -847.0 | -717.9 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -13.69 | 111.52 | 24.50 | 252.97 | 0.4232 | -711.0 | -563.6 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -18.46 | 112.12 | 25.10 | 242.89 | 0.4539 | -693.0 | -648.1 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -18.31 | 111.99 | 24.97 | 243.10 | 0.4513 | -869.0 | -690.4 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -13.64 | 111.32 | 24.29 | 252.98 | 0.4199 | -682.0 | -635.0 | |
| 0.00 | 3.28 | 0.00 | 1.81 | -17.75 | 111.70 | 24.68 | 244.05 | 0.4441 | -827.0 | -575.7 | |
| 0.00 | 2.16 | 0.00 | 1.17 | -13.33 | 110.95 | 23.92 | 253.53 | 0.4133 | -662.0 | -586.1 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -17.53 | 111.19 | 24.17 | 244.13 | 0.4357 | -664.0 | -498.5 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -16.52 | 110.88 | 23.86 | 246.12 | 0.4259 | -512.0 | -523.2 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -16.23 | 110.71 | 23.69 | 246.66 | 0.4219 | -717.0 | -498.5 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -15.78 | 110.52 | 23.50 | 247.53 | 0.4170 | -826.0 | -734.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -15.61 | 110.40 | 23.37 | 247.85 | 0.4143 | -849.0 | -745.8 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -14.98 | 110.32 | 23.30 | 249.26 | 0.4103 | -562.0 | -486.6 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -16.12 | 110.33 | 23.30 | 246.61 | 0.4158 | -1029.0 | -885.8 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -16.40 | 110.33 | 23.30 | 245.99 | 0.4172 | -946.0 | -845.6 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -16.31 | 110.15 | 23.12 | 246.04 | 0.4142 | -888.0 | -704.0 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -16.17 | 110.06 | 23.04 | 246.31 | 0.4122 | -825.0 | -678.9 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -17.39 | 109.78 | 22.75 | 243.30 | 0.4149 | -882.0 | -765.1 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -16.79 | 109.57 | 22.54 | 244.47 | 0.4085 | -1002.0 | -835.6 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -17.40 | 109.48 | 22.45 | 243.01 | 0.4107 | -865.0 | -679.8 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -22.32 | 110.22 | 23.20 | 233.49 | 0.4552 | -653.0 | -524.0 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -16.65 | 109.35 | 22.32 | 244.62 | 0.4045 | -986.0 | -804.3 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -16.41 | 109.29 | 22.26 | 245.12 | 0.4023 | -1070.0 | -708.6 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -16.84 | 109.27 | 22.25 | 244.12 | 0.4045 | -1031.0 | -824.4 | |
| 0.00 | 3.20 | 0.00 | 1.73 | -17.08 | 109.27 | 22.24 | 243.56 | 0.4058 | -970.0 | -877.2 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -21.21 | 109.72 | 22.69 | 235.15 | 0.4402 | -818.0 | -698.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -19.81 | 109.37 | 22.34 | 237.64 | 0.4252 | -717.0 | -633.9 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -21.00 | 109.41 | 22.39 | 235.23 | 0.4347 | -772.0 | -661.8 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -22.32 | 109.56 | 22.53 | 232.79 | 0.4470 | -711.0 | -624.7 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -21.44 | 109.38 | 22.35 | 234.32 | 0.4376 | -800.0 | -707.0 | |
| 4.32 | 12.27 | 2.31 | 6.55 | -13.51 | 108.35 | 21.32 | 251.60 | 0.3743 | -895.5 | -514.1 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -16.22 | 108.23 | 21.20 | 244.68 | 0.3859 | -729.0 | -577.2 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -13.44 | 107.78 | 20.76 | 251.39 | 0.3654 | -434.0 | -396.1 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -14.88 | 107.86 | 20.83 | 247.70 | 0.3731 | -890.0 | -719.7 | |
| 2.68 | 443.91 | 1.43 | 234.31 | -14.23 | 107.69 | 20.67 | 249.26 | 0.3675 | -619.5 | 383.6 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -15.24 | 107.79 | 20.77 | 246.72 | 0.3741 | -791.0 | -589.8 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -14.95 | 107.57 | 20.54 | 247.27 | 0.3692 | -890.0 | -745.5 | |
| 1.47 | -74.00 | 0.78 | -74.00 | -12.48 | 107.21 | 20.19 | 253.64 | 0.3528 | 737.9 | 999999 | |
| 4.67 | -74.00 | 2.48 | -74.00 | -14.33 | 107.24 | 20.22 | 248.62 | 0.3612 | -988.7 | 999999 | |
| 61.88 | -74.00 | 32.64 | -74.00 | -12.26 | 106.74 | 19.72 | 253.96 | 0.3446 | 1417.8 | 999999 | |
| 1.30 | 3.03 | 0.69 | 1.60 | -14.60 | 106.52 | 19.49 | 247.28 | 0.3517 | -850.9 | -507.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -14.47 | 104.40 | 17.38 | 245.54 | 0.3191 | 954.0 | 700.2 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -5.67 | 103.80 | 16.78 | 274.38 | 0.2894 | -862.0 | -619.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -7.88 | 101.82 | 14.80 | 266.54 | 0.2546 | -735.0 | -535.7 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -7.64 | 101.63 | 14.60 | 267.44 | 0.2513 | -834.0 | -708.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
