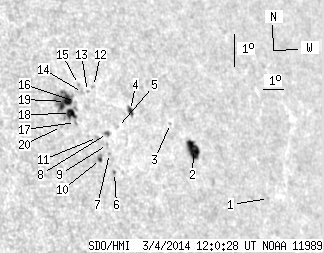

SDO HMI 2014-03-04 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.59 | 79.21 | 24.14 | 61.36 | 7.87 | 134.52 | 48.04 | 286.61 | 0.7704 | 154.7 | 342.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 1.02 | 6.29 | 141.93 | 55.45 | 282.38 | 0.8403 | -391.0 | -309.8 | |
| 12.70 | 16.07 | 10.63 | 13.45 | 7.42 | 138.30 | 51.83 | 284.75 | 0.8084 | -696.2 | -373.7 | |
| 0.00 | 1.12 | 0.00 | 0.92 | 8.11 | 137.31 | 50.84 | 285.90 | 0.8004 | -467.0 | -327.1 | |
| 2.16 | 4.23 | 1.71 | 3.35 | 8.33 | 135.48 | 49.00 | 286.80 | 0.7823 | 477.9 | 297.1 | |
| 0.00 | 1.12 | 0.00 | 0.87 | 7.74 | 134.79 | 48.31 | 286.32 | 0.7733 | 440.0 | 328.5 | |
| 0.00 | 1.12 | 0.00 | 0.86 | 6.34 | 134.45 | 47.98 | 284.67 | 0.7655 | -611.0 | -546.9 | |
| 0.00 | 0.95 | 0.00 | 0.73 | 6.90 | 134.30 | 47.83 | 285.43 | 0.7656 | 382.0 | 274.5 | |
| 0.69 | 2.25 | 0.53 | 1.73 | 7.51 | 134.30 | 47.82 | 286.20 | 0.7674 | 666.0 | 566.0 | |
| 0.00 | 0.78 | 0.00 | 0.60 | 7.17 | 134.25 | 47.77 | 285.79 | 0.7658 | 531.0 | 432.1 | |
| 1.04 | 3.02 | 0.79 | 2.30 | 6.68 | 133.87 | 47.39 | 285.30 | 0.7602 | -585.6 | -446.6 | |
| 0.00 | 1.81 | 0.00 | 1.38 | 7.35 | 133.83 | 47.35 | 286.16 | 0.7618 | 675.0 | 465.6 | |
| 0.00 | 1.38 | 0.00 | 1.06 | 8.92 | 133.90 | 47.42 | 288.11 | 0.7677 | 511.0 | 413.6 | |
| 0.00 | 0.69 | 0.00 | 0.53 | 8.74 | 133.60 | 47.13 | 288.00 | 0.7639 | 547.0 | 543.5 | |
| 0.00 | 1.12 | 0.00 | 0.85 | 8.68 | 133.37 | 46.90 | 288.02 | 0.7613 | 618.0 | 460.1 | |
| 0.00 | 0.95 | 0.00 | 0.72 | 8.92 | 133.23 | 46.76 | 288.37 | 0.7606 | 493.0 | 437.5 | |
| 0.00 | 0.95 | 0.00 | 0.72 | 8.37 | 133.01 | 46.54 | 287.77 | 0.7564 | 367.0 | 319.3 | |
| 0.00 | 1.21 | 0.00 | 0.91 | 7.72 | 132.91 | 46.44 | 286.98 | 0.7531 | 525.0 | 456.4 | |
| 5.44 | 38.37 | 4.08 | 28.66 | 7.98 | 132.73 | 46.26 | 287.38 | 0.7520 | 715.2 | 582.7 | |
| 8.56 | -18.00 | 6.40 | -18.00 | 8.33 | 132.57 | 46.09 | 287.89 | 0.7514 | 859.8 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.70 | 7.54 | 132.28 | 45.80 | 286.99 | 0.7455 | 554.0 | 465.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
