SDO HMI 2014-03-04 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.32 | 0.00 | 2.68 | 19.08 | 112.55 | 26.62 | 315.49 | 0.6056 | -224.5 | -212.4 | |
|
previous
or next observation for the same group /

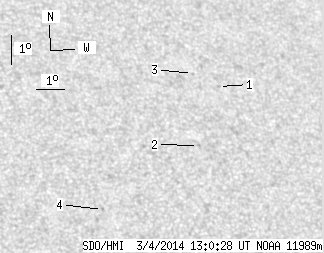

back to the solar disc SDO HMI 2014-03-04 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.61 | 20.61 | 114.24 | 28.31 | 315.58 | 0.6365 | -432.0 | -417.8 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 18.59 | 113.14 | 27.21 | 314.26 | 0.6074 | -599.0 | -537.1 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 21.00 | 113.38 | 27.45 | 316.89 | 0.6321 | -522.0 | -419.4 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 16.29 | 109.48 | 23.55 | 315.42 | 0.5485 | 655.0 | 549.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
